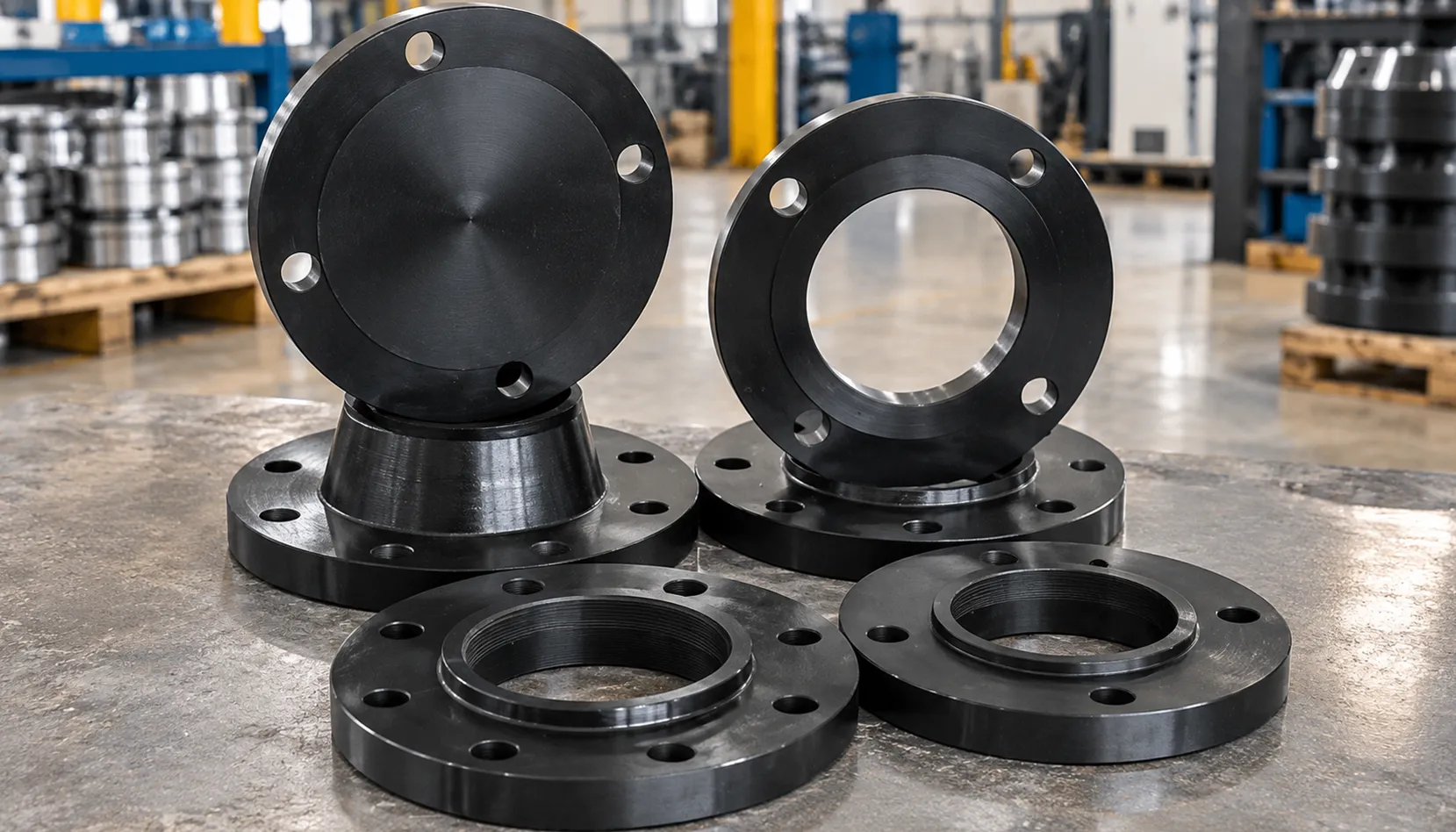

Ganpat Metal manufactures and supplies High Yield Carbon Steel Flanges as per ASTM A694 / ASME SA694 for high-pressure piping, transmission lines and industrial equipment connections. The range covers F42, F46, F52, F60, F65 and F70 grades in sizes from 1/2" to 48".

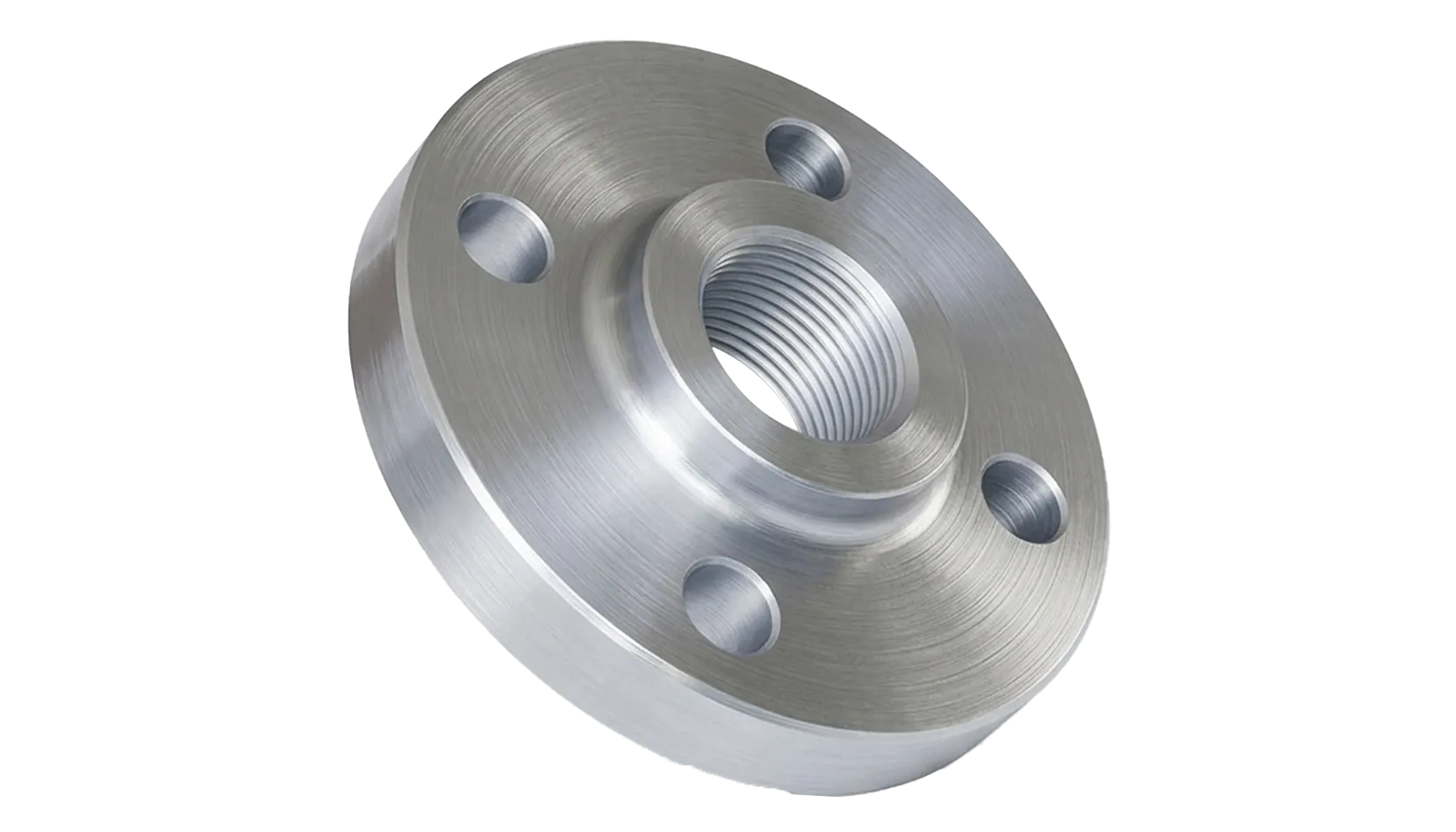

These flanges are supplied in Weld Neck, Slip-On, Blind, Socket Weld, Threaded, Lap Joint, RTJ and other configurations, with pressure classes from 150# to 2500# and FF, RF and RTJ face options.
| Specification | Details |
|---|---|
| Product | High Yield Carbon Steel Flanges |
| Material Specification | ASTM A694 / ASME SA694 |
| Available Grades | F42, F46, F52, F60, F65, F70 |
| Size Range | 1/2" to 48" |
| ASME Pressure Classes | 150#, 300#, 400#, 600#, 900#, 1500#, 2500# |
| PN Ratings | PN6, PN10, PN16, PN25, PN40, PN64 |
| Dimensional Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS10, EN1092, DIN |
| Face Types | FF, RF, RTJ |

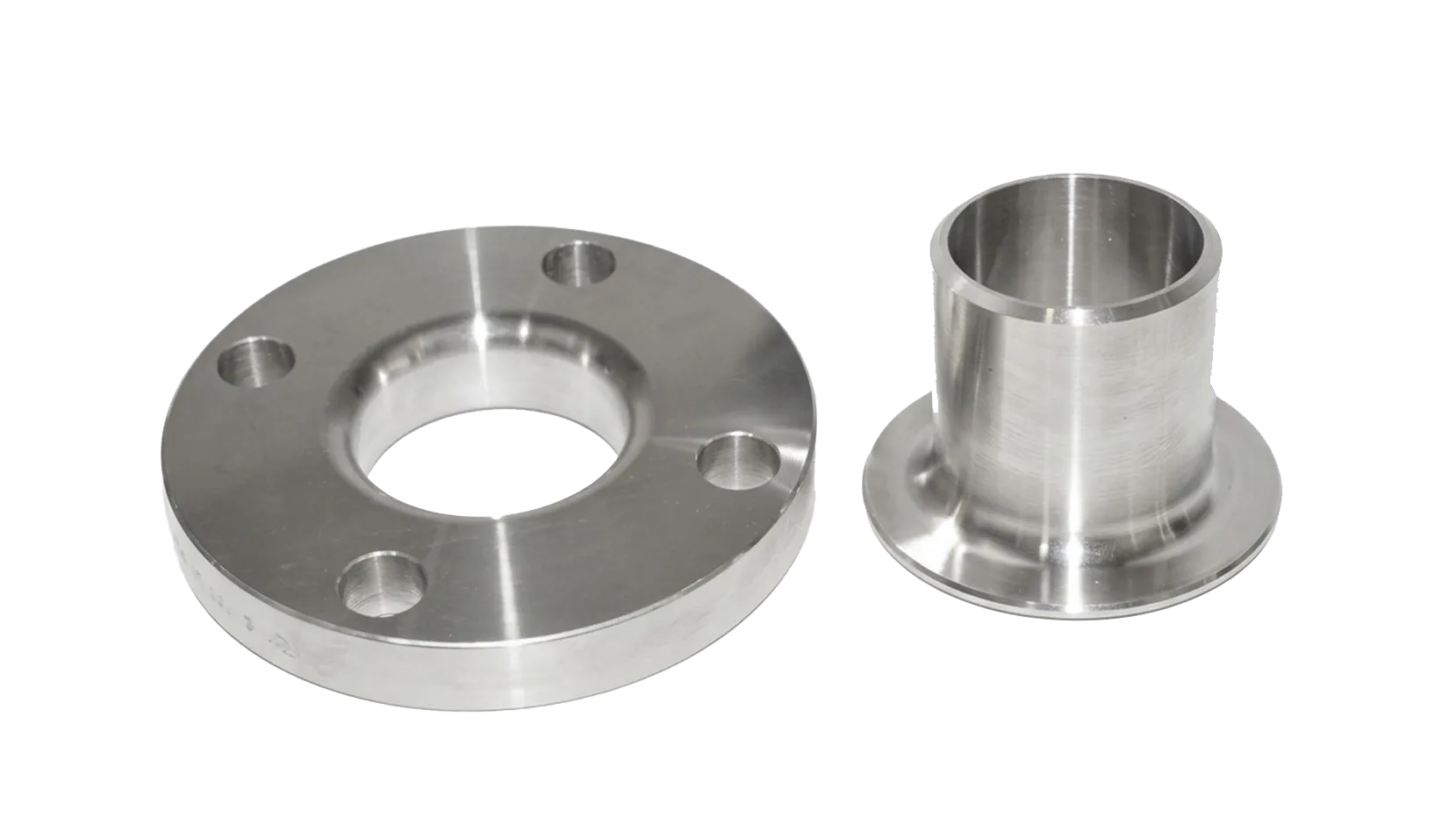

| Flange Types | Weld Neck, Slip-On, Blind, Socket Weld, Lap Joint, Threaded, RTJ and others |
| Manufacturing Form | Forged and machined |
| Inspection | Chemical, mechanical and dimensional inspection |
| Documentation | MTC and EN 10204 certification |
For grade-specific requirements, the range includes ASTM A694 F42 flanges, ASTM A694 F46 flanges and ASTM A694 F52 flanges, along with F60, F65 and F70 grades for higher specified strength levels.
ASTM A694 covers forged flanges and related components in different high-yield strength grades. Ganpat Metal supplies ASTM A694 F42, F46, F52, F60, F65 and F70 flanges according to the grade specified for the piping or transmission project.
| Grade | Minimum Yield Strength | Minimum Tensile Strength |
|---|---|---|
| F42 | 42 ksi | 60 ksi |
| F46 | 46 ksi | 63 ksi |
| F52 | 52 ksi | 66 ksi |
| F60 | 60 ksi | 75 ksi |
| F65 | 65 ksi | 77 ksi |
| F70 | 70 ksi | 82 ksi |
ASTM A694 F42 flanges are supplied for projects specifying the F42 material grade and its corresponding minimum strength level. ASTM A694 F46 flanges and ASTM A694 F52 flanges provide higher specified yield-strength options within the A694 grade family.
For projects requiring higher strength levels, ASTM A694 F60 flanges, ASTM A694 F65 flanges and ASTM A694 F70 flanges can be supplied against the specified material grade, dimensions and pressure class.
The selected grade should correspond with the engineering specification, piping design and purchase order.
High Yield Carbon Steel Flanges can be manufactured according to several international dimensional standards. The selected standard determines the flange geometry, bolt arrangement, bore, thickness and other dimensional characteristics.
| Standard | Flange Types / Scope |
|---|---|

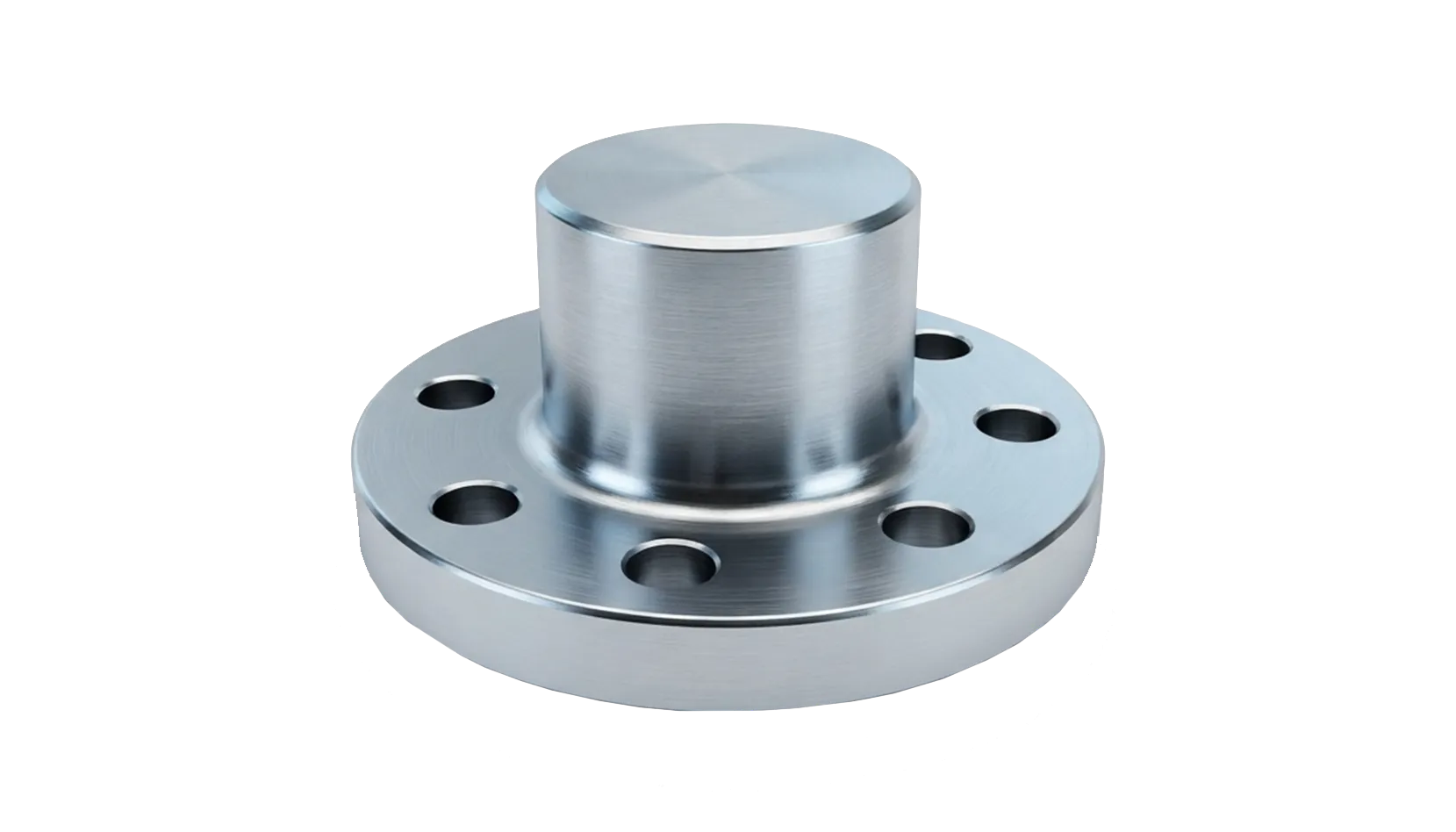

| ANSI/ASME B16.5 | Welding Neck, Slip-On, Blind, High Hub Blind, Socket Weld, Lap Joint, Threaded, RTJ |
| ASME B16.47 Series A & B | Large-diameter Welding Neck and Blind Flanges |
| ASME B16.48 | Line Blanks |

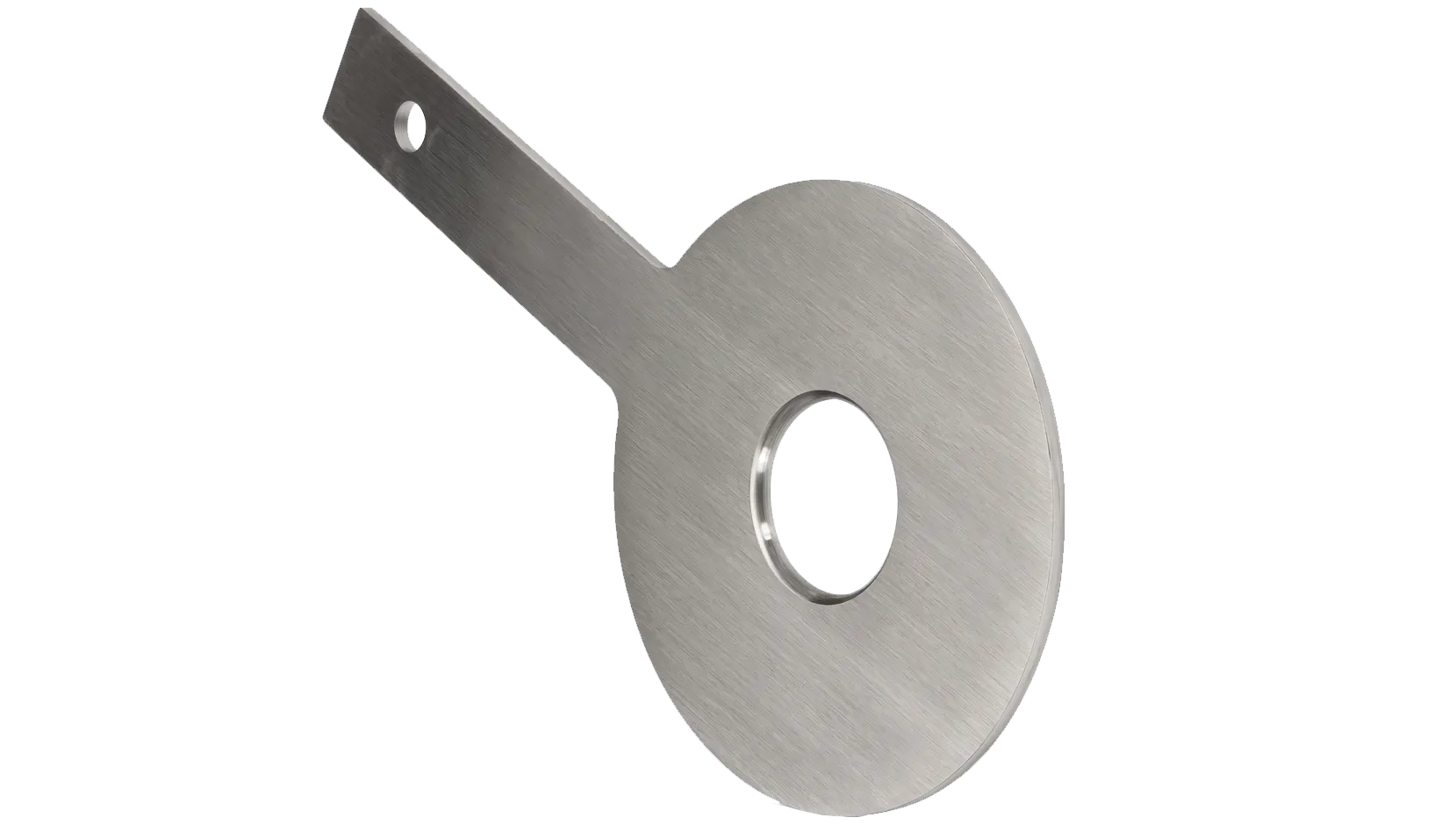

| ASME B16.36 | Orifice Flanges |

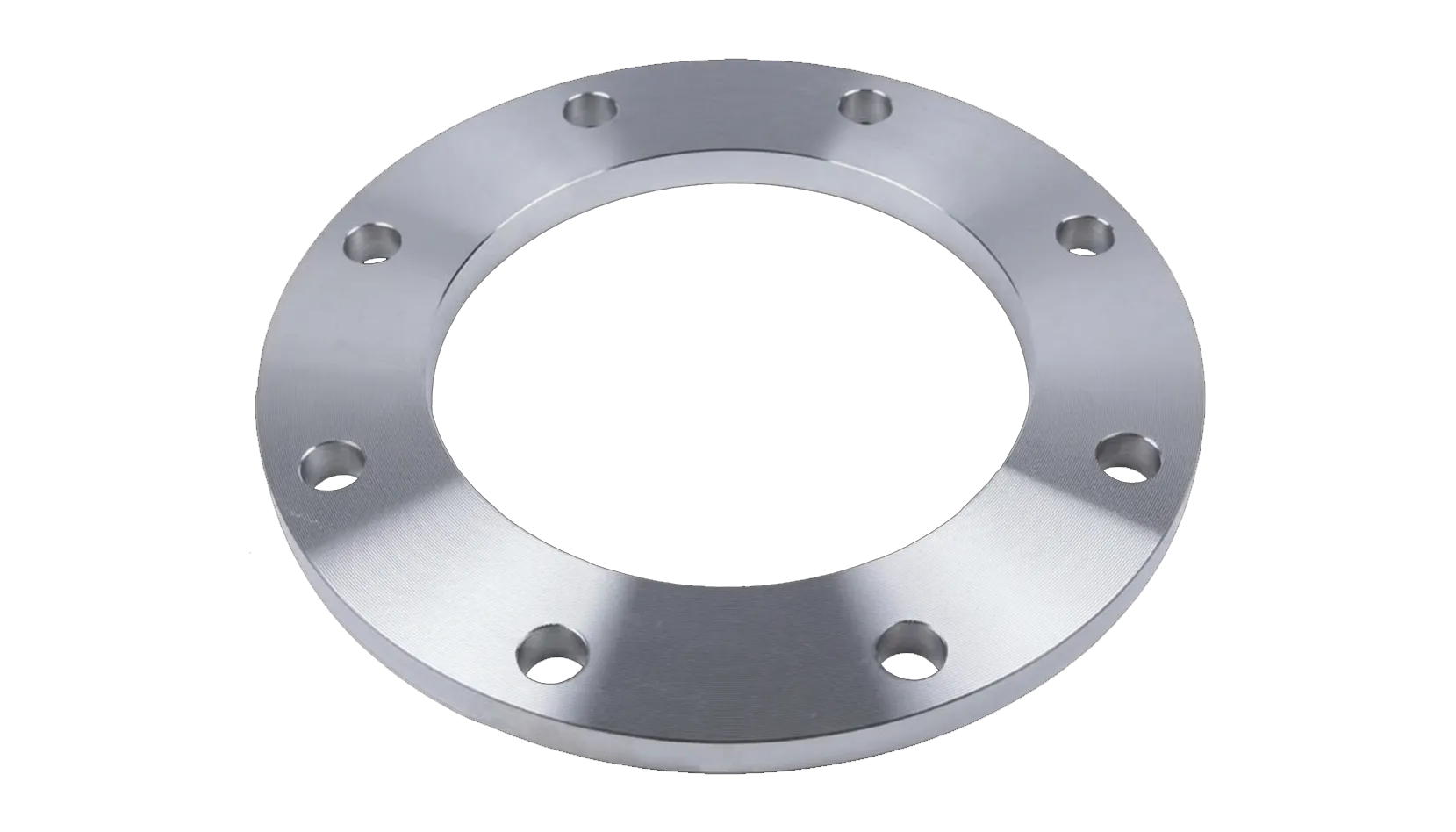

| BS 4504 | Welding Neck, Hubbed Slip-On, Hubbed Threaded, Plate, Loose Plate, Lapped and Blank Flanges |
| BS 1560 | Welding Neck, Socket Weld, Slip-On, Blind, Screwed Boss and Lapped Flanges |
| BS 10 | Welding Neck, Plate Slip-On, Screwed Boss, Slip-On Boss and Blind Flanges |
| EN 1092 | European flange dimensions |
| DIN | DIN-series flange dimensions |
The selected A694 grade, nominal size, flange type and pressure class determine the applicable dimensional configuration. Ganpat Metal supplies these configurations against the required project standard.
| Dimensional Standard | Pressure Classes / Ratings |
|---|---|
| ASME B16.5 | 150#, 300#, 400#, 600#, 900#, 1500#, 2500# |
| ASME B16.47 Series A & B | 75#, 150#, 300#, 400#, 600#, 900# |
| ASME B16.36 | 300#, 400#, 600#, 900#, 1500#, 2500# |
| BS 4504 Section 3.1 | PN2.5 to PN40 |
| BS 4504 Part 1 | PN2.5 to PN400 |
| BS 1560 | 150 to 2500 |
| DIN | PN6 to PN100 |
| Ganpat Metal Product Range | 150# to 2500# and PN6 to PN64 |
Pressure class is selected together with the flange standard, size, configuration and A694 material grade.
Ganpat Metal supplies F42, F46, F52, F60, F65 and F70 High Yield Carbon Steel Flanges in the applicable pressure and dimensional configurations.
| Face Type | Abbreviation | Configuration |
|---|---|---|
| Flat Face | FF | Flat gasket seating surface |
| Raised Face | RF | Raised gasket seating surface |
| Ring Type Joint | RTJ | Machined ring groove for RTJ gasket |
FF, RF and RTJ faces can be supplied with the applicable flange configurations and A694 grades. The face selection should match the mating flange and gasket arrangement.
| Parameter | Range |
|---|---|
| Nominal Size | 1/2" to 48" |
| Nominal Bore | 15 NB to 1200 NB |
| ASME Pressure Classes | 150# to 2500# |
| PN Ratings | PN6 to PN64 |
| Face Types | FF, RF, RTJ |
| Material Grades | F42, F46, F52, F60, F65, F70 |
| Dimensional Standards | ASME B16.5, B16.47, B16.48, BS, DIN, EN |
Actual flange dimensions depend on the nominal size, pressure class, flange type and selected dimensional standard. Ganpat Metal manufactures the required configuration against the specified A694 grade.
Flange weight depends on the finished geometry, flange type, size, pressure class and machining. The following details are required to estimate the weight.

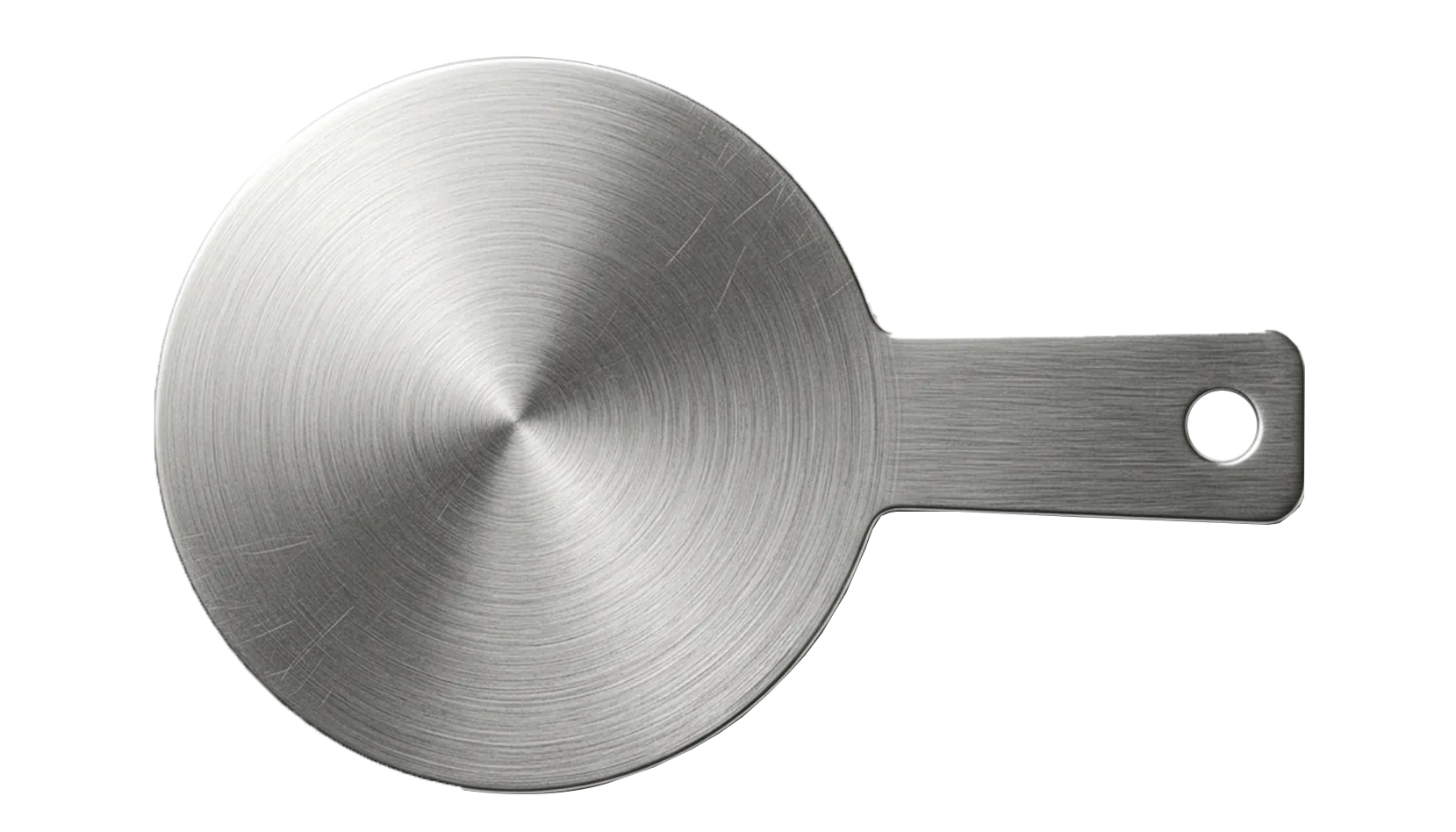

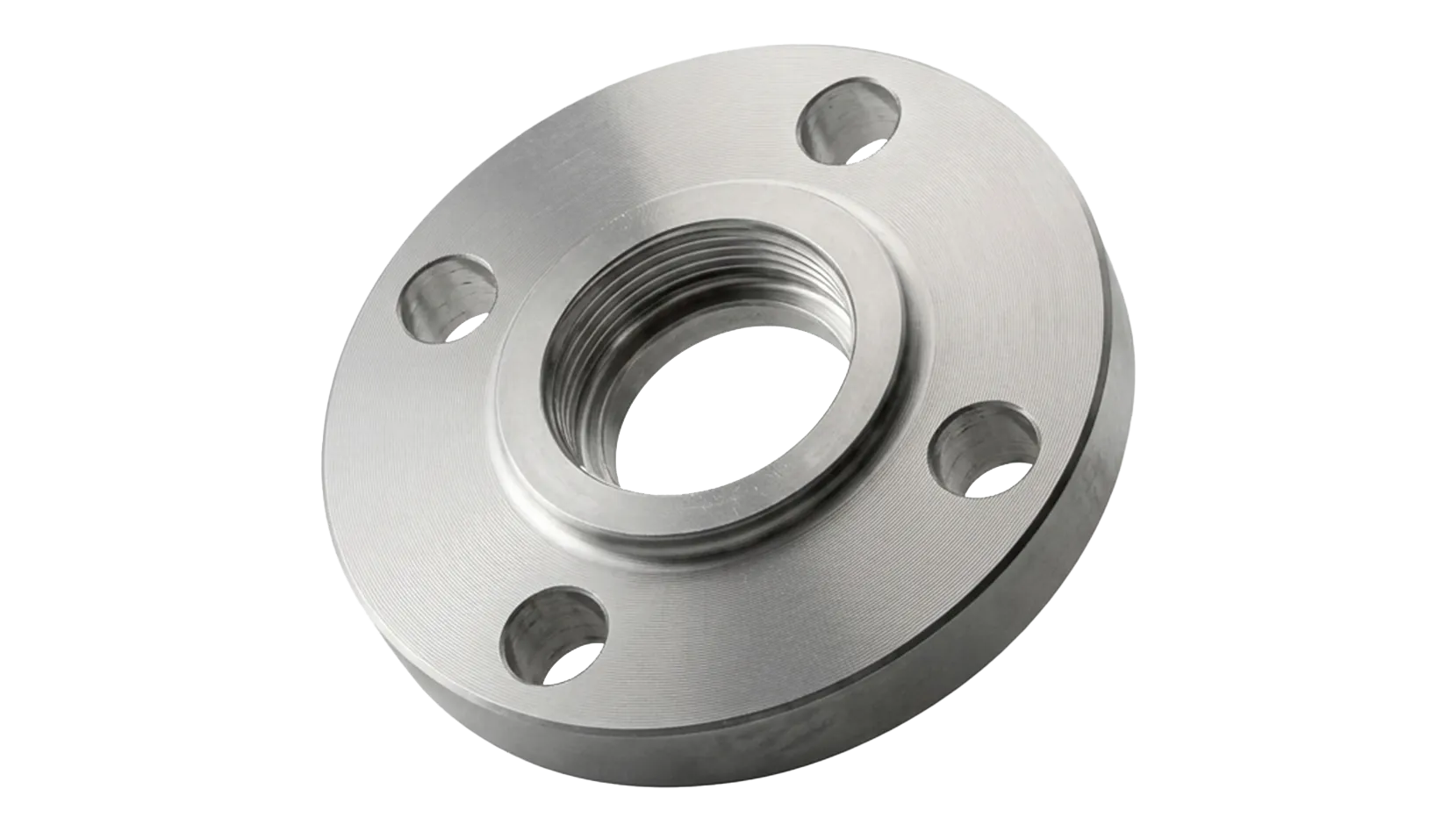

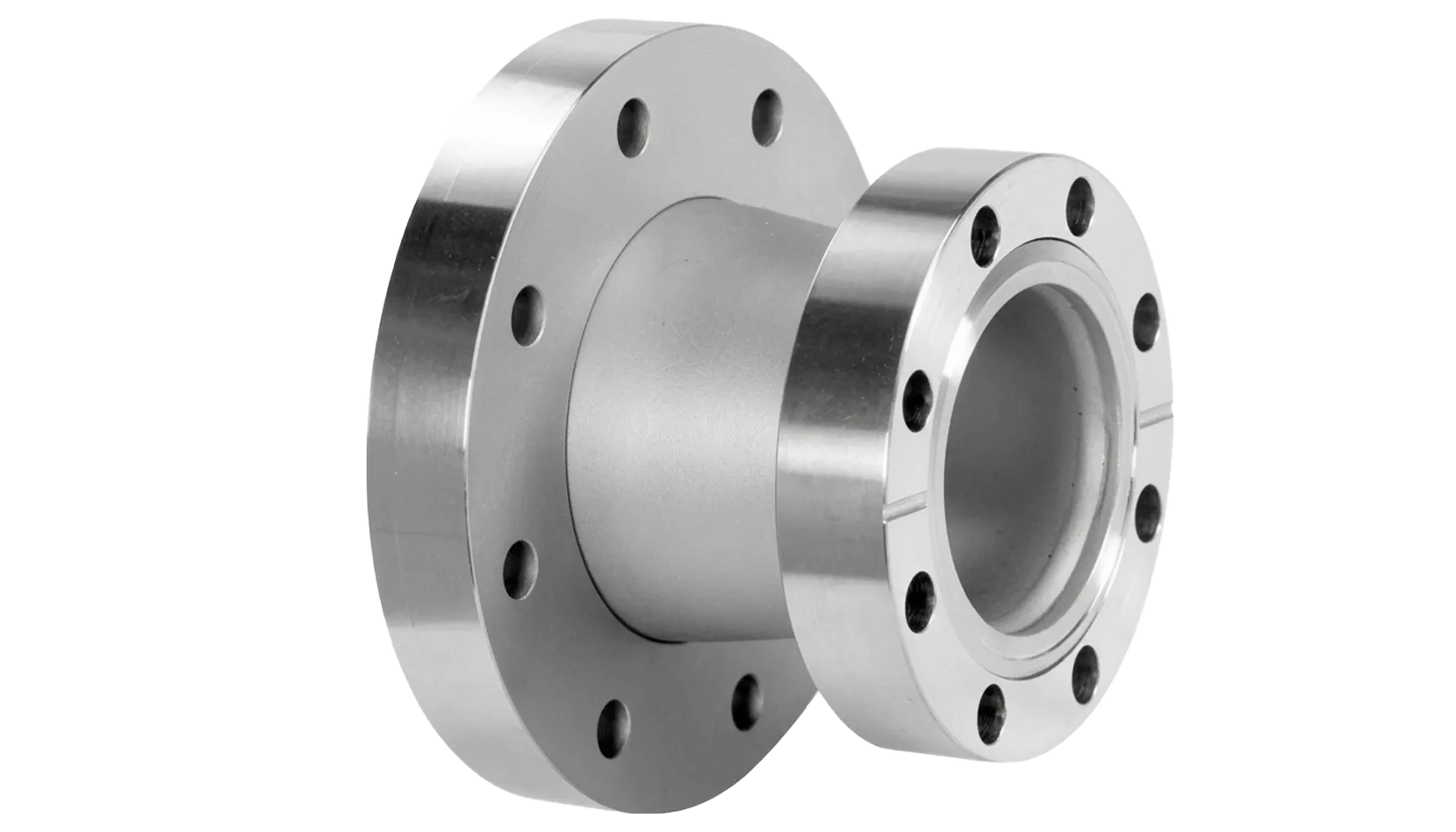

Ganpat Metal supplies High Yield Carbon Steel Flanges in configurations suited to different piping connections, equipment nozzles and pipeline assemblies.

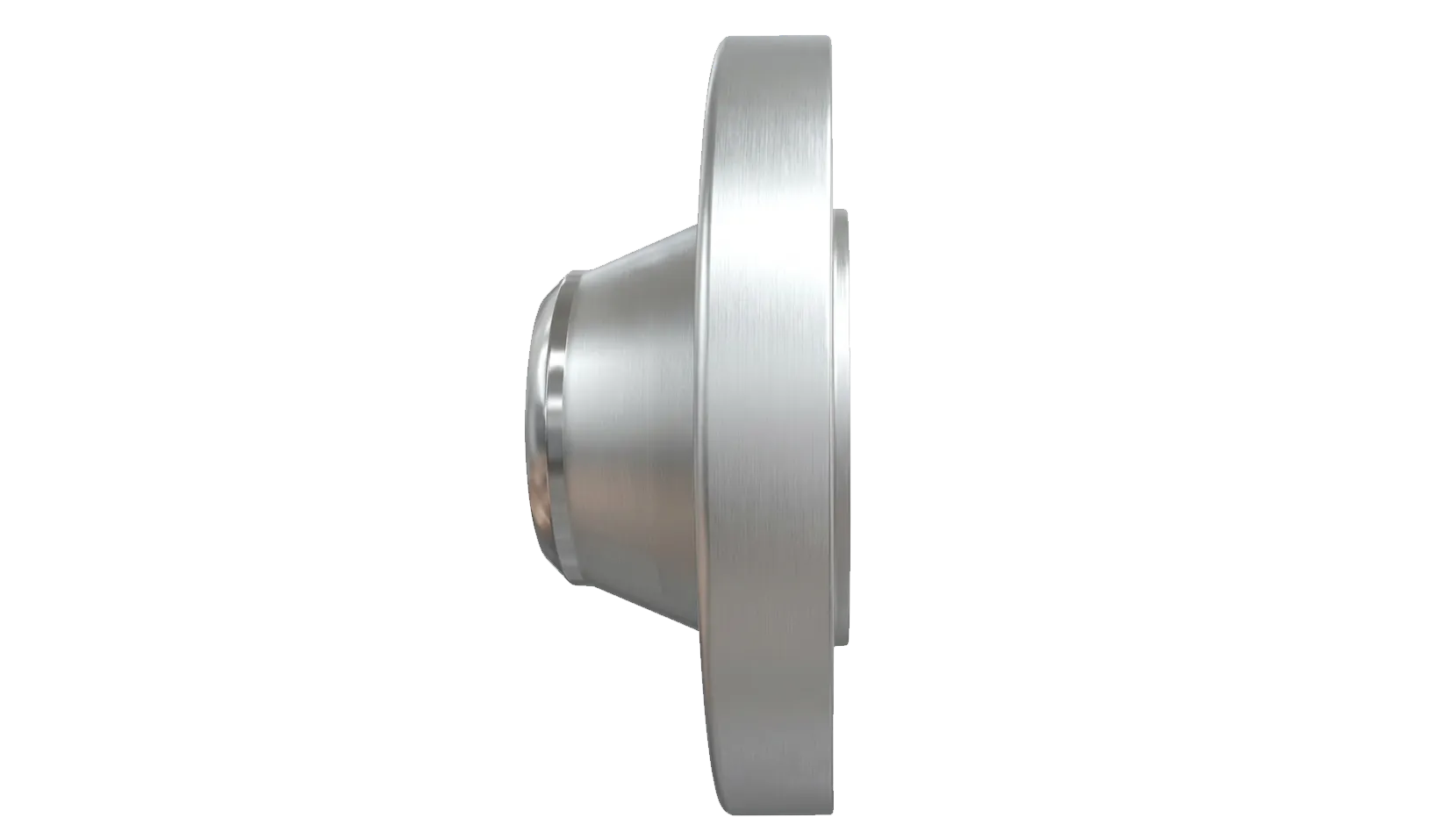

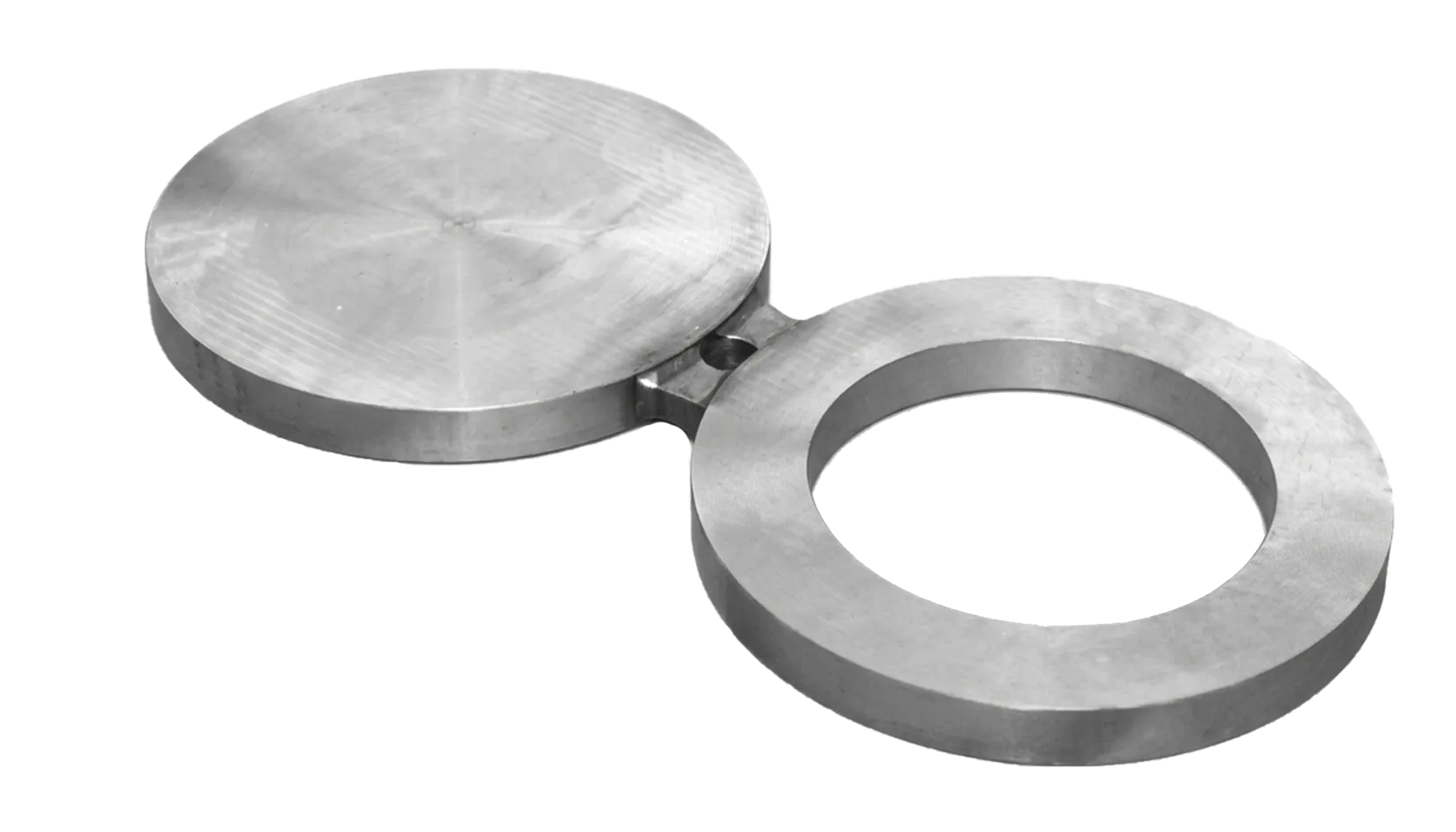

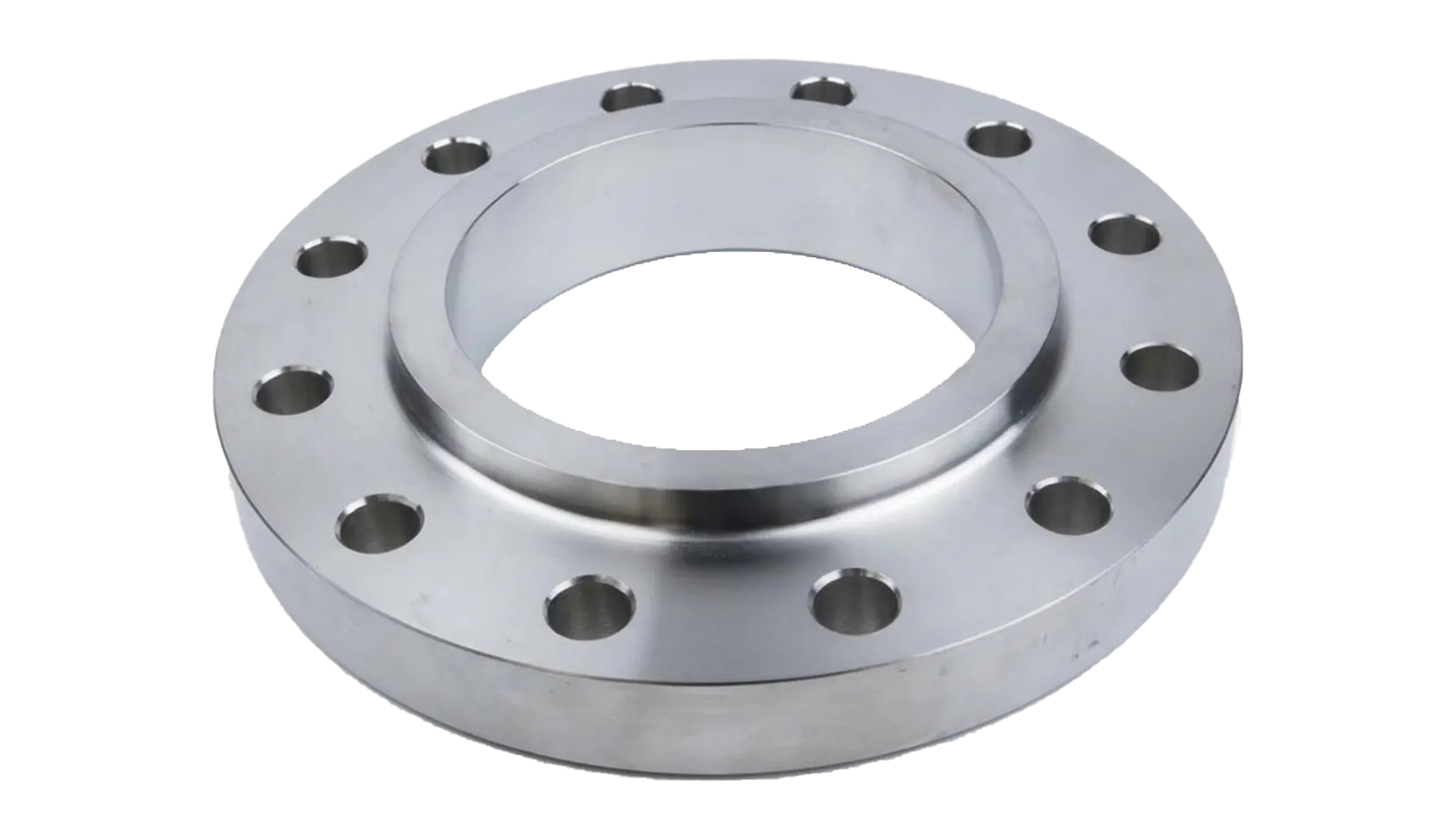

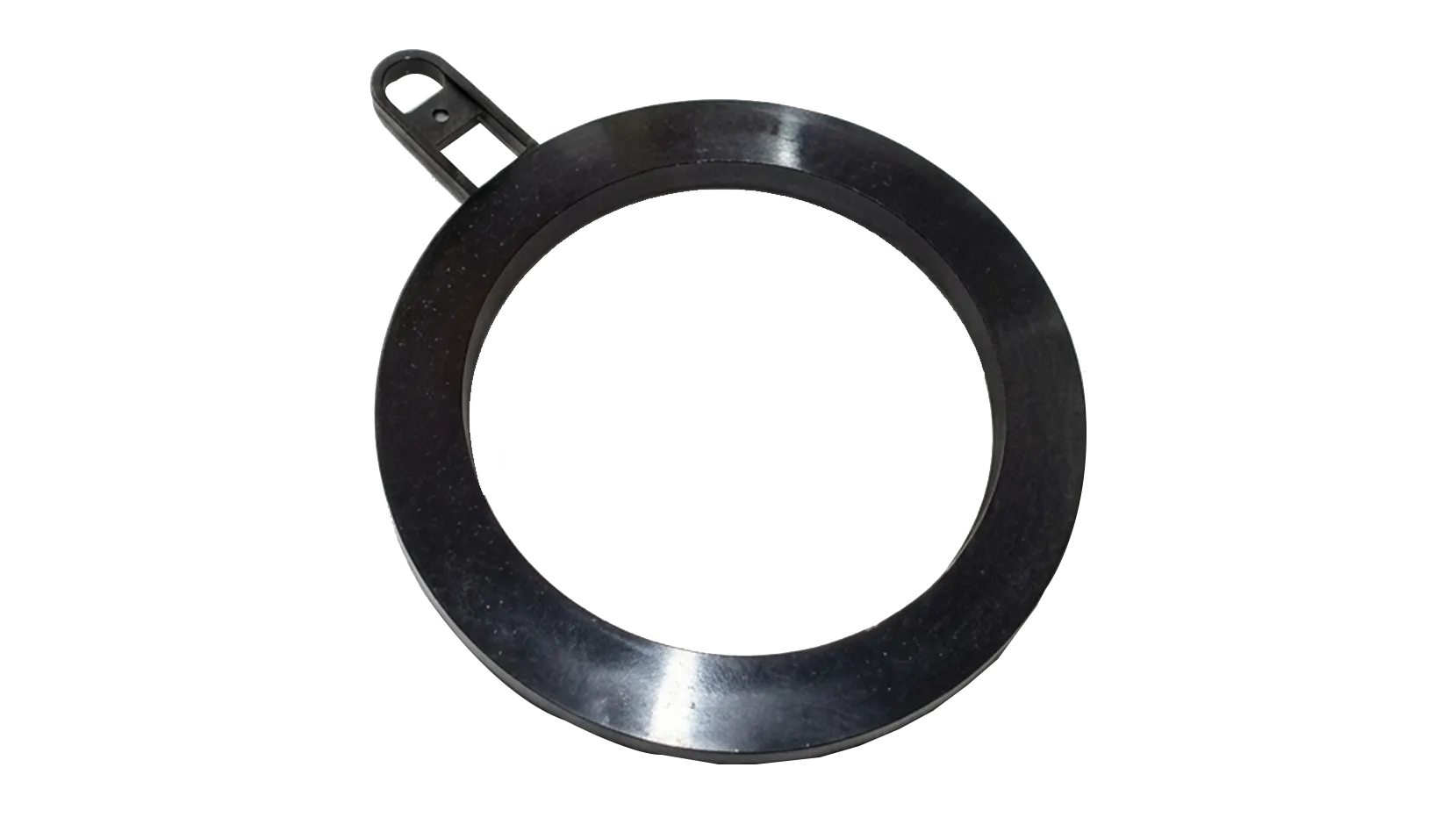

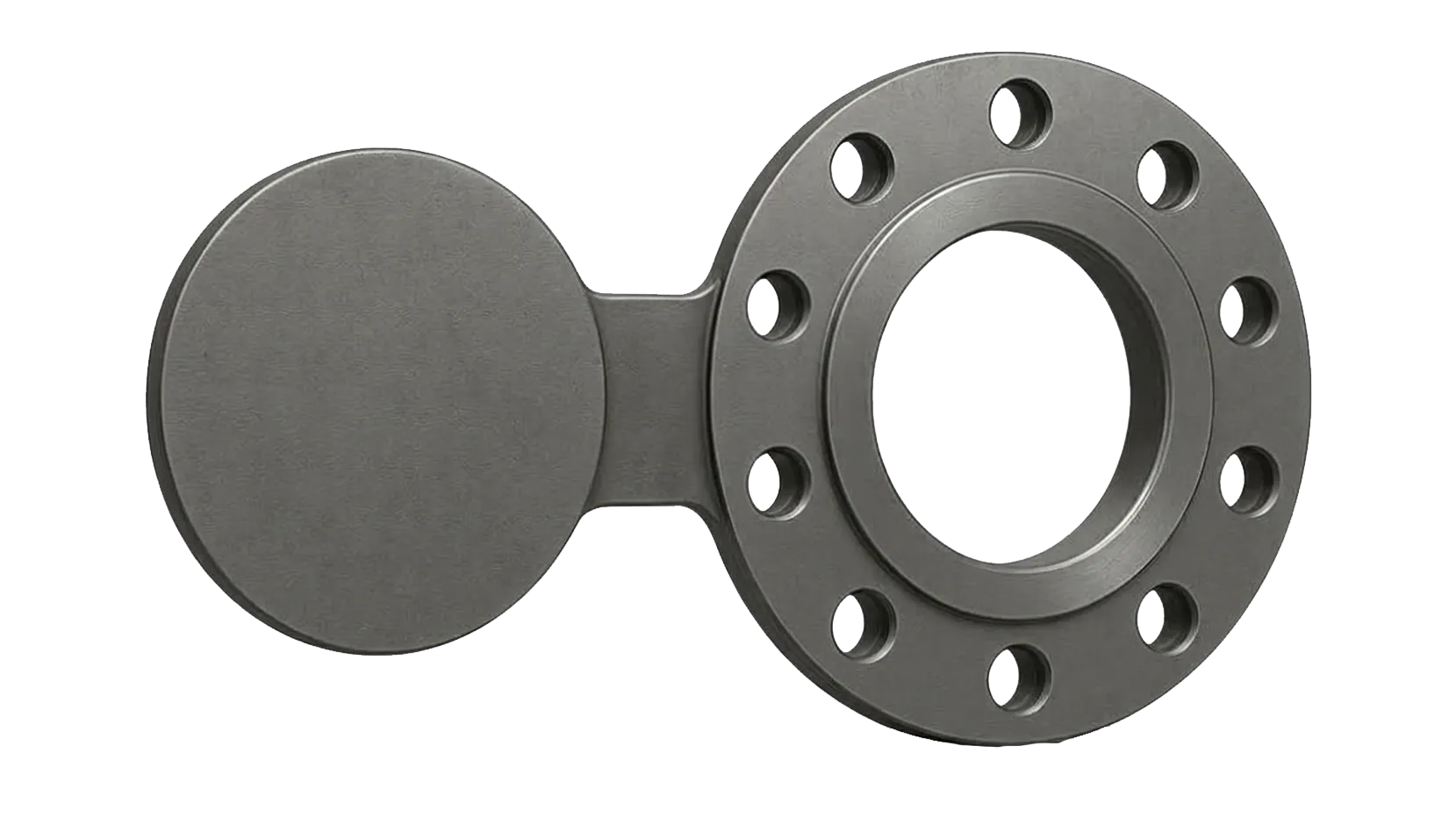

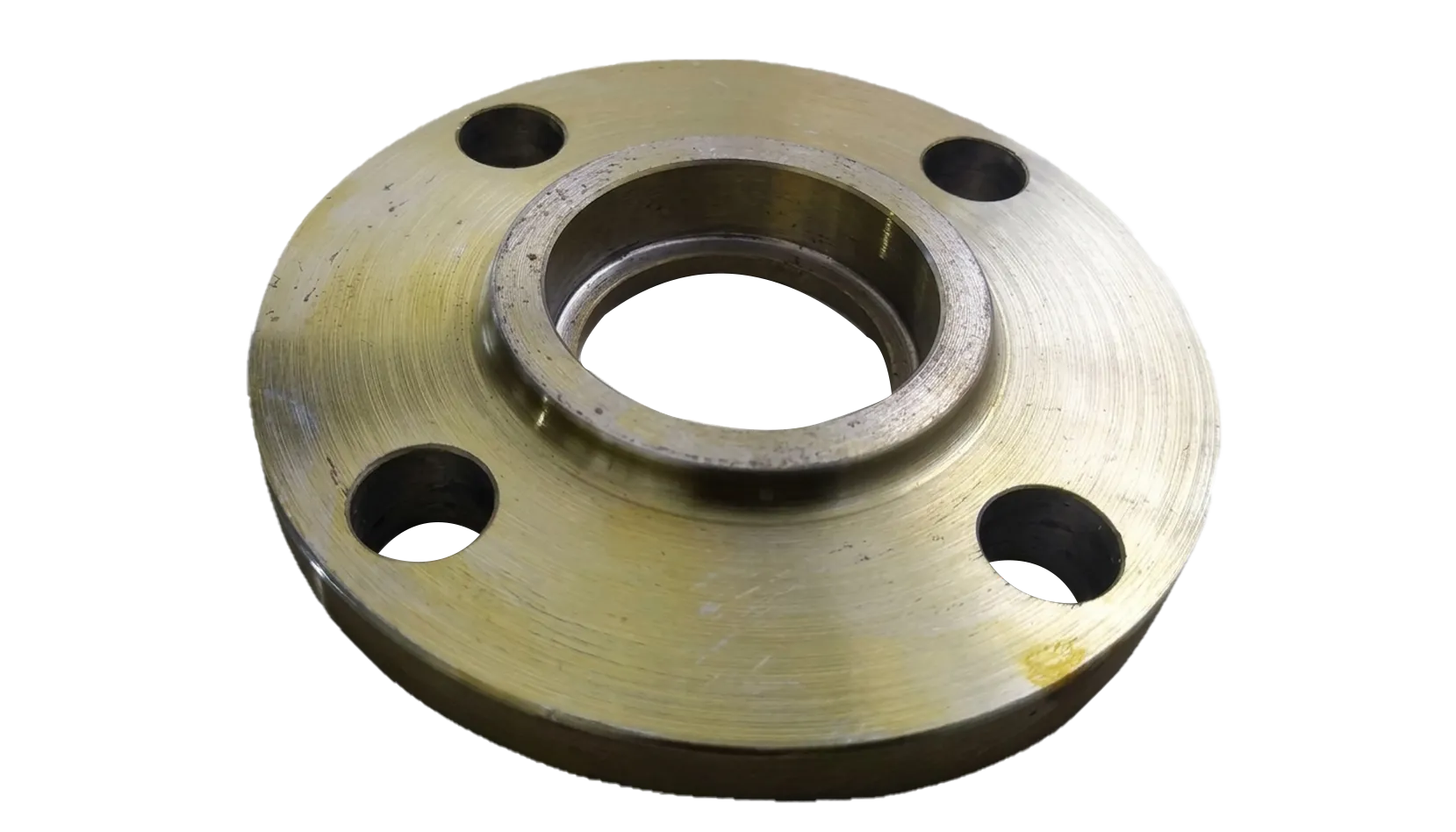

Weld Neck, Slip-On and Socket Weld configurations provide different pipe-connection arrangements, while Blind and Spectacle Blind designs are used for closing or isolating piping connections.
Ganpat Metal manufactures High Yield Carbon Steel Flanges according to the specified A694 grade, flange type and dimensional requirements.
The manufacturing sequence can include:
The finished flange profile is produced according to the selected standard, size, pressure class, face and configuration.
Inspection and certification establish traceability between the supplied flange and its specified material grade.
| Inspection / Document | Details |
|---|---|
| Chemical Analysis | Verification of material composition |
| Tensile Testing | Tensile strength determination |
| Yield Testing | Yield-strength verification |
| Elongation | Ductility measurement |
| Dimensional Inspection | OD, thickness, bore, bolt holes and facing |
| Material Test Certificate | Heat and material traceability |
| EN 10204 | 3.1 / 3.2 certification |
| PMI | Positive Material Identification |
| NDT | Applicable non-destructive testing |
| Radiographic Testing | Where specified by inspection requirements |
| Third-Party Inspection | Independent inspection against purchase requirements |
| Visual Inspection | Surface and workmanship inspection |
Inspection documentation can be prepared against the specified A694 grade, purchase order and project inspection requirements.
High Yield Carbon Steel Flanges are used for piping and transmission connections where an ASTM A694 high-yield material grade is specified.
Typical applications include:
The required F42 to F70 grade is selected according to the strength level and material specification established for the project.
Ganpat Metal manufactures and supplies High Yield Carbon Steel Flanges in India according to ASTM A694 / ASME SA694 requirements.
The range covers F42, F46, F52, F60, F65 and F70 grades in sizes from 1/2" to 48", with pressure classes and flange configurations selected according to the project requirement.
For buyers with a defined material specification, Ganpat Metal supplies ASTM A694 F42 flanges, ASTM A694 F46 flanges, ASTM A694 F52 flanges, ASTM A694 F60 flanges, ASTM A694 F65 flanges and ASTM A694 F70 flanges with the required dimensions, facing and inspection documentation.
Ganpat Metal supplies High Yield Carbon Steel Flanges from India to industrial buyers across domestic and international markets.
Brazil
New Zealand
Australia
Bangladesh
Malaysia
UAE
Saudi Arabia
Oman
Egypt
Spain
Russia
Kazakhstan
Export enquiries can be processed against the specified A694 grade, flange type, size, pressure class, dimensional standard, inspection requirements and delivery destination.
Ganpat Metal's A694 flange range is structured around the technical requirements of high-pressure piping and transmission projects.
| Requirement | Ganpat Metal Range |
|---|---|
| Material Specification | ASTM A694 / ASME SA694 |
| Grades | F42, F46, F52, F60, F65, F70 |
| Size Range | 1/2" to 48" |
| ASME Classes | 150# to 2500# |
| PN Ratings | PN6 to PN64 |
| Face Types | FF, RF, RTJ |
| Flange Configurations | Weld Neck, Slip-On, Blind, Socket Weld, Threaded, Lap Joint, RTJ and others |
| Dimensional Standards | ASME, ANSI, BS, DIN, EN |
| Documentation | MTC, EN 10204 3.1/3.2 and applicable inspection reports |
| Supply Markets | India and listed export countries |
For an accurate commercial enquiry, provide the technical details available for your project.
| Requirement | Specification |
|---|---|
| Material Standard | ASTM A694 / ASME SA694 |
| Grade | F42 / F46 / F52 / F60 / F65 / F70 |
| Flange Type | Weld Neck / Slip-On / Blind / Socket Weld / Threaded / etc. |
| Size | 1/2" to 48" |
| Pressure Class | 150# / 300# / 400# / 600# / 900# / 1500# / 2500# |
| PN Rating | PN6 / PN10 / PN16 / PN25 / PN40 / PN64 |
| Face | FF / RF / RTJ |
| Dimensional Standard | B16.5 / B16.47 / B16.48 / B16.36 / BS / DIN / EN |
| Quantity | Required quantity |
| Inspection | Chemical / mechanical / dimensional / PMI / NDT / third-party |
| Documentation | MTC / EN 10204 3.1 / 3.2 |
| Drawing | Project drawing where applicable |
| Destination | Delivery location |
