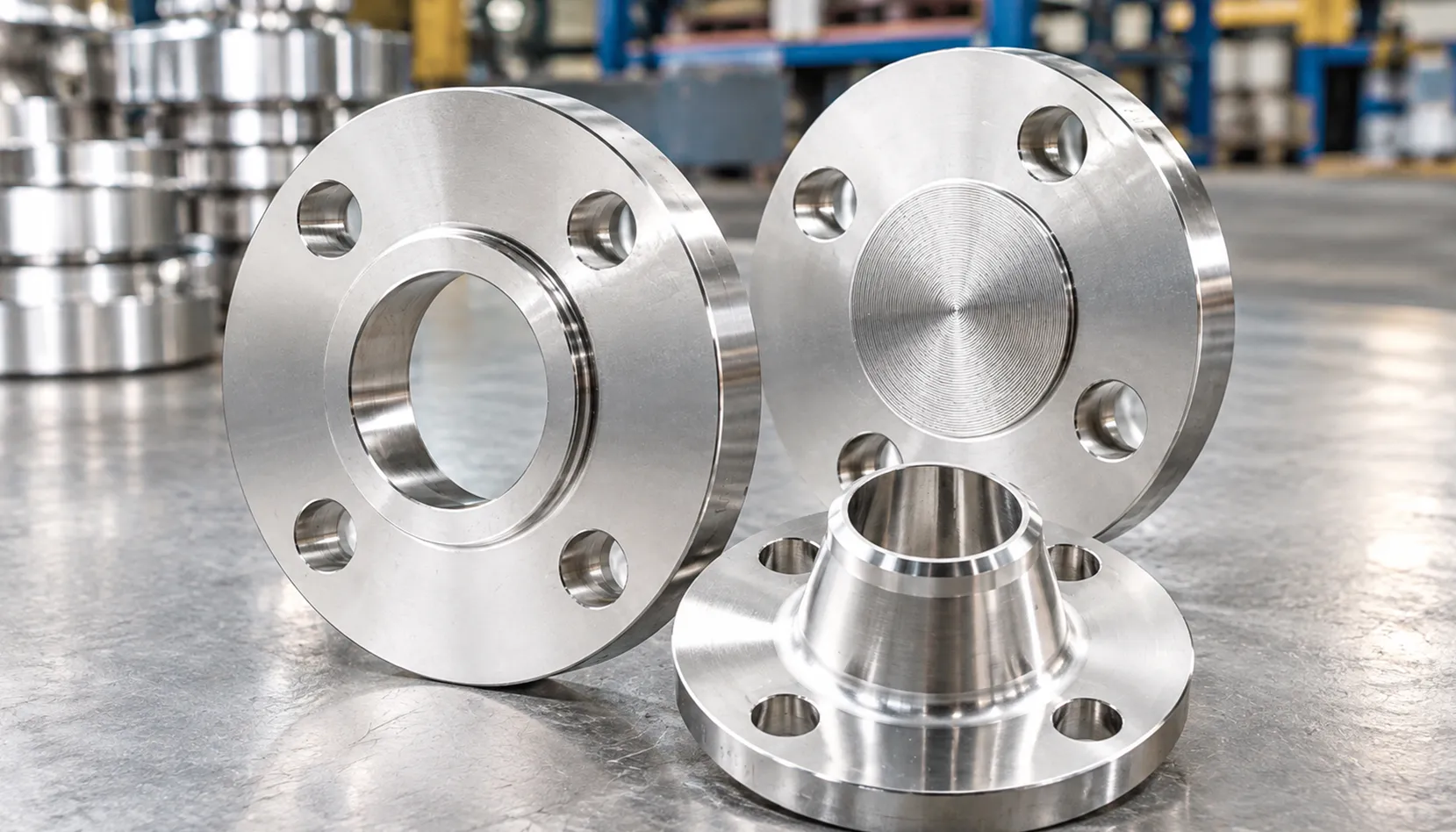

Hastelloy C2000 flanges from Ganpat Metal Pvt. Ltd. are supplied to ASTM B564 / ASME SB564 requirements for process piping, equipment connections and engineered flange assemblies. The range covers 1/2" to 48" (15 NB to 1200 NB), with ASME classes from 150# through 2500# and PN6 to PN64 configurations.
| Specification | Details |
|---|---|
| Material Specification | ASTM B564 / ASME SB564 |
| Grade | Hastelloy C2000 |
| UNS | N06200 |
| Werkstoff No. | 2.4675 |
| Size | 1/2" (15 NB) to 48" (1200 NB) |
| ASME Pressure Class | 150#, 300#, 600#, 900#, 1500#, 2500# |
| PN Rating | PN6, PN10, PN16, PN25, PN40, PN64 |
| Dimensional Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS10, EN-1092, DIN |
| Flange Standards | ANSI, ASME, BS, DIN, EN |

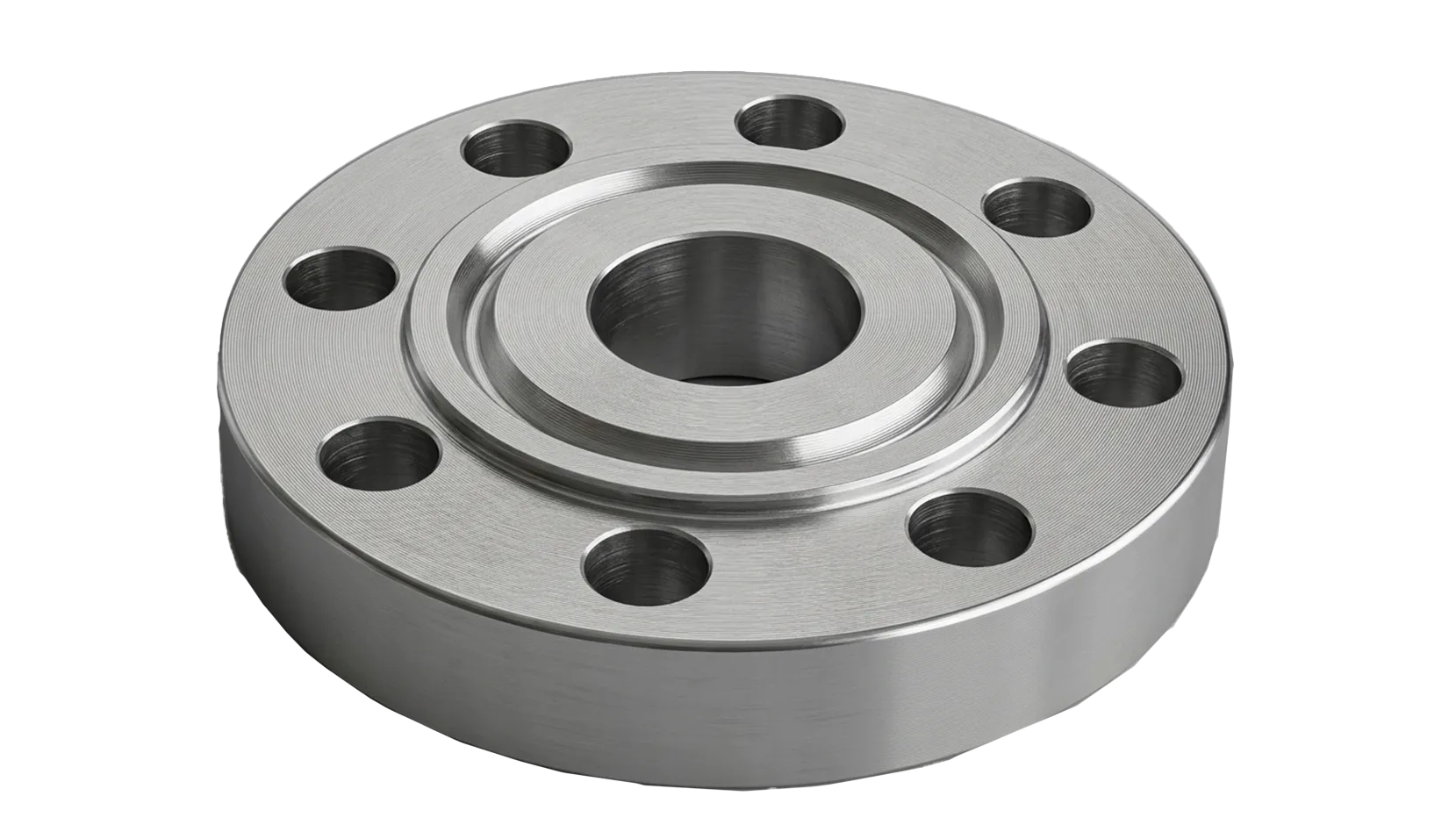

| Face Types | Flat Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| Standard | Requirement |
|---|---|
| ANSI/ASME B16.5 | Standard flange dimensions and pressure classes |
| ASME B16.47 Series A & B | Large diameter flanges |
| ASME B16.48 | Line blanks |
| BS4504 | BS flange dimensions |
| BS10 | BS dimensional requirements |
| EN-1092 | EN flange dimensions and PN ratings |
| DIN | DIN flange configurations |
| ASTM B564 / ASME SB564 | Material specification |
| Grade | UNS | Werkstoff No. |
|---|---|---|
| Hastelloy C2000 | N06200 | 2.4675 |
N06200 is the UNS designation for Hastelloy C2000, while 2.4675 identifies the material under the Werkstoff numbering system. These designations can be included in purchase orders, material certificates and inspection documentation to identify the required grade.
| Element | Composition |
|---|---|
| Nickel (Ni) | Remainder |
| Molybdenum (Mo) | 15.0–17.0% |
| Chromium (Cr) | 14.5–16.5% |
| Iron (Fe) | 4.0–7.0% |
| Tungsten (W) | 3.0–4.5% |
| Cobalt (Co) | 2.5% max |
| Manganese (Mn) | 1.0% max |
| Carbon (C) | 0.01% max |
| Vanadium (V) | 0.35% max |
| Phosphorus (P) | 0.04% max |
| Silicon (Si) | 0.08% max |
| Property | Value |
|---|---|
| Tensile Strength | 690 MPa |
| Yield Strength | 310 MPa |
| Elongation at Break | 45% |
| Face Type | Designation |
|---|---|
| Flat Face | FF |
| Raised Face | RF |
| Ring Type Joint | RTJ |
There is no single weight for a C2000 flange because the finished mass changes with the NPS/NB, pressure class, flange type, bore, hub and face configuration.
For an estimated calculation, the required input should include nominal size, pressure class, flange type, dimensional standard, bore requirement and face configuration.
The resulting figure should be treated as an estimated weight. Actual dispatch weight depends on the manufactured dimensions of the flange.
The C2000 range can be configured for different piping connections and equipment arrangements.
C2000 flange production is based on the ordered material specification and dimensional configuration rather than a single standard configuration.
The manufacturing requirement can cover:
Where the flange is being produced to a customer drawing, the drawing and dimensional schedule should accompany the enquiry so that the required configuration can be established before production.
Inspection requirements can be matched to the purchase order and project documentation.
Depending on the specification, the inspection package may include:
This allows the material, dimensions and inspection records to be checked against the ordered C2000 flange specification.
C2000 flanges can be specified for process and equipment connections across industries such as:
The flange class, dimensions, face and material condition should be selected from the actual piping or equipment specification.
Ganpat Metal works with C2000 flange enquiries based on the details that determine the finished component: UNS designation, size, class, flange type, face, dimensional standard and quantity.
A purchase order, piping schedule or customer drawing can be used to establish these requirements. Inspection and documentation requirements can also be incorporated into the supply specification.
Projects requiring another grade can be covered through the wider Hastelloy flanges range, including C276, C22, C4, B2, C2000, B3 and X.
For a faster commercial response, the enquiry should include the complete flange designation rather than only the material grade.
C2000 flange enquiries are handled for projects in:
India
Brazil
New Zealand
Australia
Bangladesh
Malaysia
UAE
Saudi Arabia
Oman
Egypt
Spain
Russia
Kazakhstan
International enquiries can specify the required material standard, dimensional standard, pressure rating, flange configuration, inspection documents and delivery destination.
To prepare the correct commercial and technical offer, share:
