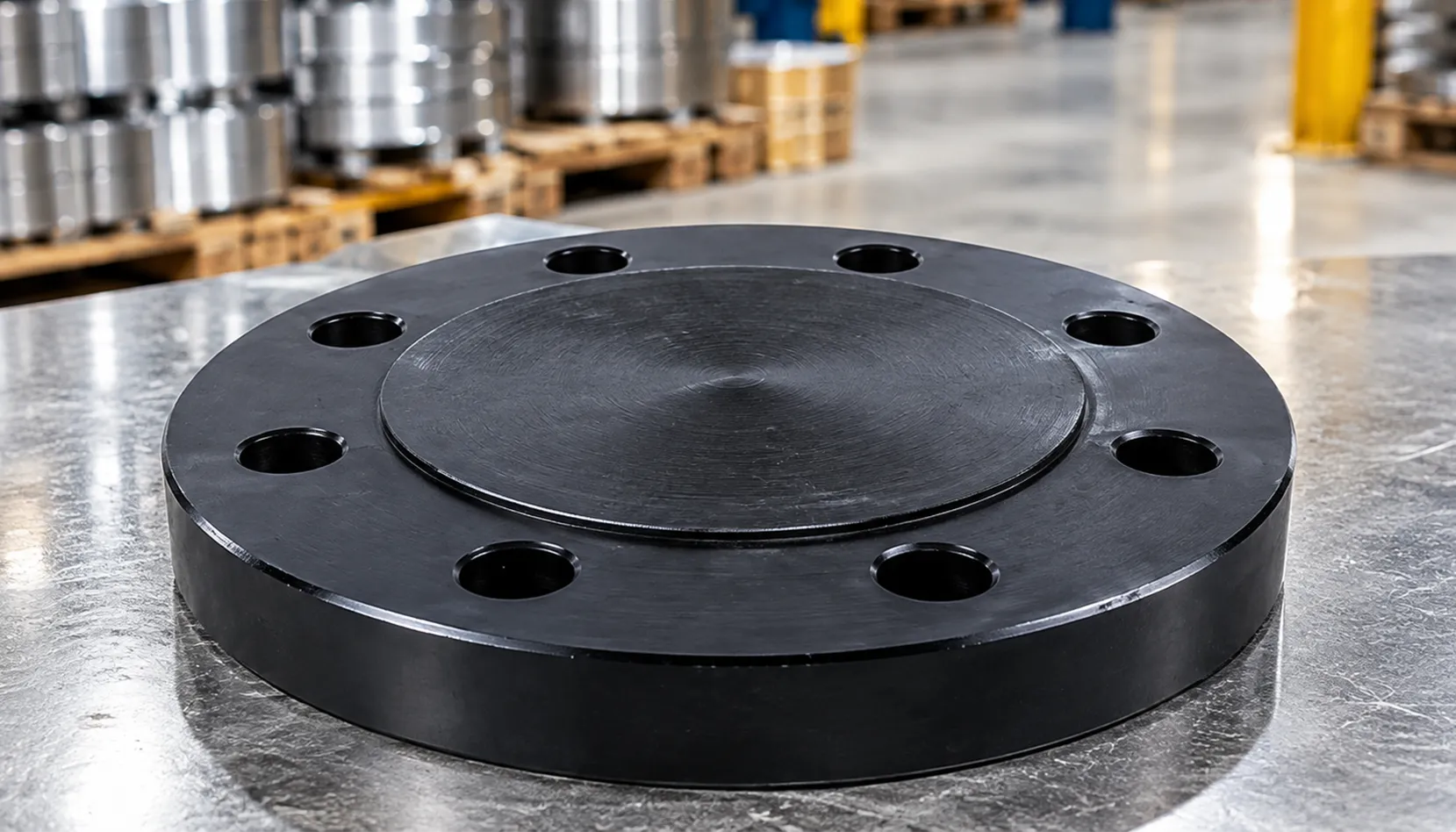

Ganpat Metal manufactures and supplies ASTM A694 F46 Flanges as per ASTM A694 / ASME SA694 for high-pressure piping, transmission lines, process systems and industrial equipment. These flanges are available in 1/2" to 48" sizes, 150# to 2500# pressure classes and PN6 to PN64 ratings.
ASTM A694 F46 Flanges are supplied in Weld Neck, Slip-On, Blind, Threaded, Socket Weld, Lap Joint, RTJ and other configurations with FF, RF and RTJ face options.
| Specification | Details |
|---|---|
| Material Standard | ASTM A694 / ASME SA694 |
| Grade | F46 |
| Material | Carbon Steel |
| Size | 1/2" to 48" |
| Pressure Class | 150#, 300#, 600#, 900#, 1500#, 2500# |
| PN Rating | PN6, PN10, PN16, PN25, PN40, PN64 |
| Dimensions | ASME B16.5, B16.47, B16.48, BS4504, BS10, EN1092, DIN |
| Face | FF, RF, RTJ |
| Flange Types | Weld Neck, Slip-On, Blind, Threaded, Socket Weld, Lap Joint, RTJ and others |
| Standards | ANSI, ASME, BS, EN, DIN |
| Element | F46 |
|---|---|
| Carbon (C) | ≤0.30% |
| Manganese (Mn) | ≤1.60% |
| Phosphorus (P) | ≤0.025% |
| Sulfur (S) | ≤0.025% |
| Silicon (Si) | 0.15–0.35% |
| Property | F46 |
|---|---|
| Yield Strength, Min. | 315 MPa / 46 ksi |
| Tensile Strength, Min. | 415 MPa / 60 ksi |
| Elongation, Min. | 20% |
ASTM A694 F46 Flanges are manufactured according to the required dimensional standard, size, pressure class and flange configuration.
| Standard | Applicable Types |
|---|---|
| ASME B16.5 | Welding Neck, Slip-On, Blind, Socket Weld, Lap Joint, Threaded, RTJ |
| ASME B16.47 Series A & B | Welding Neck, Blind |
| ASME B16.48 | Line Blanks |
| ASME B16.36 | Orifice Flanges |
| BS4504 | Welding Neck, Hubbed Slip-On, Hubbed Threaded, Plate, Blank and others |
| BS10 | Welding Neck, Plate Slip-On, Screwed Boss, Slip-On Boss, Blind |
| EN1092 | EN dimensional flange configurations |
| DIN | DIN-series flange standards |
| Standard | Pressure Class / Rating |
|---|---|
| ASME B16.5 | 150# to 2500# |
| ASME B16.47 | 75# to 900# |
| ASME B16.36 | 300# to 2500# |
| BS4504 Section 3.1 | PN2.5 to PN40 |
| BS4504 Part 1 | PN2.5 to PN400 |
| BS1560 | 150 to 2500 |
| DIN | PN6 to PN100 |
| Product Range | 150# to 2500#, PN6 to PN64 |
| Face Type | Abbreviation |
|---|---|
| Flat Face | FF |
| Raised Face | RF |
| Ring Type Joint | RTJ |
The weight of ASTM A694 F46 Flanges depends on the flange type, nominal size, pressure class, dimensions, bore and face configuration.
Final flange weight is determined from the actual finished dimensions and selected configuration.
Ganpat Metal supplies ASTM A694 F46 Flanges in different configurations for piping and equipment connections.
ASTM A694 F46 Flanges are manufactured and machined according to the specified grade, dimensions, pressure class and flange type.
1/2" to 48" (15 NB to 1200 NB) size range with ASME B16.5, B16.47 Series A & B for large-diameter requirements, Class 150 to Class 2500, PN6 to PN64, and FF, RF, RTJ face configurations.
Ganpat Metal is an ASTM A694 F46 Flanges Manufacturer in India, supplying F46 Carbon Steel Flanges for piping, pipeline, transmission and industrial projects.
The range includes 1/2" to 48" sizes, 150# to 2500# pressure classes and PN6 to PN64 ratings. Flanges are supplied in FF, RF and RTJ configurations according to the required specification.

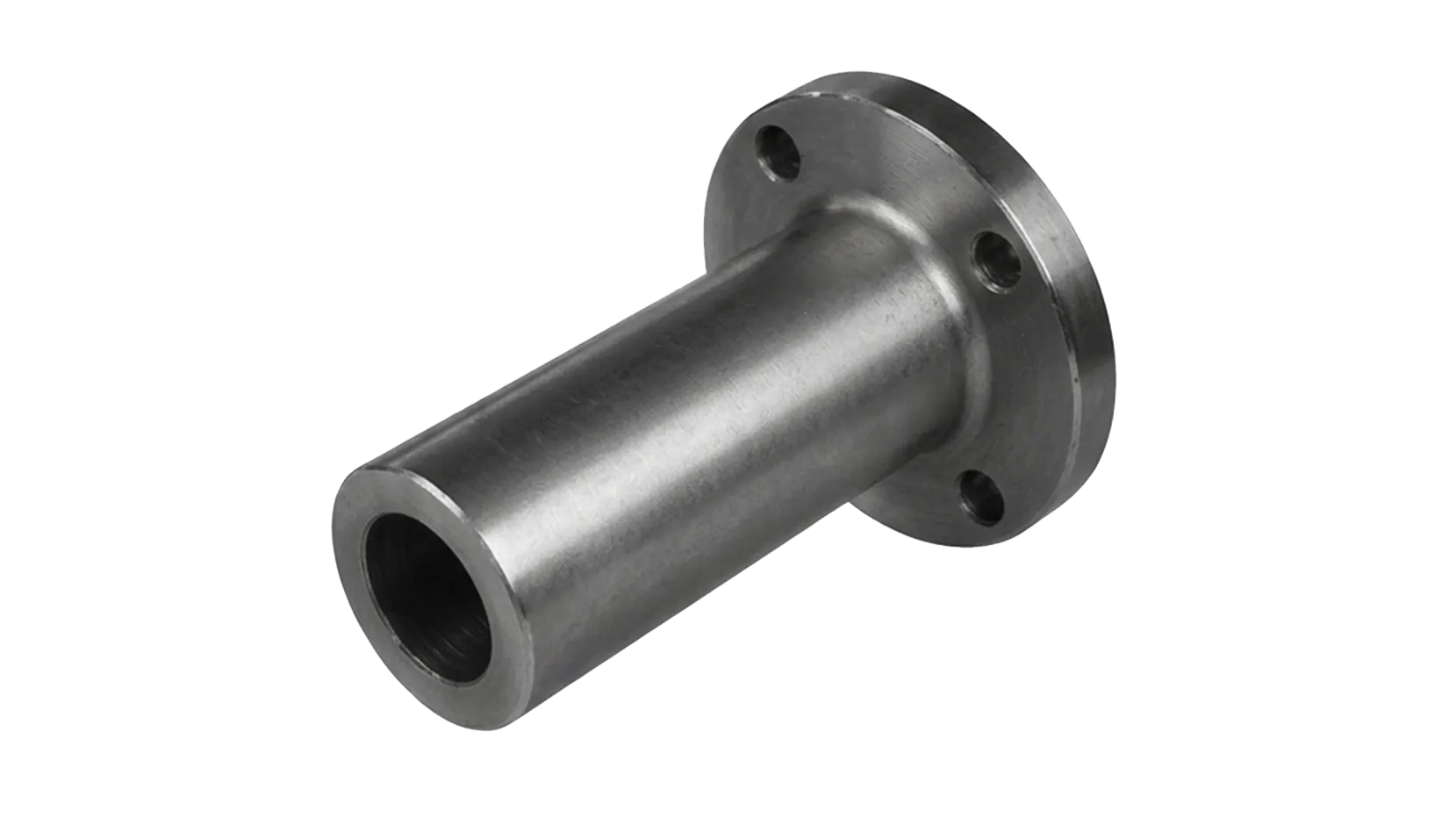

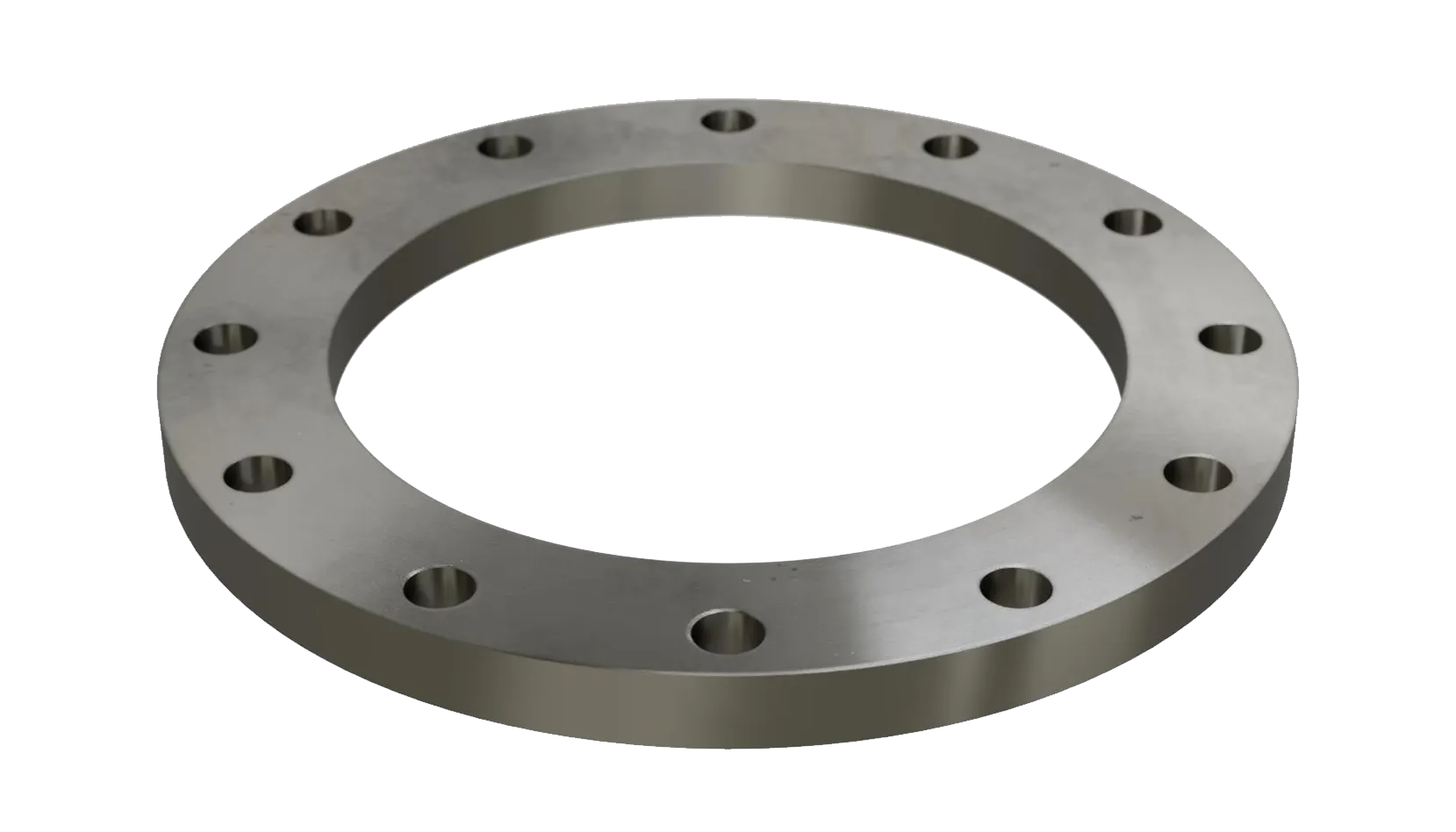

F46 Flanges can be supplied in Weld Neck, Slip-On, Blind, Threaded, Socket Weld, Lap Joint, RTJ, Long Weld Neck and other configurations.
India
Brazil
New Zealand
Australia
Bangladesh
Malaysia
UAE
Saudi Arabia
Oman
Egypt
Spain
Russia
Kazakhstan
For projects requiring other high-yield grades within the same material family, Ganpat Metal also supplies a complete range of High Yield Carbon Steel Flanges in F42, F46, F52, F60, F65 and F70 grades for different piping and transmission requirements.
Share the following details with Ganpat Metal for an accurate quotation:
For other high-yield carbon steel flange grades and configurations, visit our High Yield Carbon Steel Flanges category page to view the broader product range.
