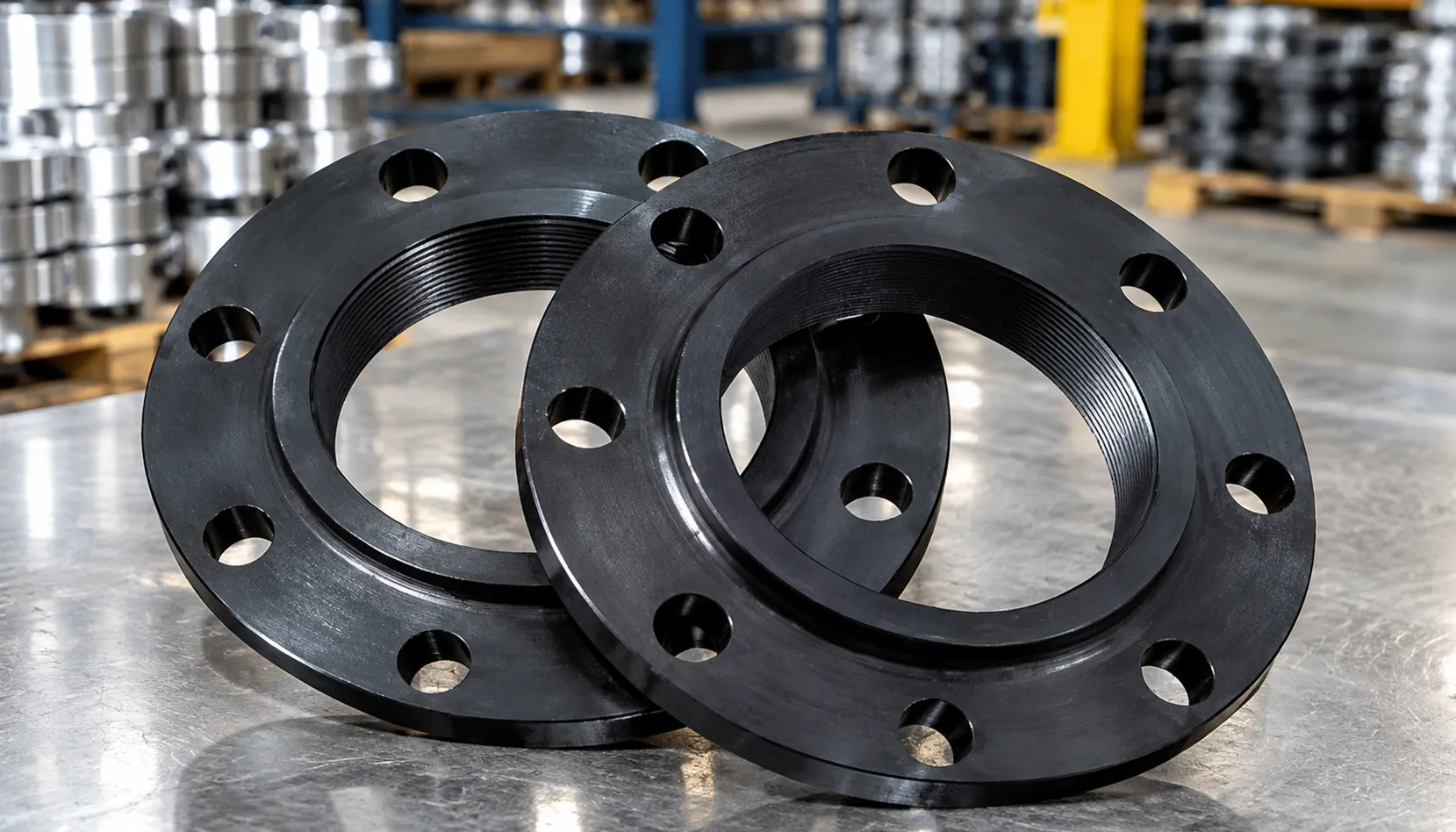

Ganpat Metal manufactures and supplies ASTM A694 F60 Flanges as per ASTM A694 / ASME SA694 for high-pressure piping, transmission lines, process systems and industrial equipment. These Carbon Steel F60 Flanges are supplied in 1/2" to 48" sizes, with pressure classes from 150# to 2500# and PN6 to PN64 ratings.

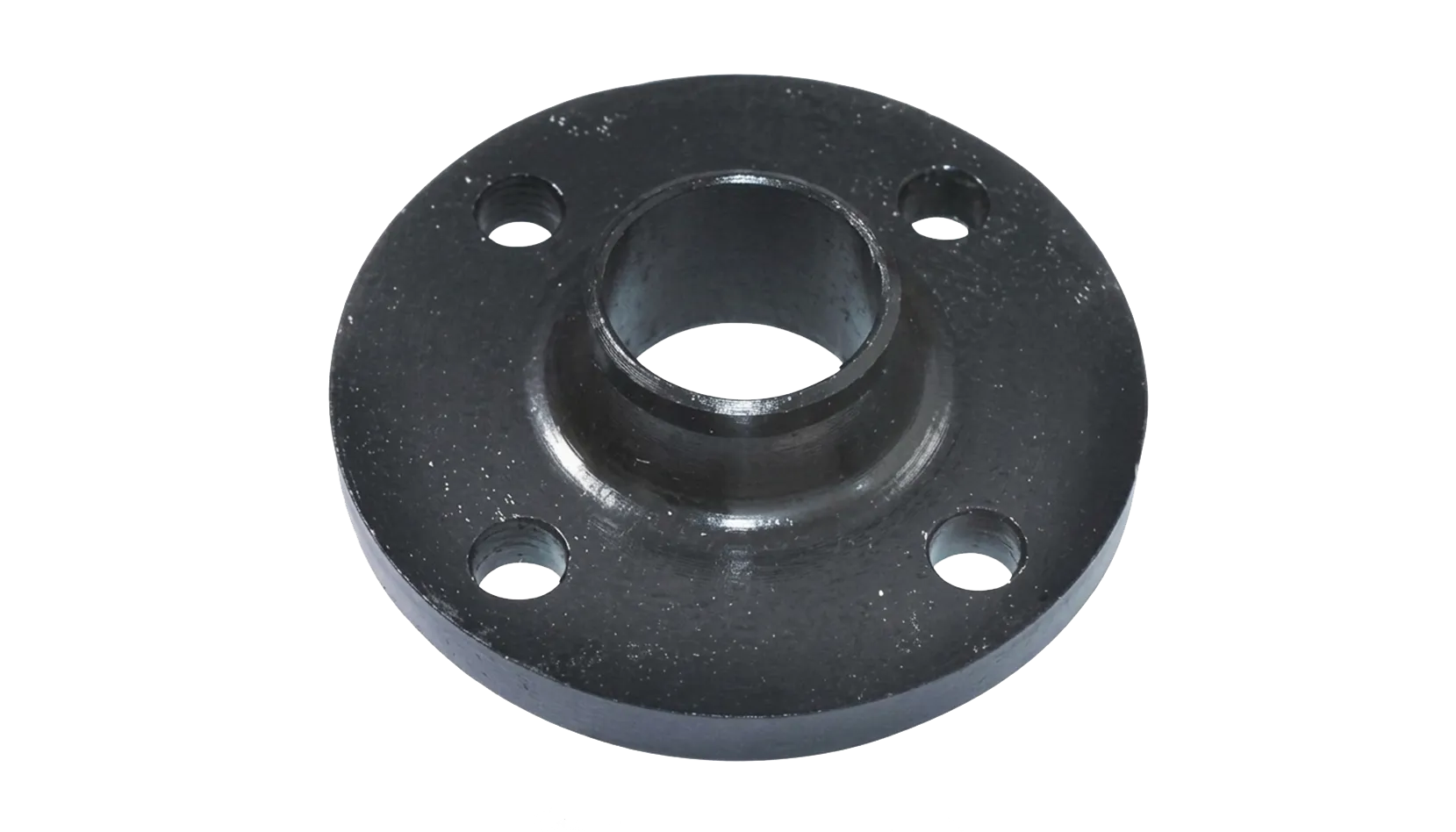

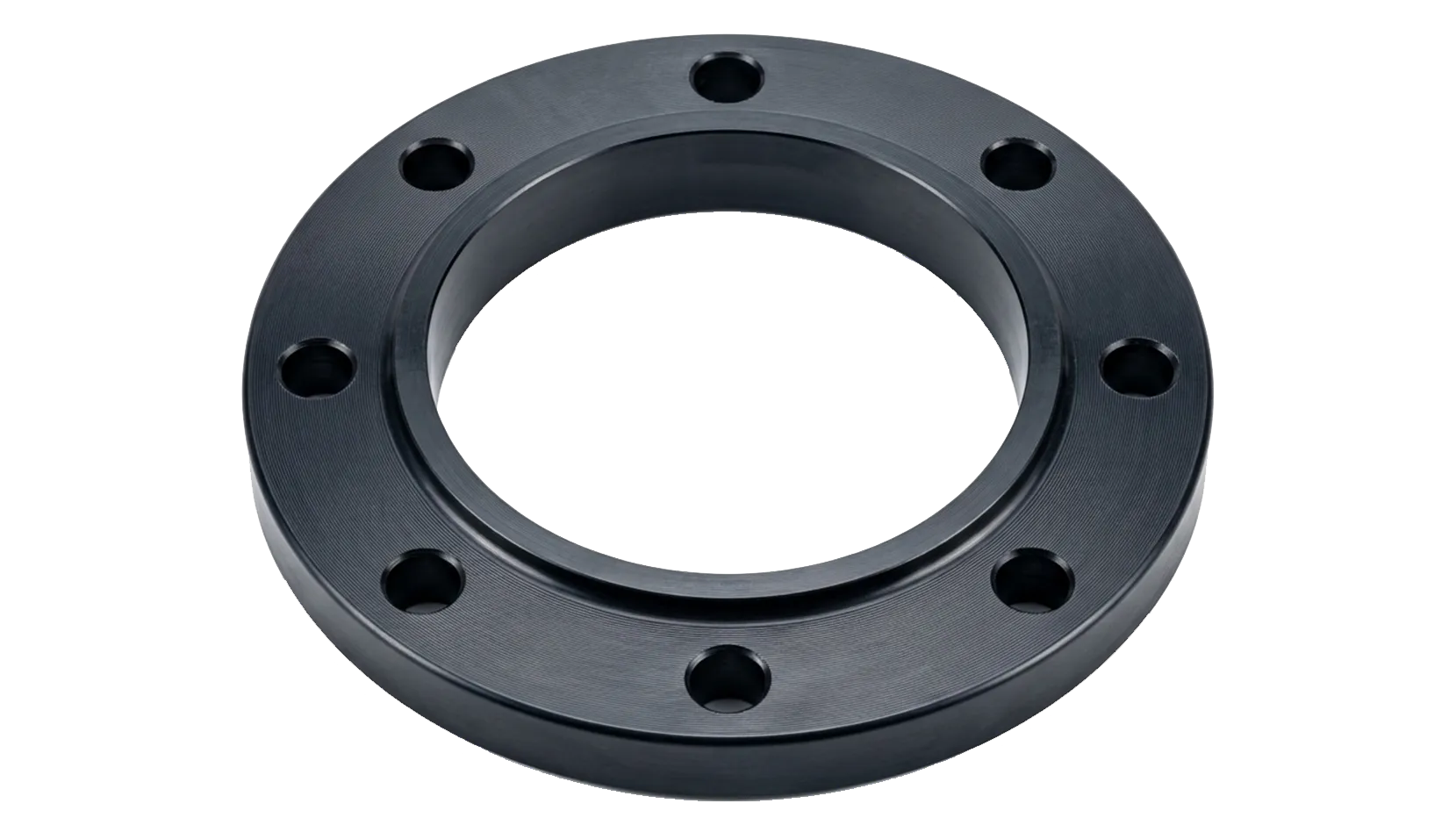

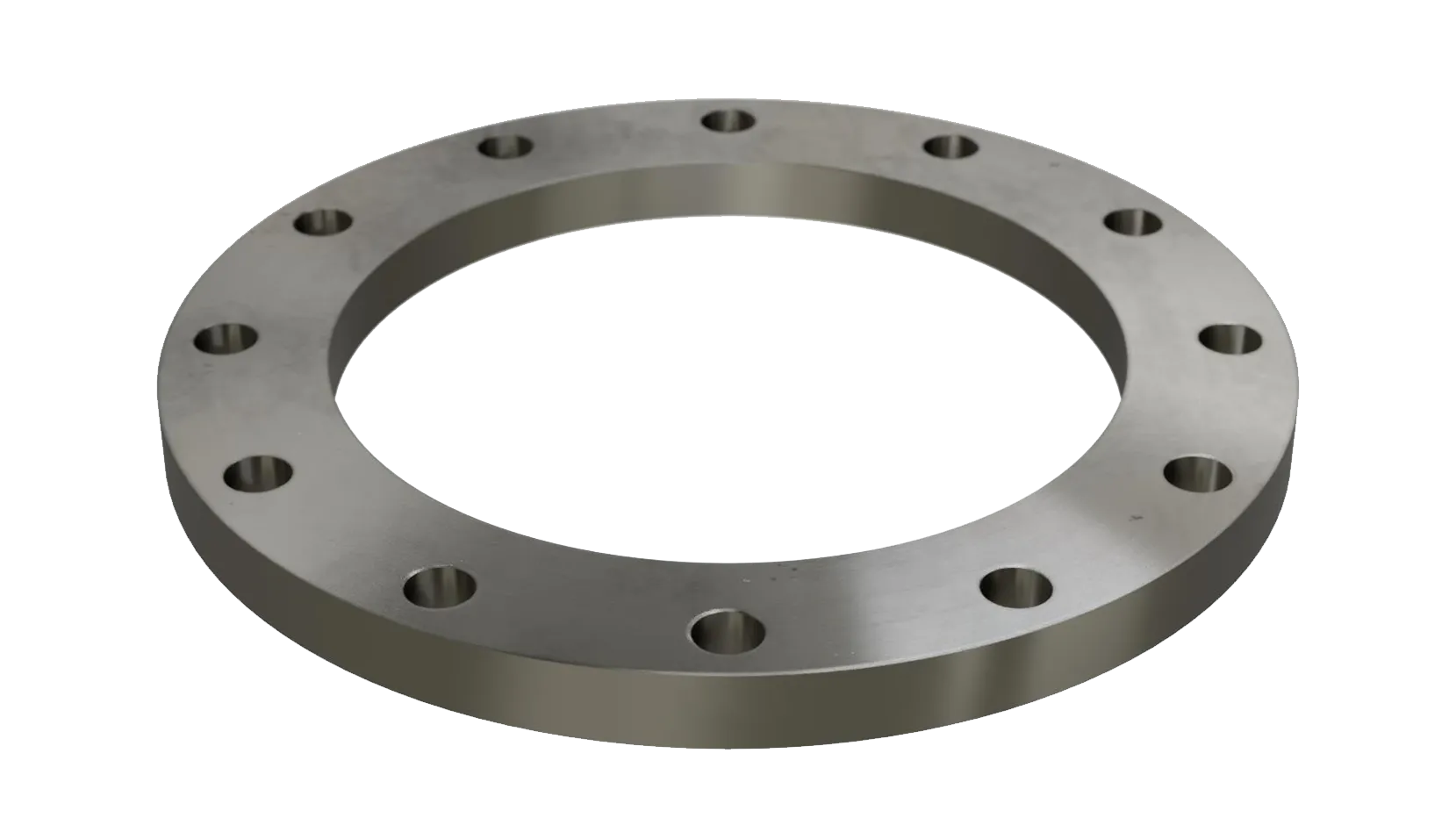

ASTM A694 F60 Flanges are available in Weld Neck, Slip-On, Blind, Threaded, Socket Weld, Lap Joint, RTJ, Long Weld Neck and Spectacle Blind configurations with Flat Face (FF), Raised Face (RF) and Ring Type Joint (RTJ) options.
| Specification | Details |
|---|---|
| Material Standard | ASTM A694 / ASME SA694 |
| Grade | F60 |
| Material | Carbon Steel |
| Material Designation | A694N |
| Size Range | 1/2" to 48" |
| Pressure Classes | 150#, 300#, 600#, 900#, 1500#, 2500# |
| PN Ratings | PN6, PN10, PN16, PN25, PN40, PN64 |
| Dimensions | ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS10, EN1092, DIN |
| Flange Standards | ANSI, ASME, BS, DIN, EN |
| Face Types | FF, RF, RTJ |
| Flange Types | Slip-On, Weld Neck, Blind, Threaded, Socket Weld, Lap Joint, RTJ, Long Weld Neck, Spectacle Blind |
ASTM A694 F60 Flanges are manufactured according to the applicable dimensional standard, flange configuration, nominal size and pressure class.
| Standard | Applicable Flange Configurations |
|---|---|
| ASME B16.5 | Welding Neck, Slip-On, Blind, Socket Weld, Lap Joint, Threaded, RTJ |
| ASME B16.47 Series A & B | Welding Neck, Blind |
| ASME B16.48 | Line Blanks |

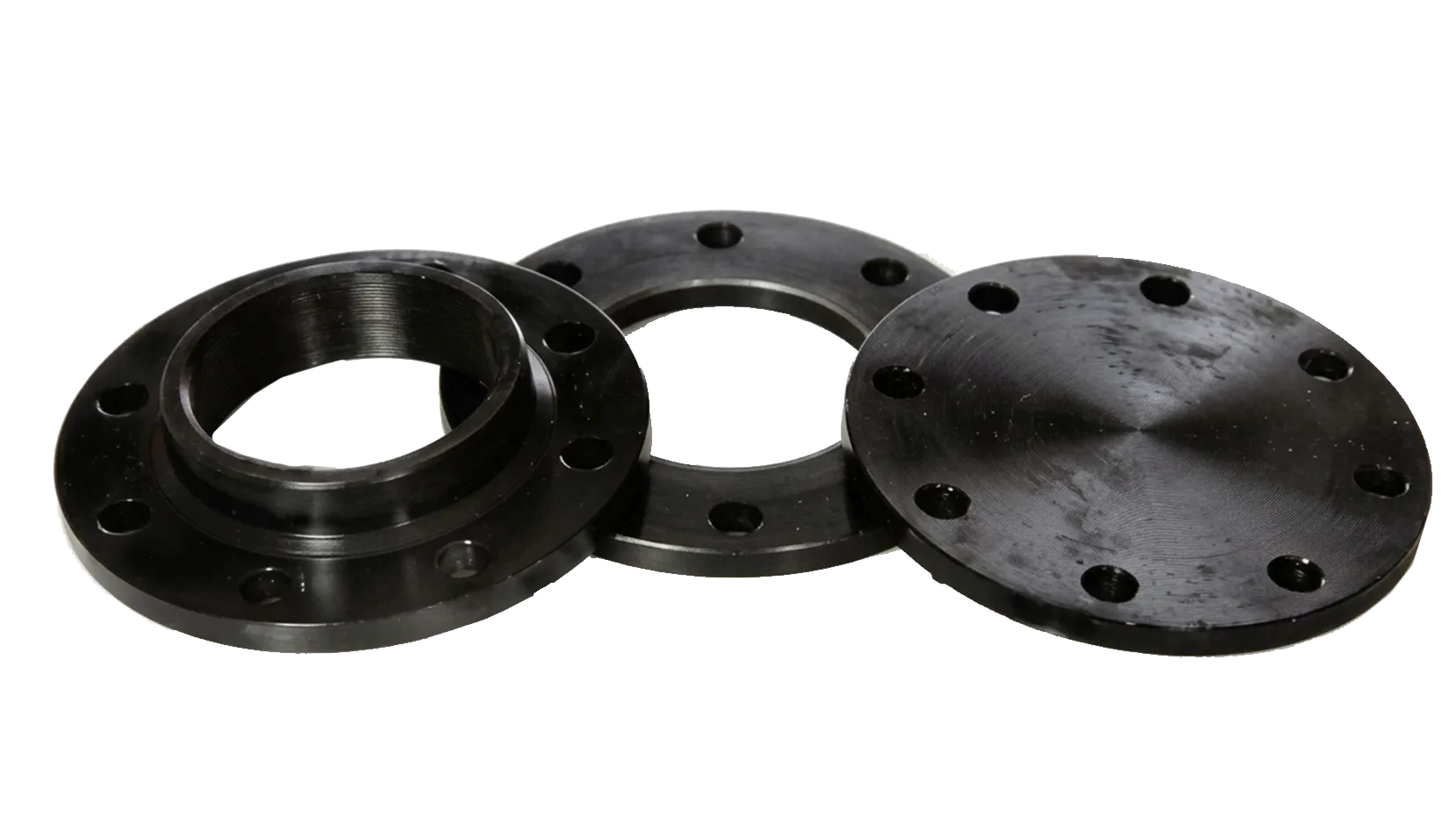

| ASME B16.36 | Orifice Flanges |
| BS4504 | Welding Neck, Hubbed Slip-On, Hubbed Threaded, Plate, Blank and others |
| BS10 | Welding Neck, Plate Slip-On, Screwed Boss, Slip-On Boss, Blind |
| EN1092 | European dimensional flange standards |
| DIN | DIN-series flange standards |
| Standard | Pressure Class / Rating |
|---|---|
| ASME B16.5 | 150# to 2500# |
| ASME B16.47 | 75# to 900# |
| ASME B16.36 | 300# to 2500# |
| BS4504 | PN2.5 to PN40 |
| DIN | PN6 to PN100 |
| Product Range | 150# to 2500#, PN6 to PN64 |
The applicable pressure class is selected according to the flange size, dimensional standard and project specification.
| Element | ASTM A694 F60 |
|---|---|
| Carbon (C) | ≤0.30% |
| Manganese (Mn) | ≤1.60% |
| Phosphorus (P) | ≤0.025% |
| Sulfur (S) | ≤0.025% |
| Silicon (Si) | 0.15–0.35% |
| Property | ASTM A694 F60 |
|---|---|
| Yield Strength, Min. | 415 MPa / 60 ksi |
| Tensile Strength, Min. | 515 MPa / 75 ksi |
| Elongation, Min. | 20% |
| Face Type | Abbreviation |
|---|---|
| Flat Face | FF |
| Raised Face | RF |
| Ring Type Joint | RTJ |
The finished weight of an ASTM A694 F60 Flange depends on the nominal size, flange type, pressure class, thickness, bore, face and dimensional standard.
Exact flange weight is determined from the final dimensions and selected configuration.
Ganpat Metal supplies ASTM A694 F60 Carbon Steel Flanges in different configurations for piping connections and equipment assemblies.
ASTM A694 F60 Flanges are manufactured and machined according to the specified material grade, dimensions, pressure class and flange configuration.
ASTM A694 F60 Flanges are used in piping and transmission systems requiring high-yield carbon steel flange components.
Ganpat Metal is an ASTM A694 F60 Flanges Manufacturer in India, supplying F60 Carbon Steel Flanges for piping, pipeline, transmission and industrial projects.
The F60 flange range covers 1/2" to 48" sizes, 150# to 2500# pressure classes and PN6 to PN64 ratings. FF, RF and RTJ faces are supplied according to the required flange configuration.

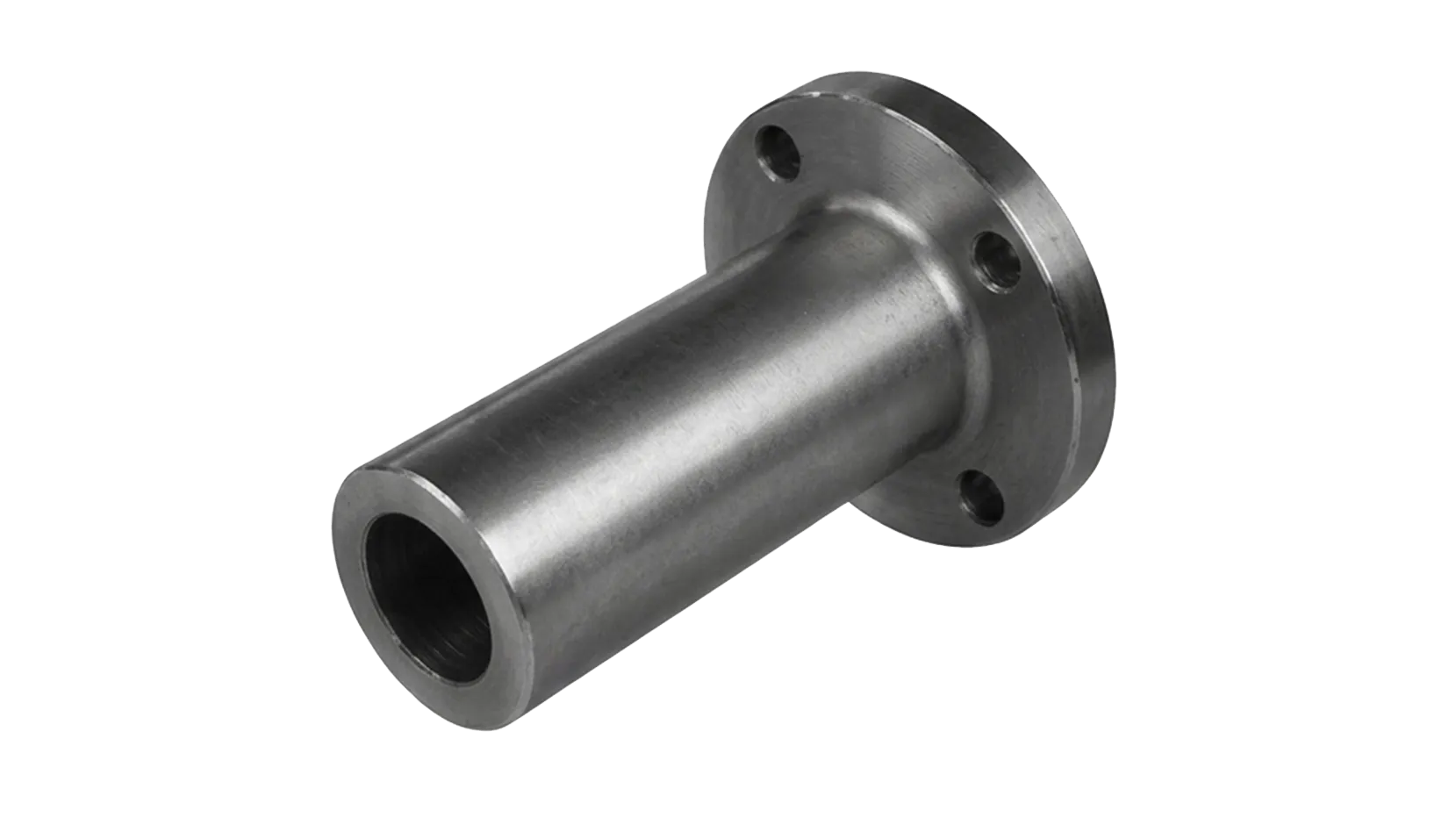

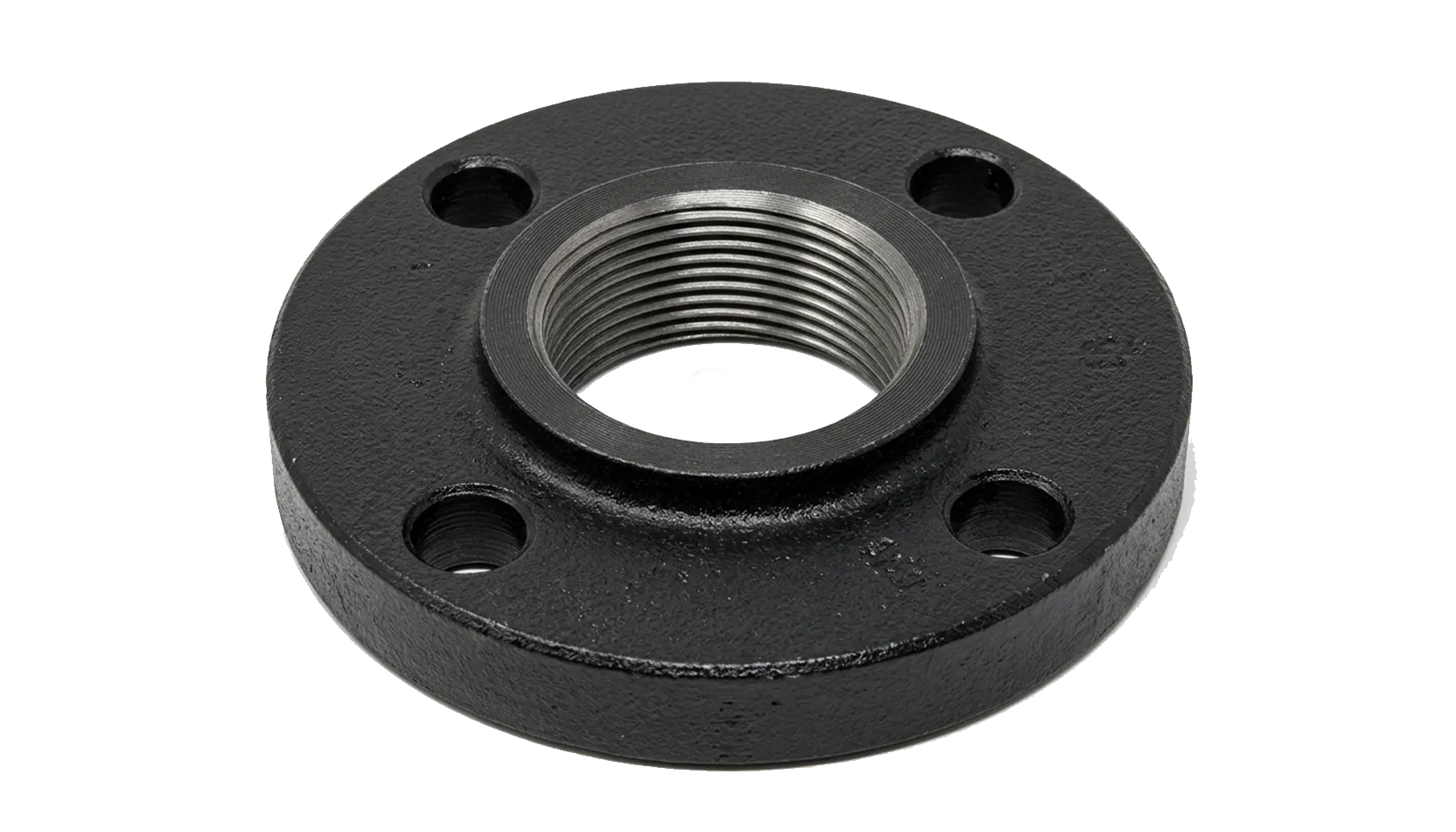

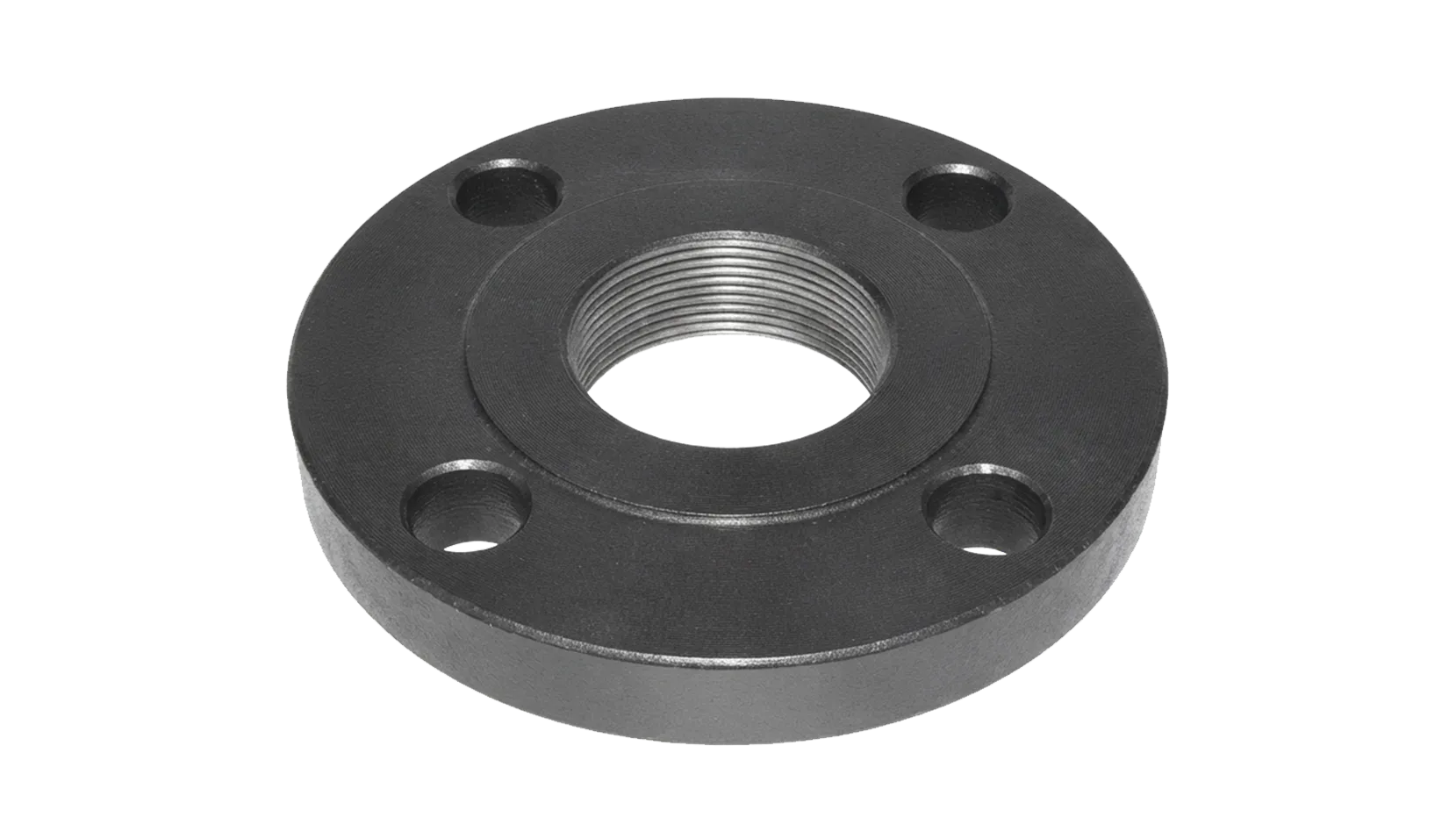

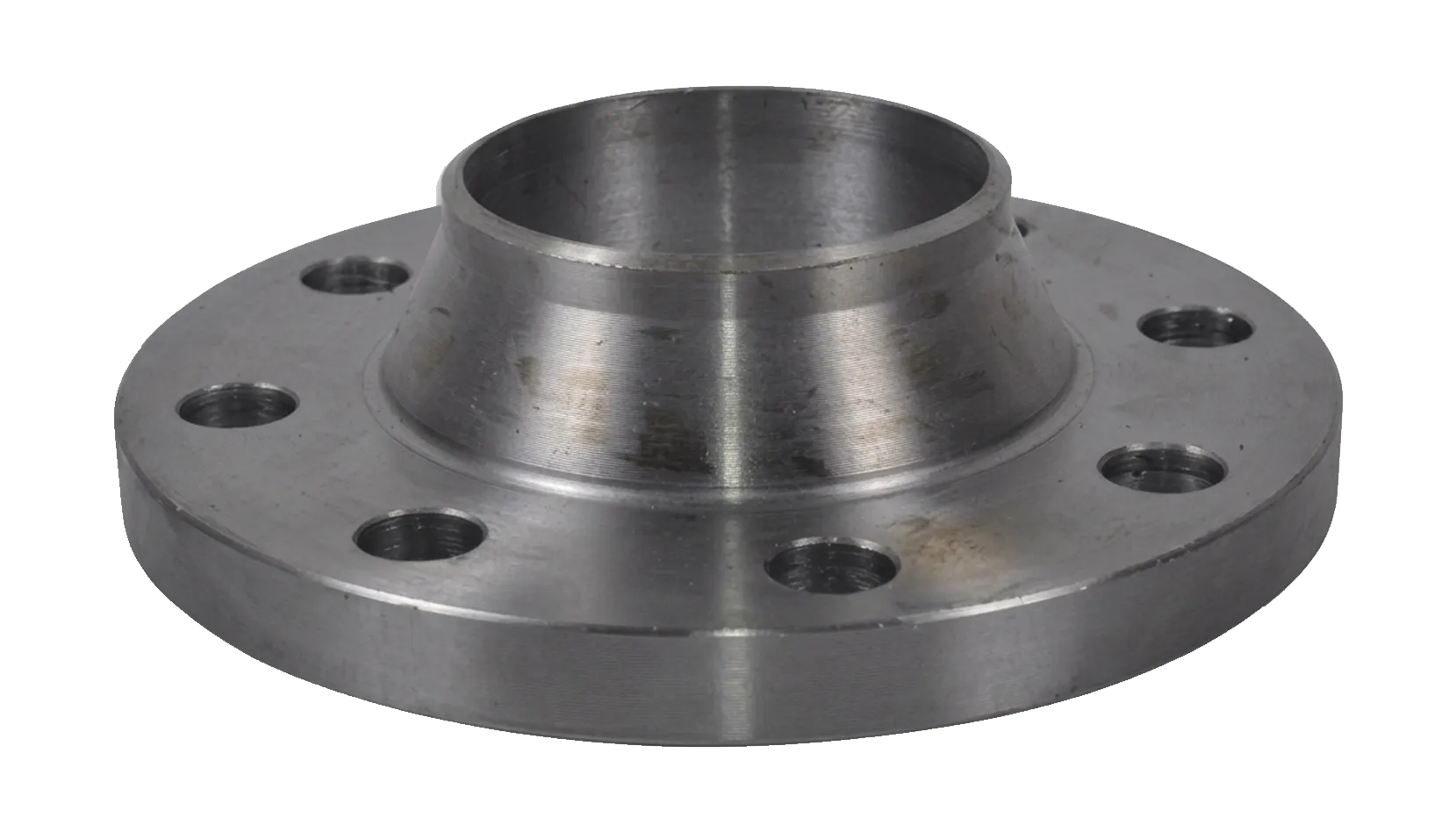

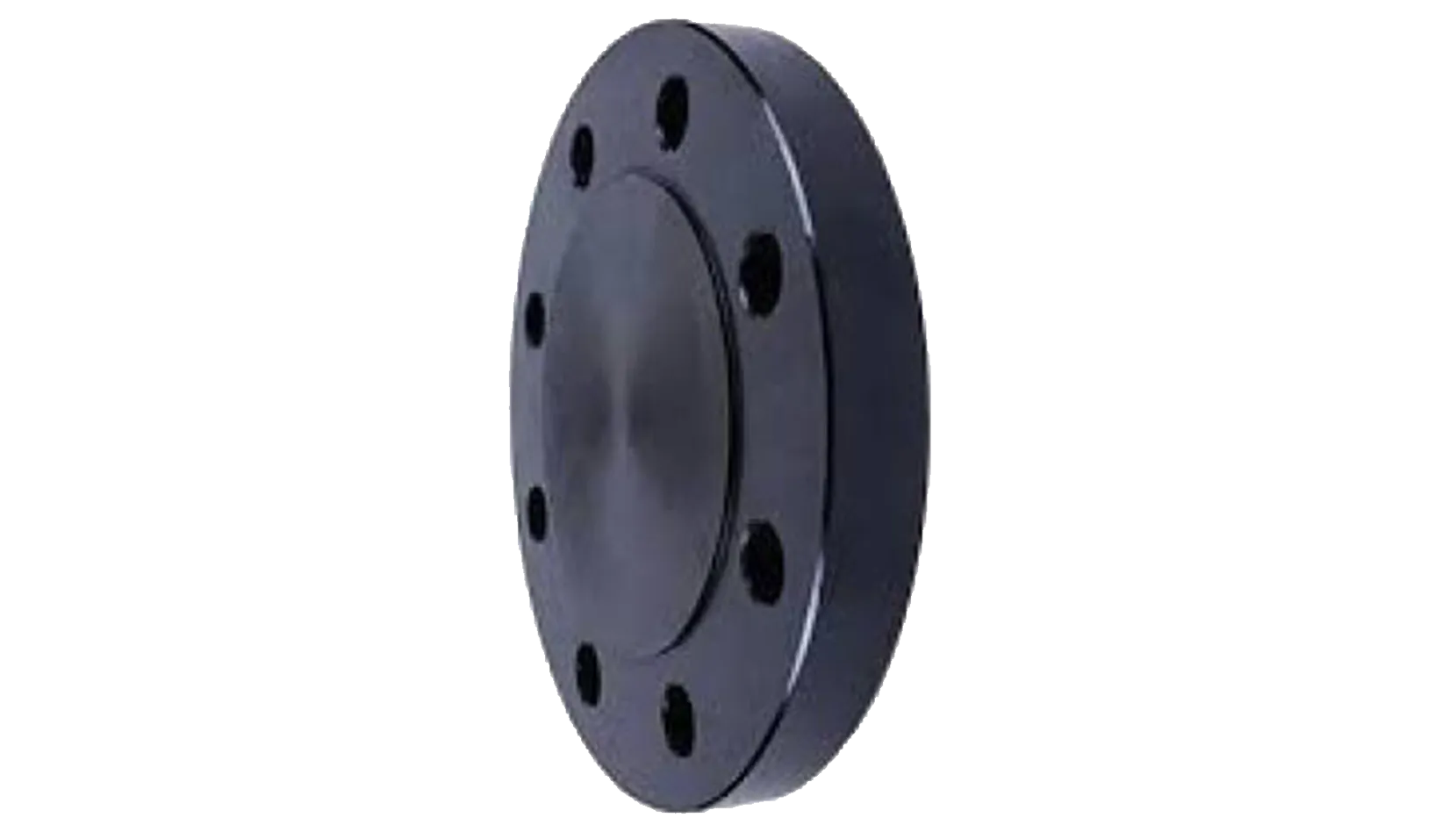

F60 Flanges can be supplied in Slip-On, Weld Neck, Blind, Threaded, Socket Weld, Lap Joint, RTJ, Long Weld Neck and Spectacle Blind configurations.
Ganpat Metal supplies ASTM A694 F60 Flanges from India to domestic and international industrial markets.
India
Brazil
New Zealand
Australia
Bangladesh
Malaysia
UAE
Saudi Arabia
Oman
Egypt
Spain
Russia
Kazakhstan
For projects requiring other high-yield grades within the same material family, Ganpat Metal also supplies a complete range of High Yield Carbon Steel Flanges in F42, F46, F52, F60, F65 and F70 grades for different piping and transmission requirements.
