Ganpat Metal manufactures and supplies ASTM A182 F9 Flanges in India for high-temperature and pressure applications. These alloy steel flanges are available in ½″ to 36″ sizes, pressure classes from 150# to 2500#, and multiple face and flange configurations.
| Specification | Details |
|---|---|
| Material Standard | ASTM A182 / ASME SA182 |
| Grade | ASTM A182 F9 |
| Size | ½″ to 36″ |
| Pressure Class | 150#, 300#, 600#, 900#, 1500#, 2500# |
| Pressure Rating | PN6, PN10, PN16, PN25, PN40, PN64 |
| Dimensions | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS10, EN-1092, DIN |
| Face Types | Flat Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| Standards | ANSI, ASME, BS, DIN, EN |
| Standard | Flange Types | Pressure Class |
|---|---|---|
| ASME/ANSI B16.5 | Welding Neck, Slip On, Blind, High Hub Blind, Socket Weld, Lap Joint, Threaded, RTJ | 150–2500 |
| ASME/ANSI B16.47 | Welding Neck, Blind, Series A & B | 75–900 |
| ASME/ANSI B16.36 | Welding Neck, Slip On, Threaded | 300–2500 |
| BS4504 Sec. 3.1 | Welding Neck, Hubbed Slip On, Hubbed Threaded, Lapped Pipe End, Plate, Loose Plate, Blank | PN2.5–PN40 |
| BS4504 Part 1 | Welding Neck, Hubbed Slip-On, Hubbed Threaded, Plate, Blank | PN2.5–PN400 |
| BS1560 BOSS | Welding Neck, Socket Welding, Slip-On, Blind, Screwed Boss, Lapped | 150–2500 |
| BS10 | Welding Neck, Plate Slip-On, Screwed Boss, Slip-On Boss, Blind | Tables D, E, F, H |
| DIN | DIN 2527, 2566, 2573, 2576, 2641, 2642, 2655, 2656, 2627–2638, 2673 | PN6–PN100 |
| Grade | C | Mn | Si | S | P | Cr | Mo |
|---|---|---|---|---|---|---|---|
| A182 F9 | 0.15 | 0.3–0.6 | 0.5–1.0 | 0.03 | 0.03 | 8–10 | 0.9–1.1 |
| Grade | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation |
|---|---|---|---|
| A182 F9 | 380 | 585 | 20% |
Select Flange options below and click the "Calculate Weight" button to reveal exact weight.

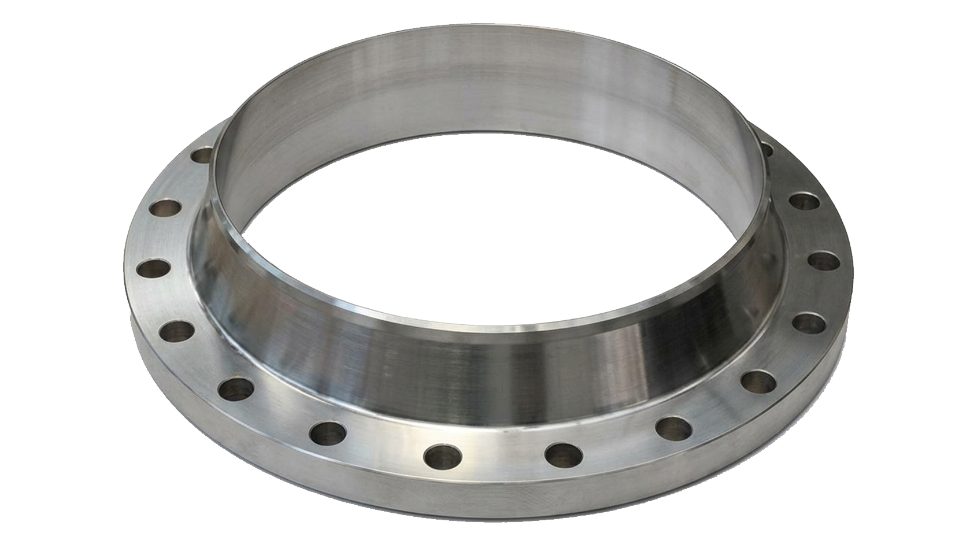

For standard piping connections and easy installation.

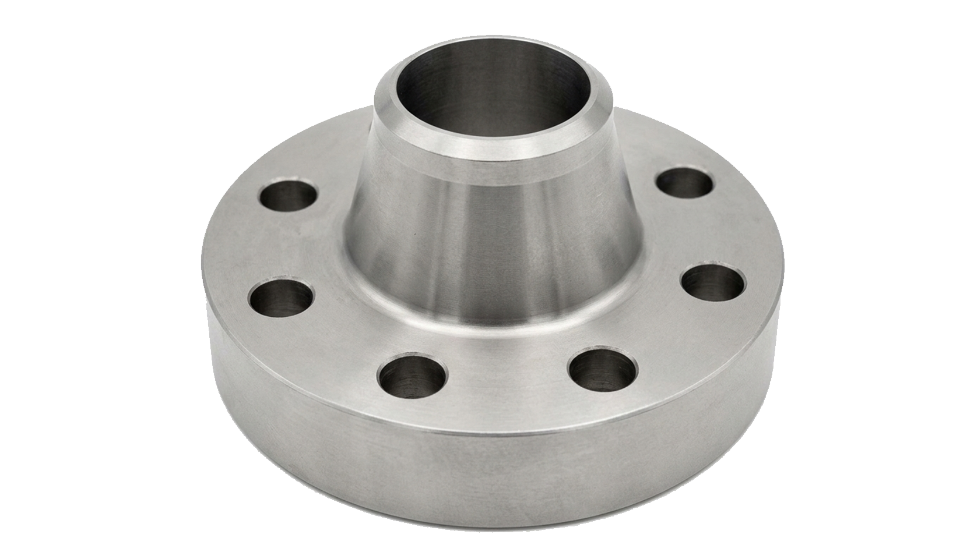

For smaller-diameter high-pressure piping.

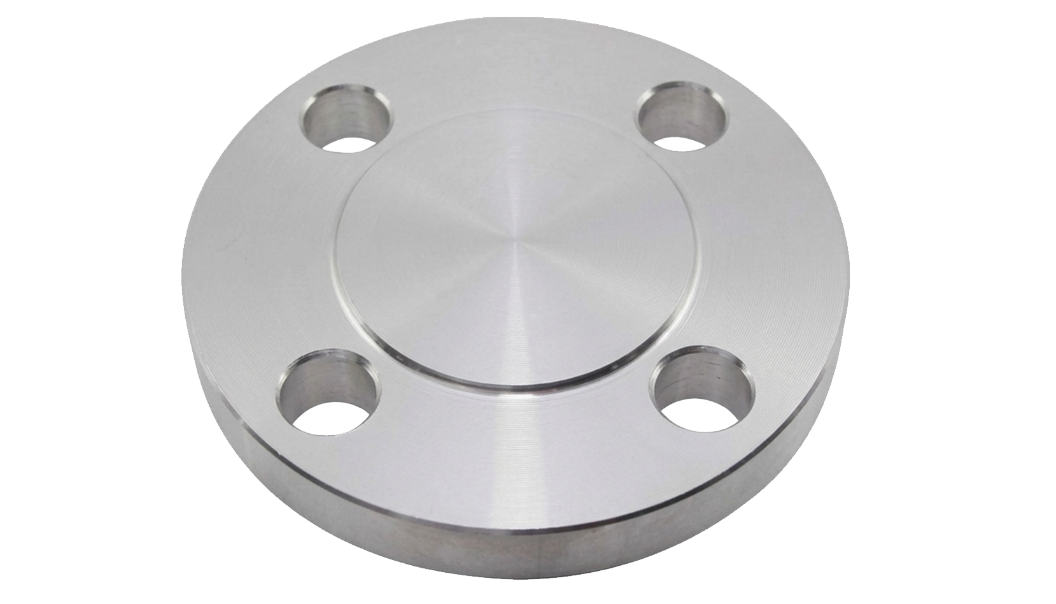

For closing pipe ends, valves and equipment nozzles.

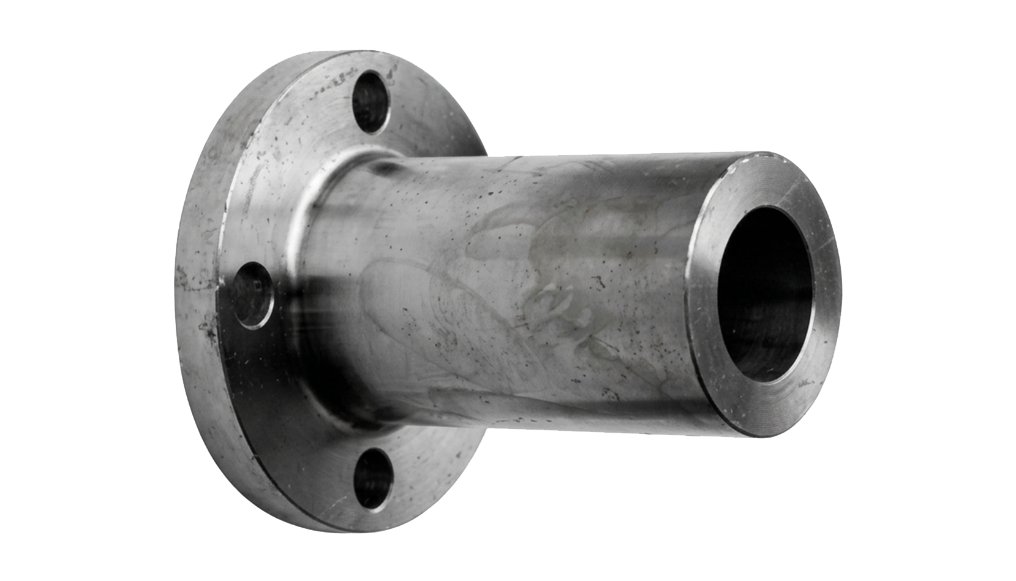

For high-pressure and high-temperature piping connections.

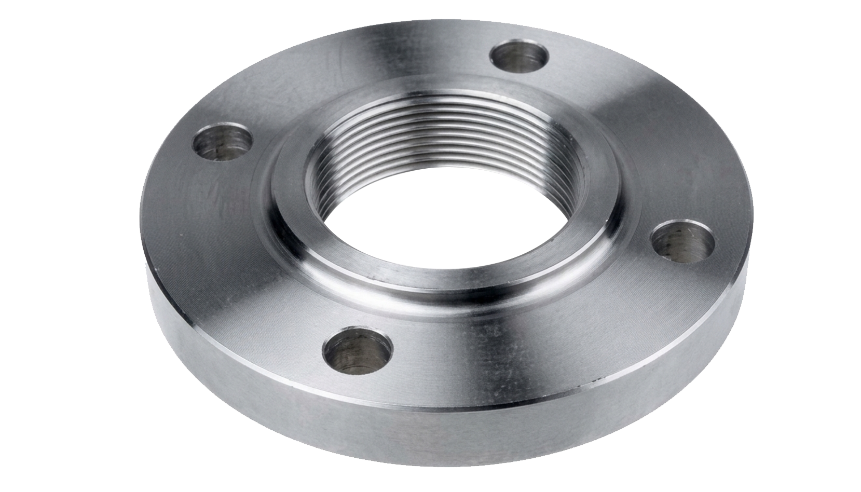

For threaded piping arrangements.

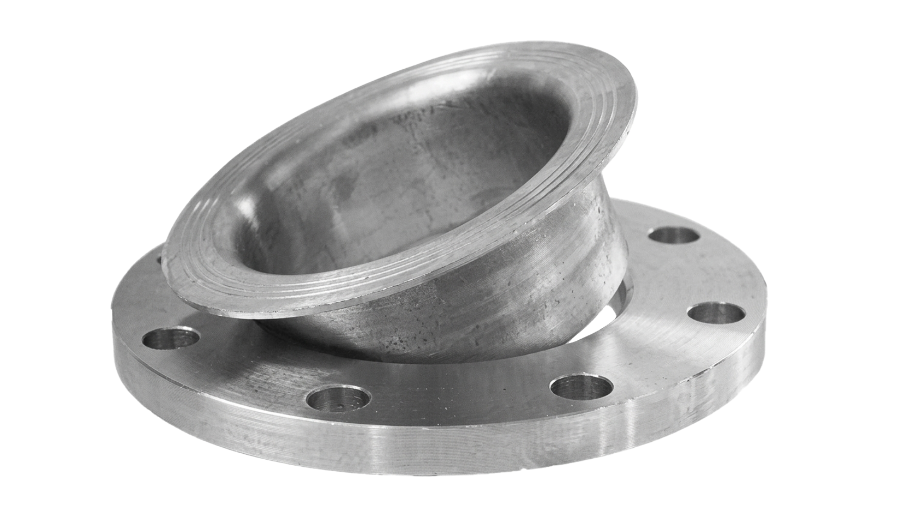

For systems requiring frequent dismantling.
For applications requiring an extended hub.

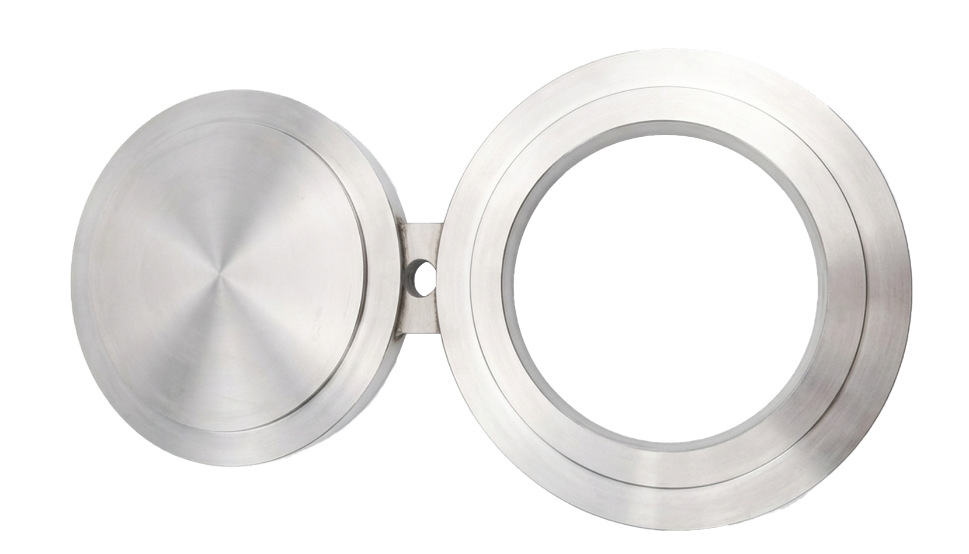

For positive line isolation.
For suitable piping and fabrication requirements.

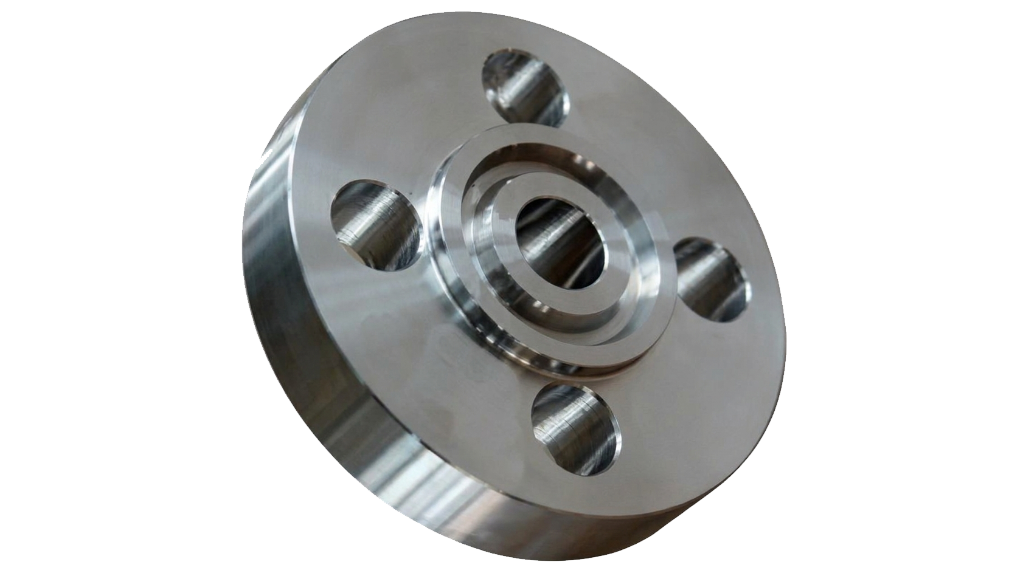

For high-pressure sealing applications.

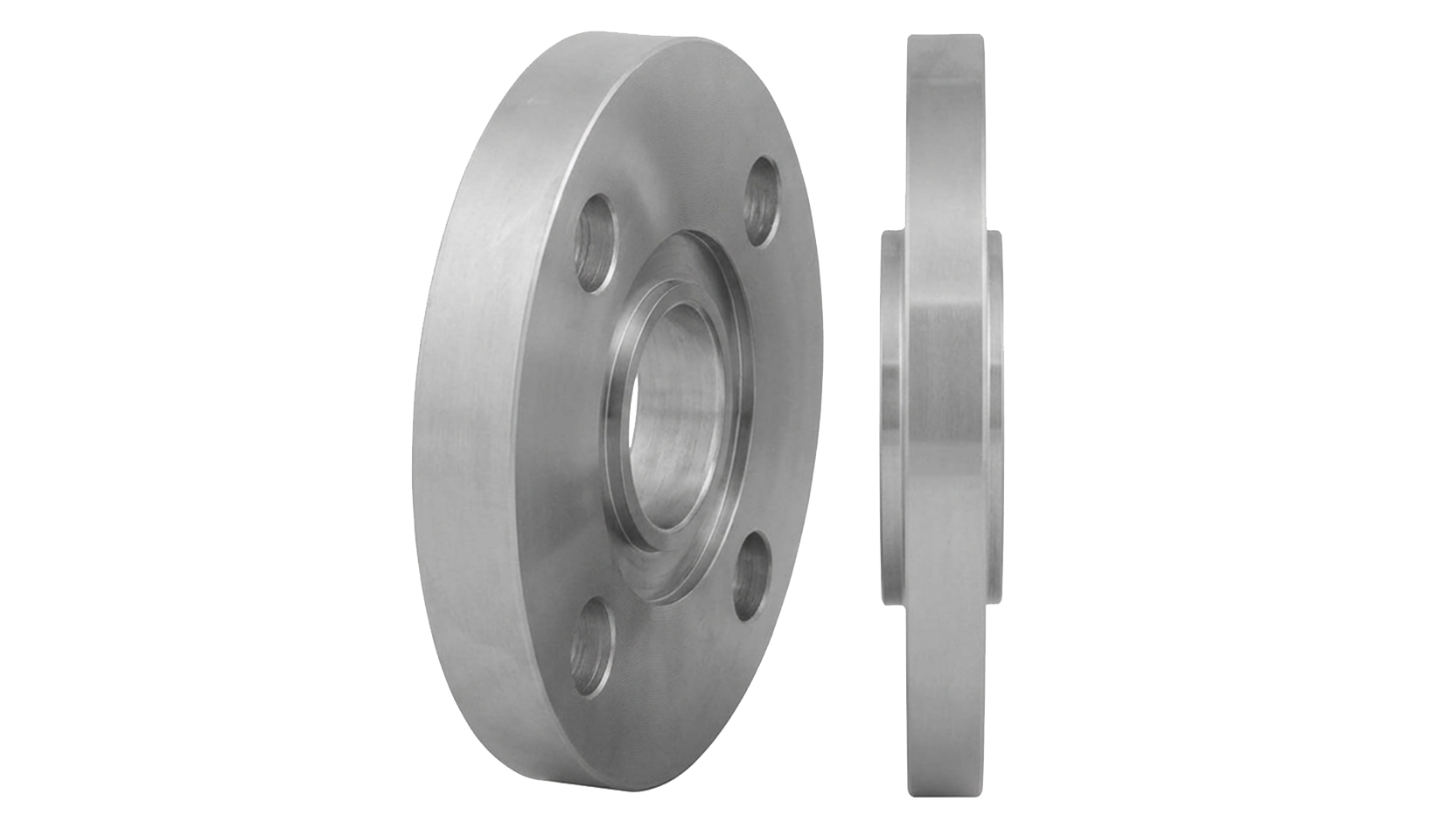

For controlled gasket positioning.

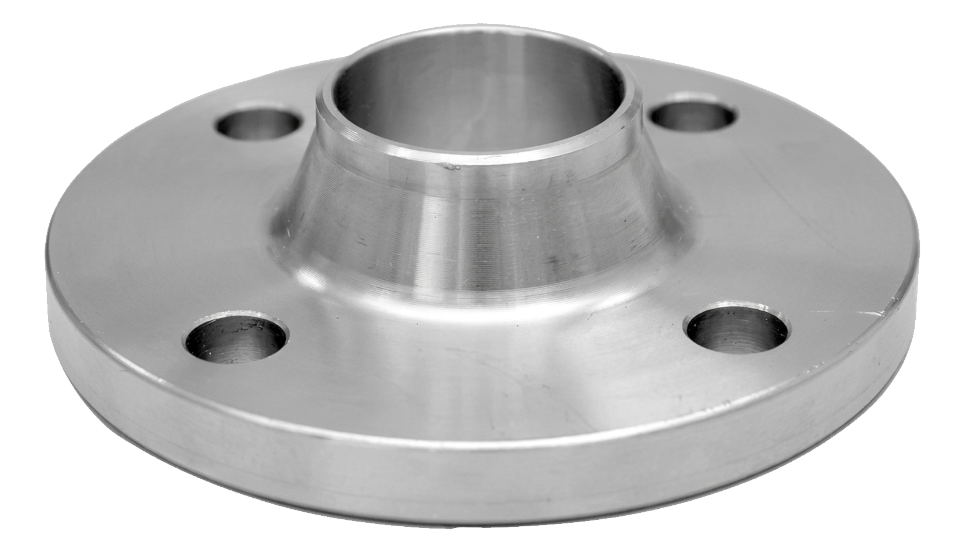

For connecting different pipe sizes.
ASTM A182 F9 flanges are supplied from ½″ to 36″ in pressure classes including:
Final dimensions and pressure selection depend on the applicable flange standard, nominal size, class and face configuration.
F9 flange dimensions can be supplied according to applicable standards including ASME B16.5, ASME B16.47 Series A & B, ASME B16.48, BS4504, BS10, EN-1092 and DIN.
Dimensional requirements can include outside diameter, bolt circle diameter, bolt-hole arrangement, flange thickness, bore and facing dimensions according to the selected standard and size.
Ganpat Metal manufactures ASTM A182 F9 flanges using forging and machining processes appropriate to the specified flange design and applicable material standard.
Manufacturing can cover:
Flanges are produced according to the required size, pressure class, face type, flange configuration and dimensional standard.
Inspection and testing are carried out according to the applicable specification and purchase requirements.
Available inspection stages can include:
Inspection documents can be provided according to the agreed order and specification requirements.
ASTM A182 F9 flanges are used in:
Ganpat Metal manufactures and supplies ASTM A182 F9 Flanges in India in different flange types, sizes, pressure classes and face configurations. Orders can be specified according to the required ASTM A182 / ASME SA182 material grade and applicable dimensional standard.
We supply F9 flanges for industrial piping, process equipment and high-temperature applications with inspection and documentation based on project or purchase requirements.
