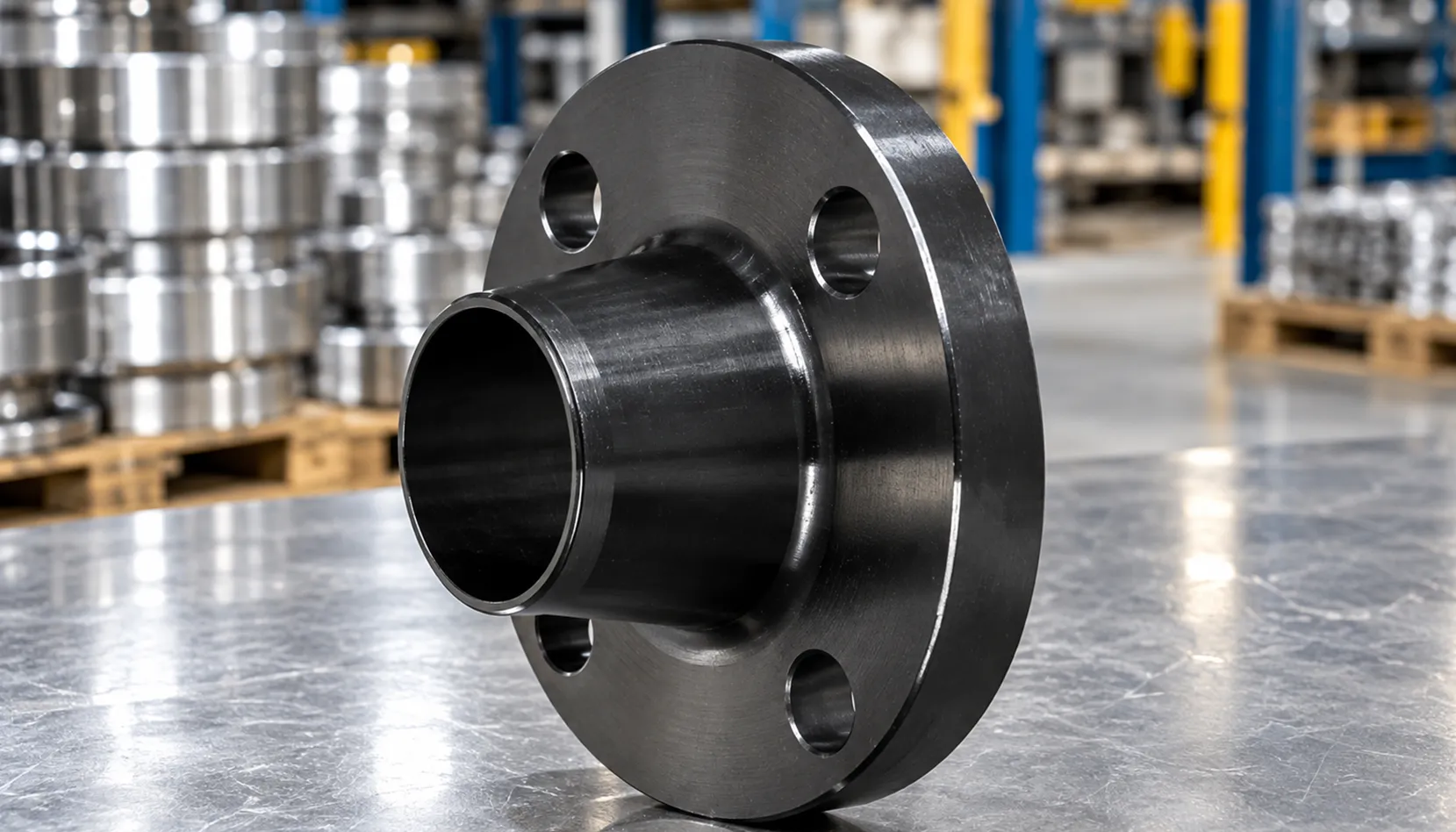

Ganpat Metal manufactures and supplies ASTM A694 F52 Flanges as per ASTM A694 / ASME SA694 for high-pressure piping, transmission lines, process systems and industrial applications. These F52 flanges are supplied in sizes from 1/2" to 36", with pressure classes from 150# to 2500# and PN6 to PN64 ratings.

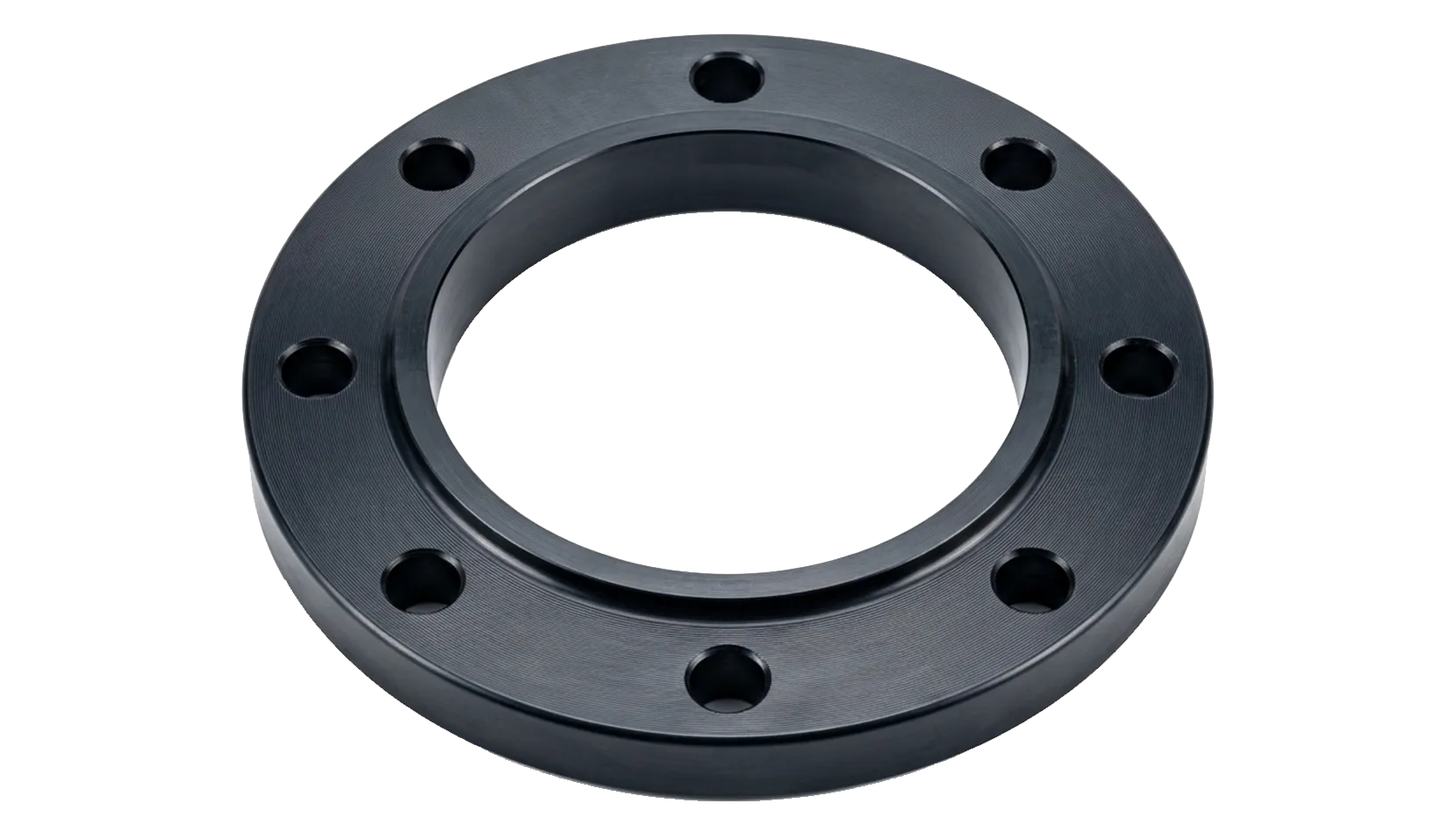

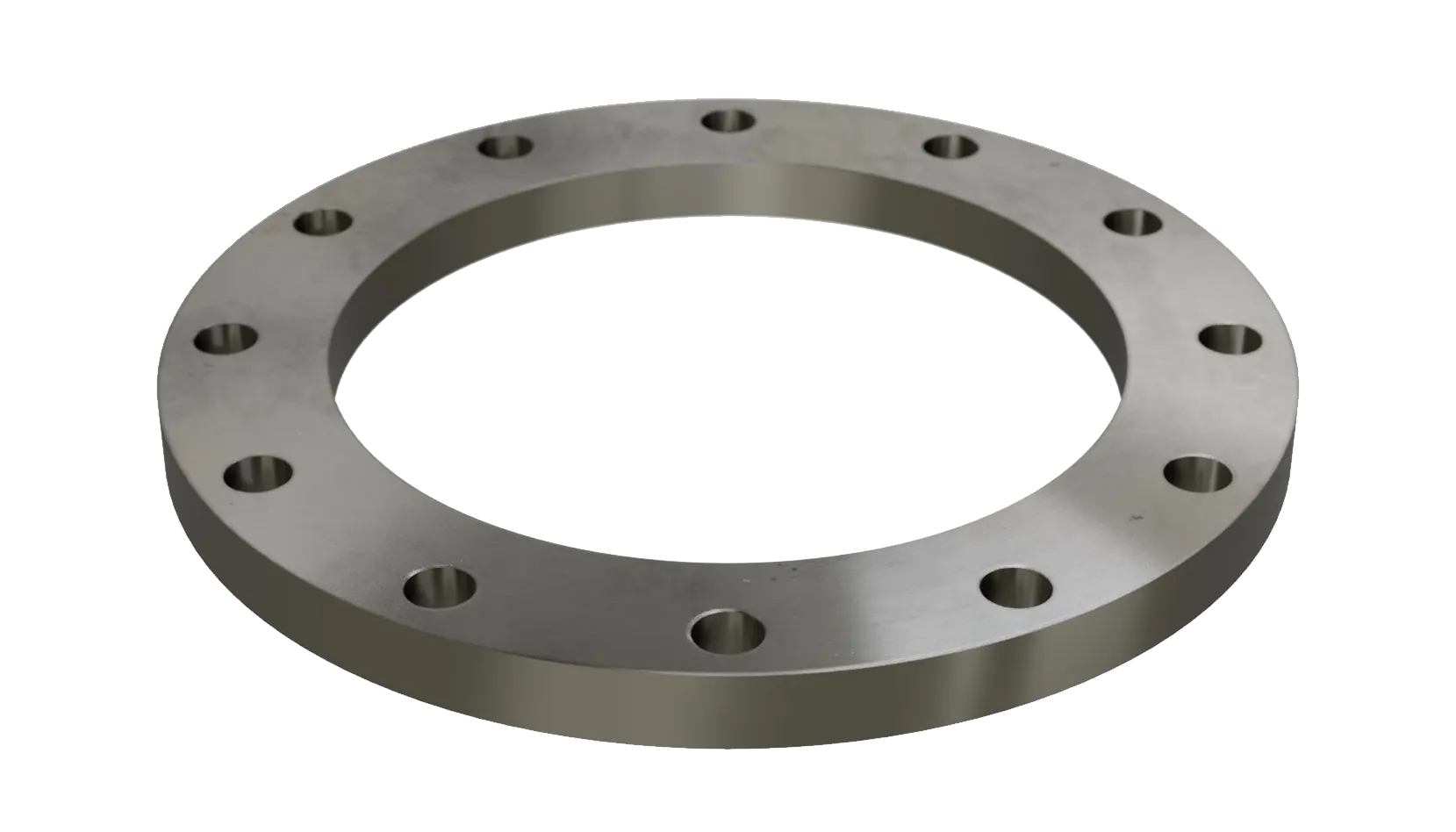

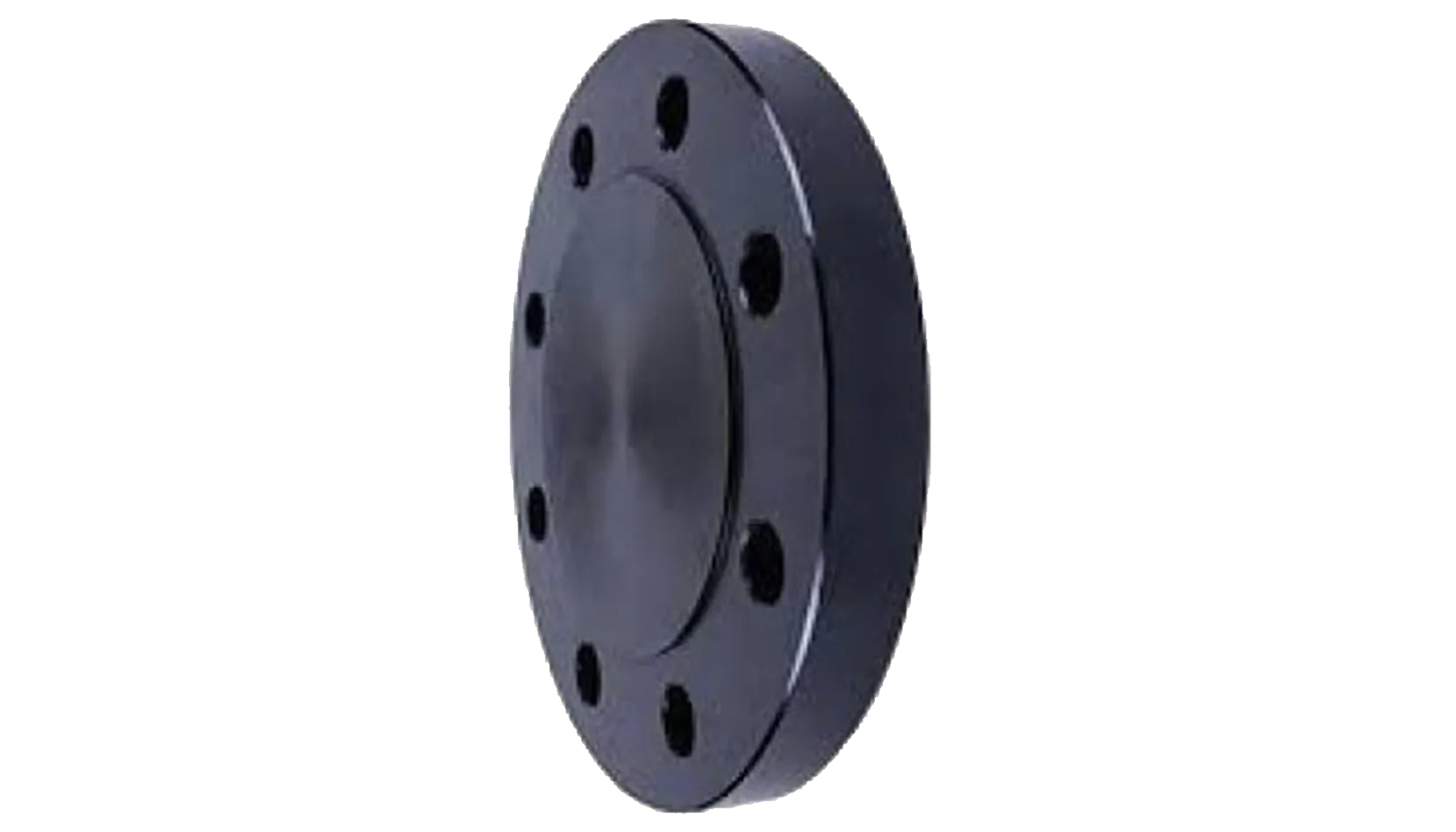

ASTM A694 F52 Flanges are available in Weld Neck, Slip-On, Blind, Threaded, Socket Weld, Lap Joint, RTJ and other configurations with Flat Face (FF), Raised Face (RF) and Ring Type Joint (RTJ) options.
| Specification | Details |
|---|---|
| Material Standard | ASTM A694 / ASME SA694 |
| Grade | F52 |
| Material | Carbon Steel |
| Size Range | 1/2" to 36" |
| Pressure Classes | 150#, 300#, 600#, 900#, 1500#, 2500# |
| PN Ratings | PN6, PN10, PN16, PN25, PN40, PN64 |
| Dimensions | ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS10, EN1092, DIN |
| Face Types | FF, RF, RTJ |
| Standards | ASTM, ASME, ANSI, BS, DIN, EN |
| Flange Types | Weld Neck, Slip-On, Blind, Threaded, Socket Weld, Lap Joint, RTJ and others |
| Element | ASTM A694 F52 |
|---|---|
| Carbon (C) | 0.26–0.265% |
| Manganese (Mn) | 1.60–1.64% |
| Phosphorus (P) | 0.025–0.030% |
| Sulfur (S) | 0.025–0.030% |
| Silicon (Si) | 0.15–0.35% |
| Property | ASTM A694 F52 |
|---|---|
| Tensile Strength | 415 MPa |
| Yield Strength | 315 MPa |
| Elongation | 20% |
ASTM A694 F52 Flanges are manufactured according to the applicable dimensional standard, nominal size, pressure class and flange configuration.
| Standard | Applicable Configurations |
|---|---|
| ASME B16.5 | Welding Neck, Slip-On, Blind, Socket Weld, Lap Joint, Threaded, RTJ |
| ASME B16.47 Series A & B | Welding Neck, Blind |
| ASME B16.48 | Line Blanks |

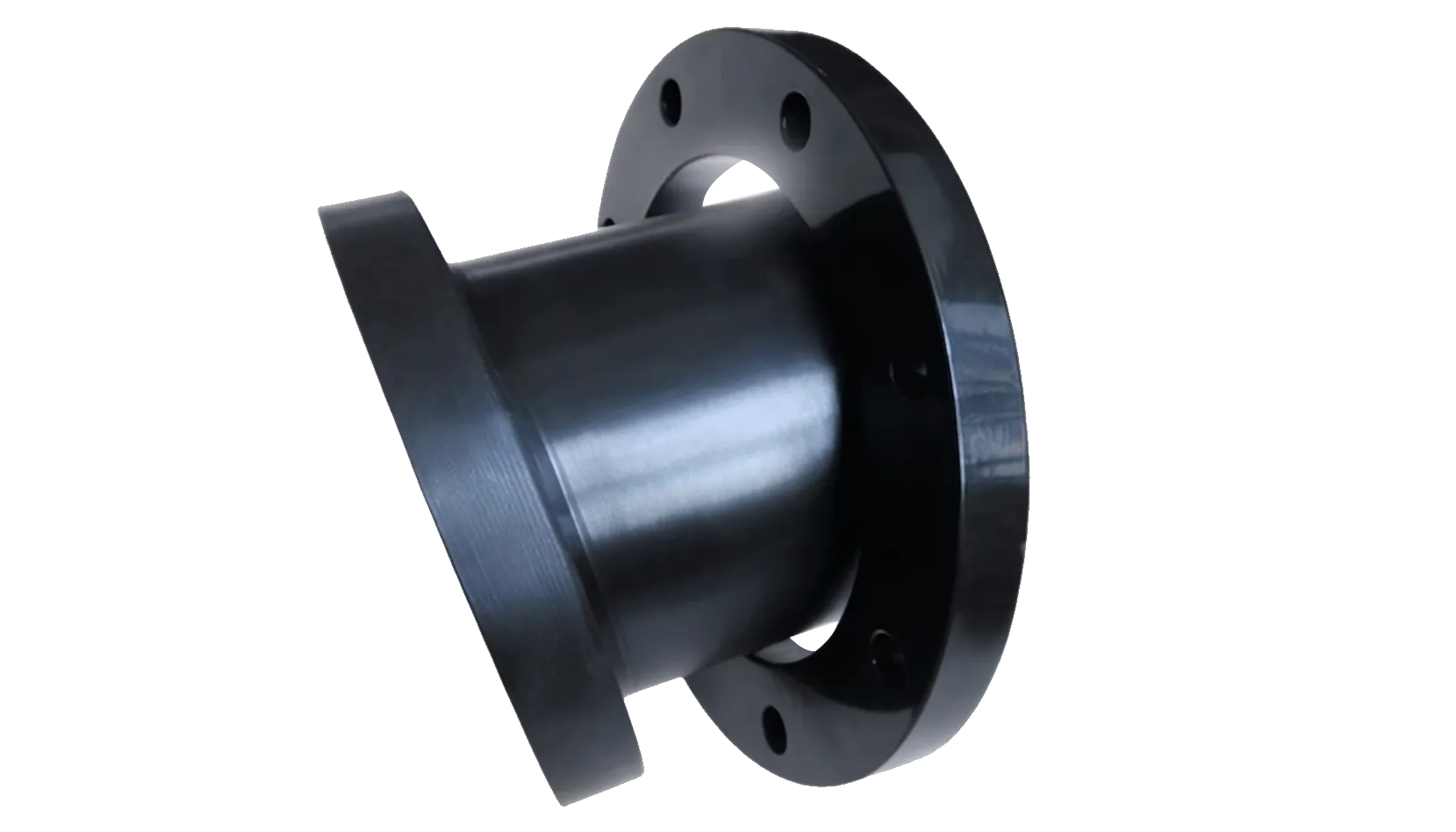

| ASME B16.36 | Orifice Flanges |
| BS4504 | Welding Neck, Hubbed Slip-On, Hubbed Threaded, Plate, Blank and others |
| BS10 | Welding Neck, Plate Slip-On, Screwed Boss, Slip-On Boss, Blind |
| EN1092 | European dimensional flange standards |
| DIN | DIN-series flange standards |
ASTM A694 F52 Flanges are supplied in different pressure classes and PN ratings according to the applicable dimensional standard.
| Standard | Pressure Class / Rating |
|---|---|
| ASME B16.5 | 150# to 2500# |
| ASME B16.47 | 75# to 900# |
| ASME B16.36 | 300# to 2500# |
| BS4504 | PN2.5 to PN40 |
| DIN | PN6 to PN100 |
| Product Range | 150# to 2500#, PN6 to PN64 |
| Face Type | Abbreviation |
|---|---|
| Flat Face | FF |
| Raised Face | RF |
| Ring Type Joint | RTJ |
The finished weight of an ASTM A694 F52 Flange depends on its size, flange type, pressure class, thickness, bore and dimensional standard.
For an exact F52 flange weight, the required size, type, pressure class and dimensional standard should be specified.
Ganpat Metal supplies ASTM A694 F52 Flanges in configurations suited to different piping connections and equipment requirements.
ASTM A694 F52 Flanges are manufactured and machined according to the specified material grade, dimensions, pressure class and flange configuration.
1/2" to 36" size range with ASME B16.5, B16.47 Series A & B for large-diameter requirements, Class 150 to Class 2500, PN6 to PN64, and FF, RF, RTJ face configurations.
Ganpat Metal is an ASTM A694 F52 Flanges Manufacturer in India, supplying F52 Carbon Steel Flanges for piping, pipeline, transmission and industrial projects.
The F52 range includes 1/2" to 36" sizes, 150# to 2500# pressure classes and PN6 to PN64 ratings. Flanges are supplied with FF, RF and RTJ faces according to the specified configuration.

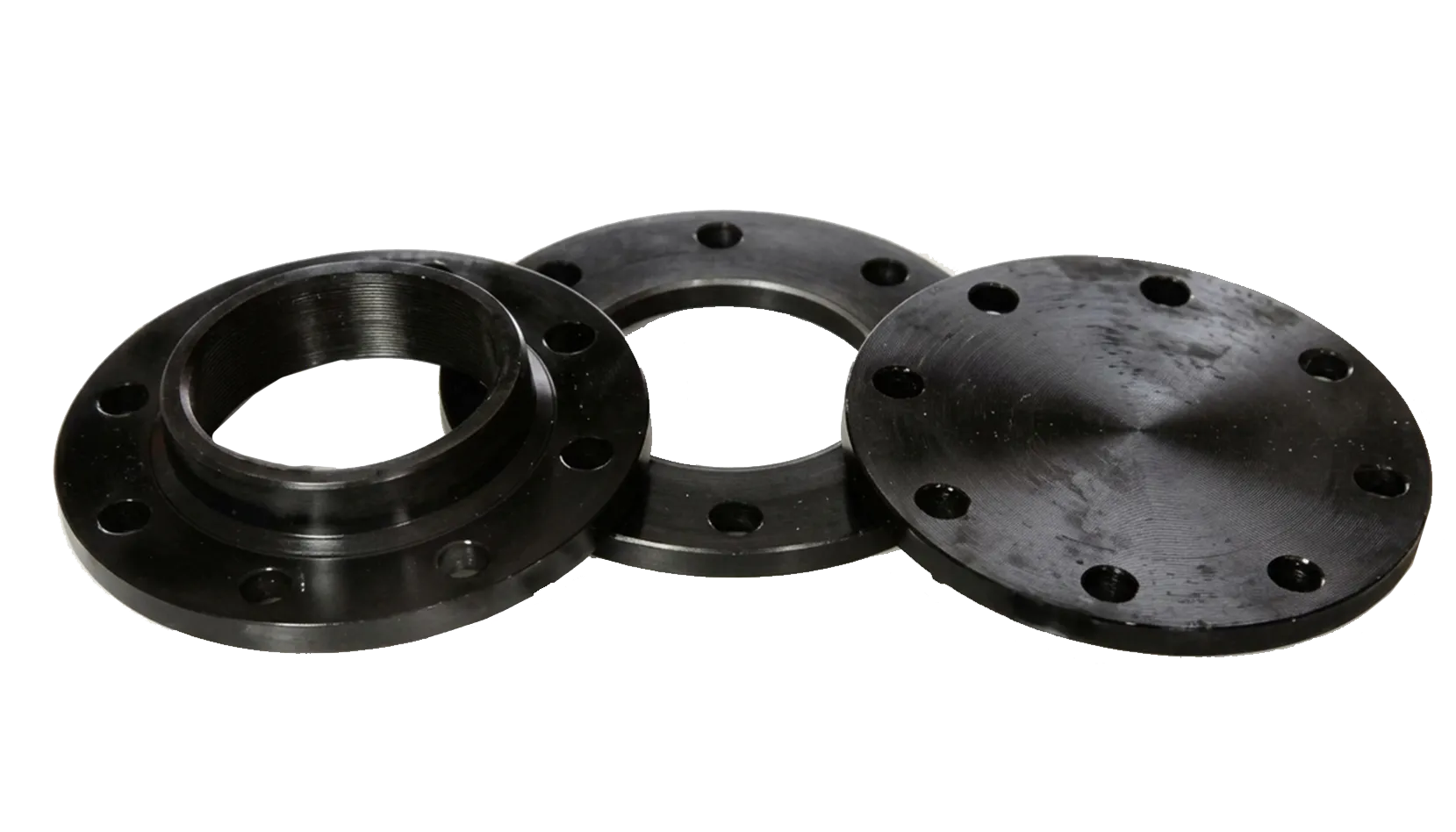

F52 Flanges can be supplied in Weld Neck, Slip-On, Blind, Threaded, Socket Weld, Lap Joint, RTJ, Long Weld Neck and other configurations.
India
Brazil
New Zealand
Australia
Bangladesh
Malaysia
UAE
Saudi Arabia
Oman
Egypt
Spain
Russia
Kazakhstan
For projects requiring other high-yield grades within the same material family, Ganpat Metal also supplies a complete range of High Yield Carbon Steel Flanges in F42, F46, F52, F60, F65 and F70 grades for different piping and transmission requirements.
Share the following details with Ganpat Metal for an accurate quotation:
For other high-yield carbon steel flange grades and configurations, visit our High Yield Carbon Steel Flanges category page to view the broader product range.
