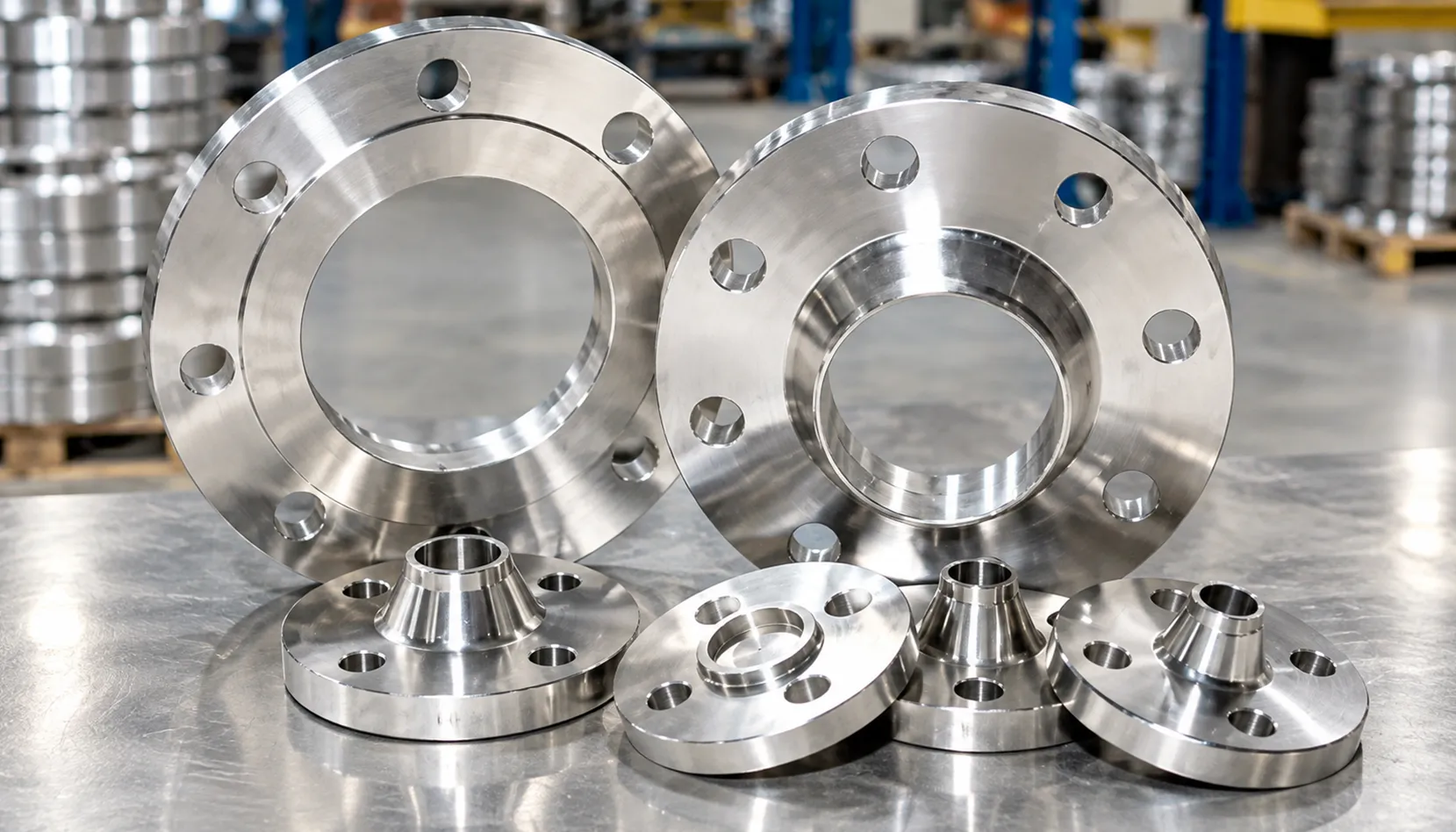

Ganpat Metal Pvt. Ltd. supplies Hastelloy C276 flanges as per ASTM B564 / ASME SB564 for industrial piping, process equipment and project-specific flange requirements. Hastelloy C276 flanges are supplied in 1/2" to 48" sizes, with ASME pressure classes from 150# to 2500#, PN ratings and multiple flange types and face configurations.
| Specification | Details |
|---|---|
| Material Specification | ASTM B564 / ASME SB564 |
| Grade | Hastelloy C276 |
| UNS | N10276 |
| Werkstoff No. | 2.4819 |
| Size Range | 1/2" (15 NB) to 48" (1200 NB) |
| ASME Pressure Classes | 150#, 300#, 600#, 900#, 1500#, 2500# |
| PN Ratings | PN6, PN10, PN16, PN25, PN40, PN64 |
| Flange Face Types | Flat Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |

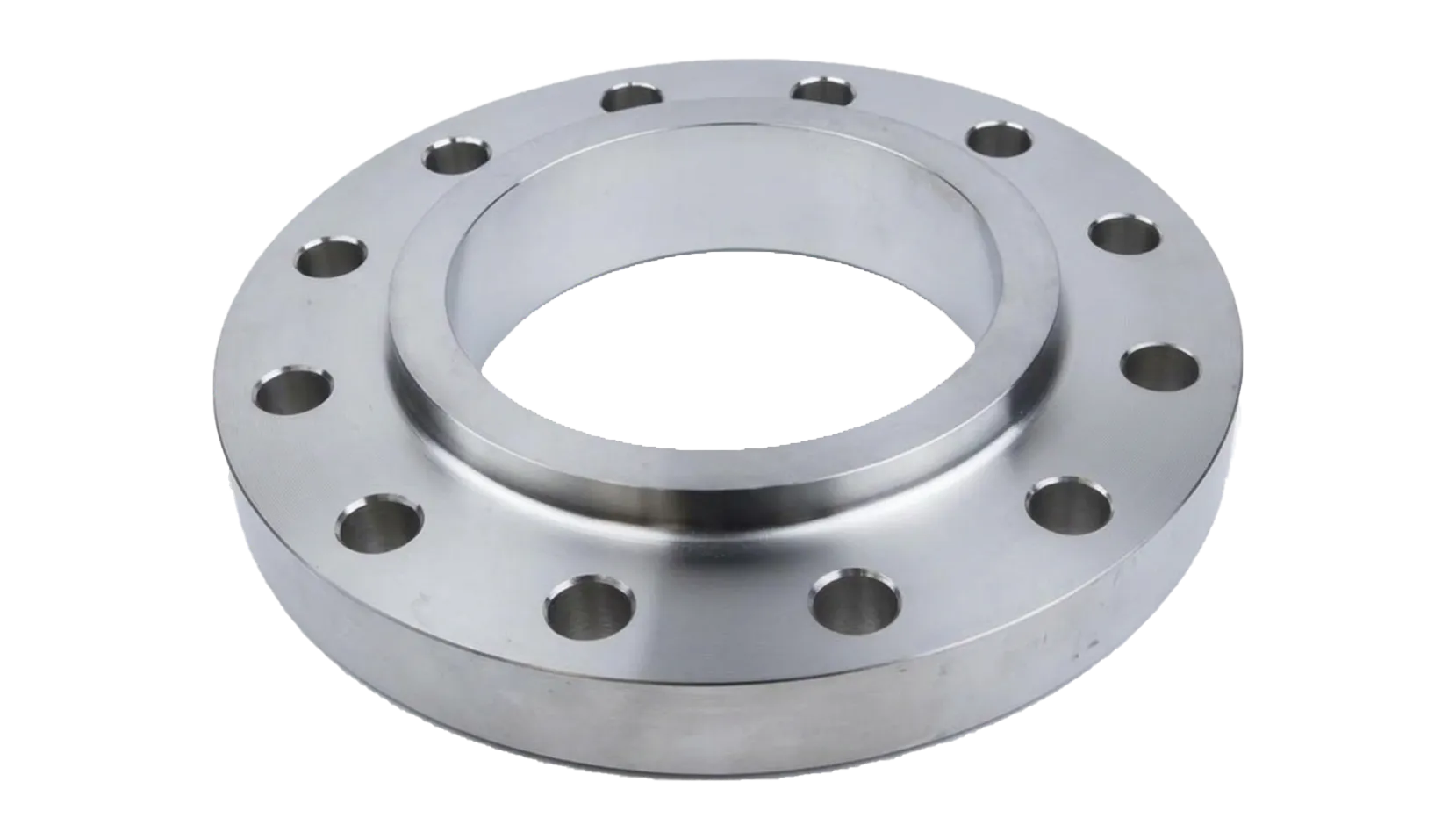

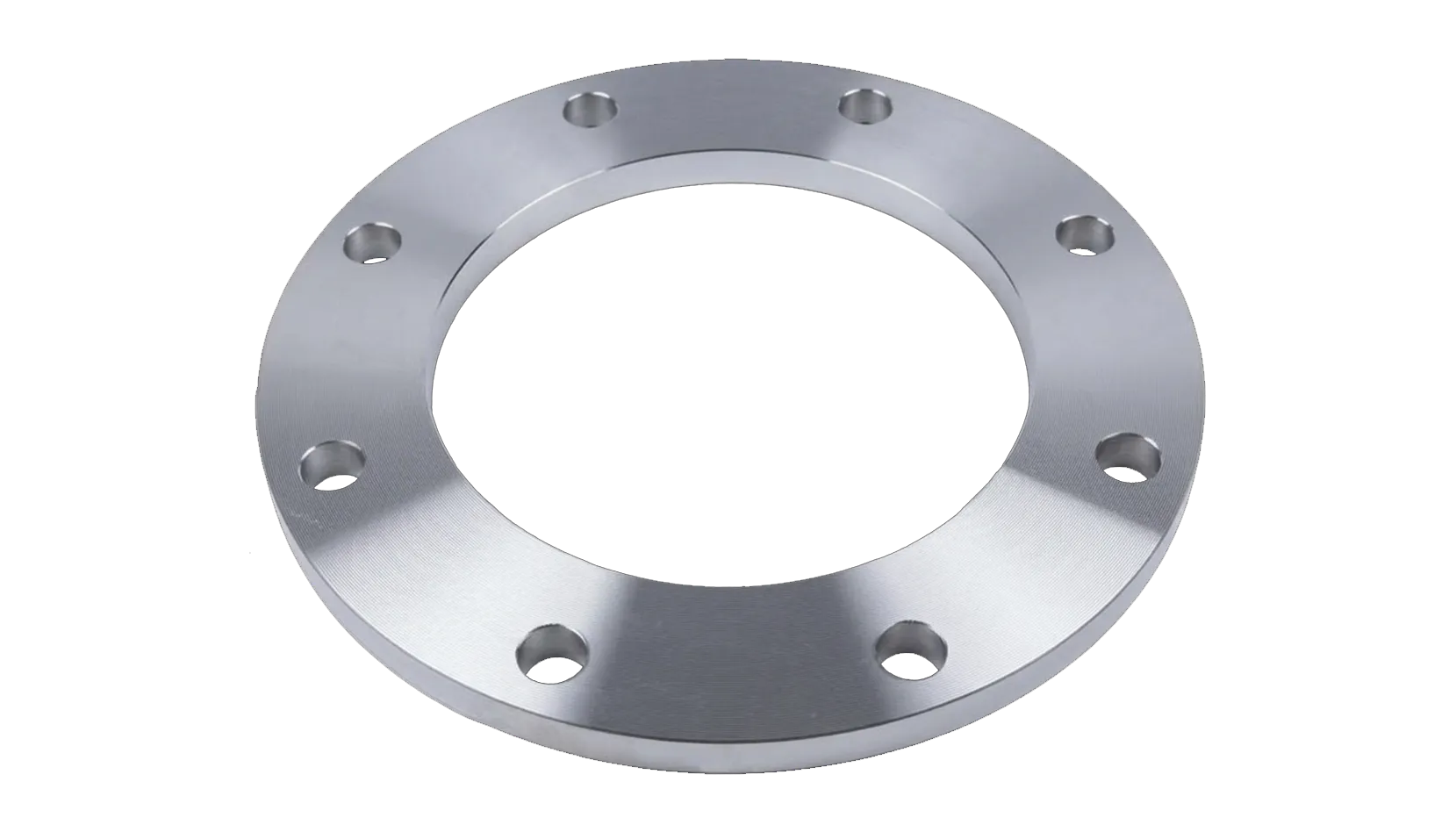

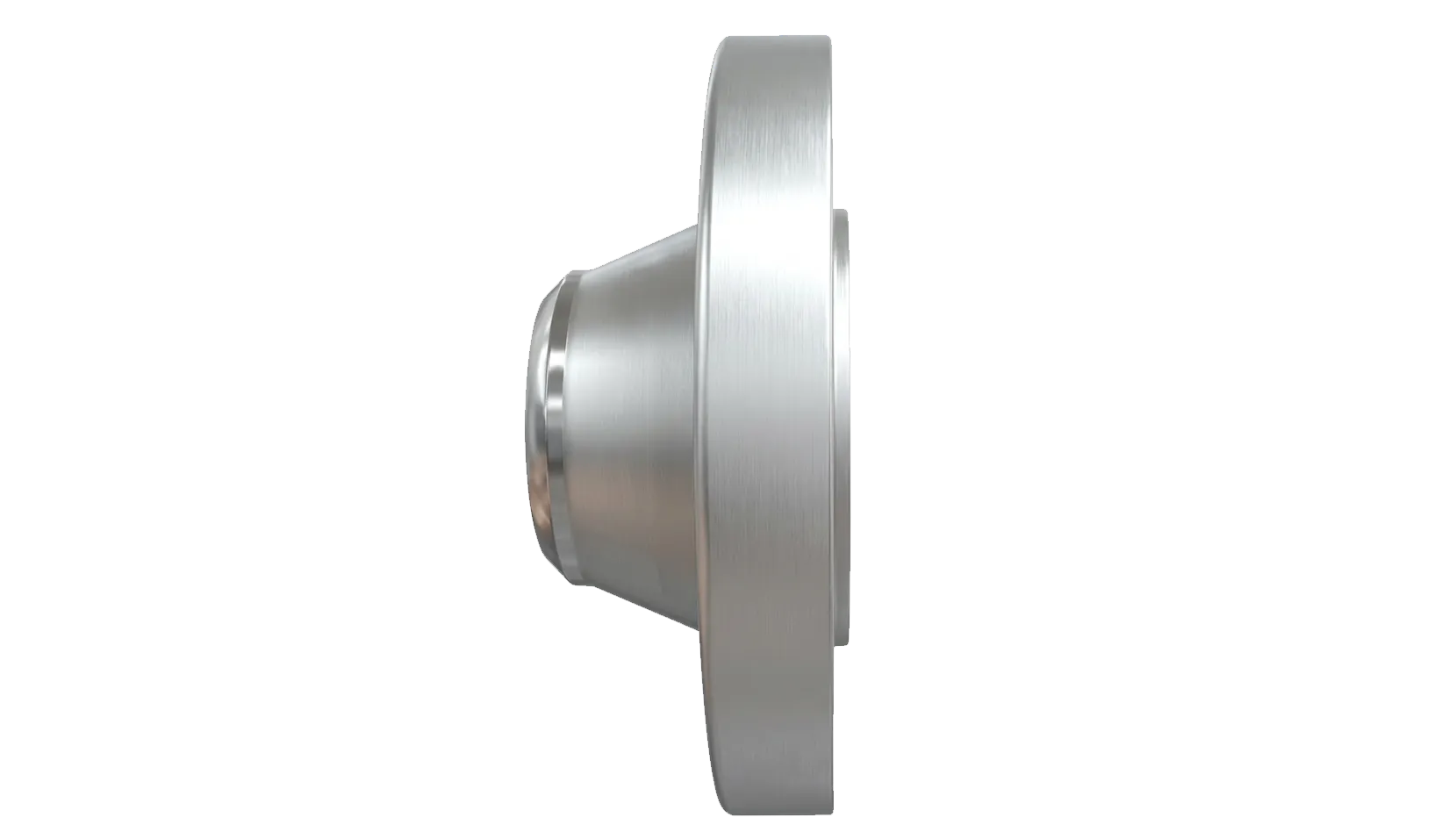

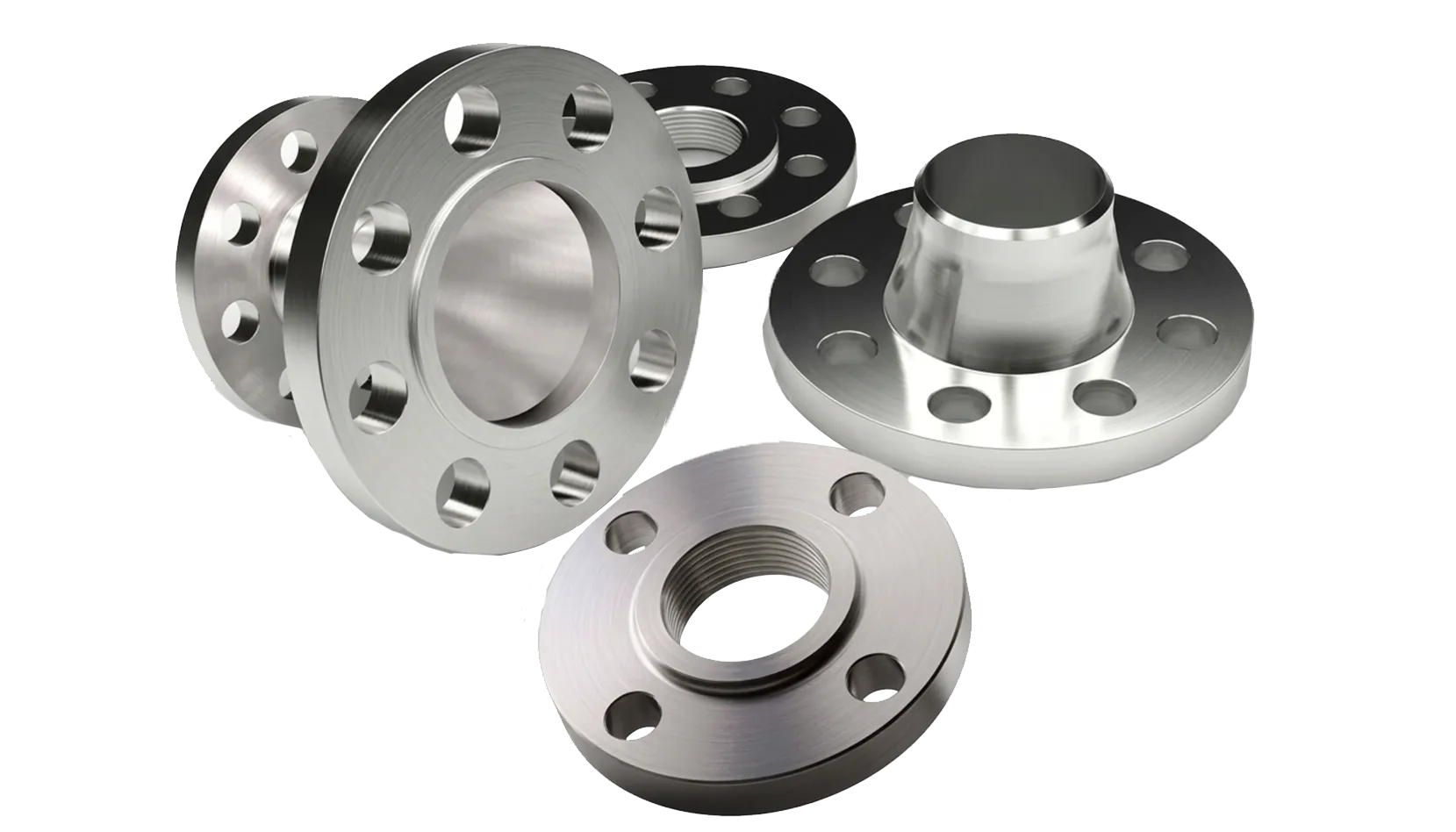

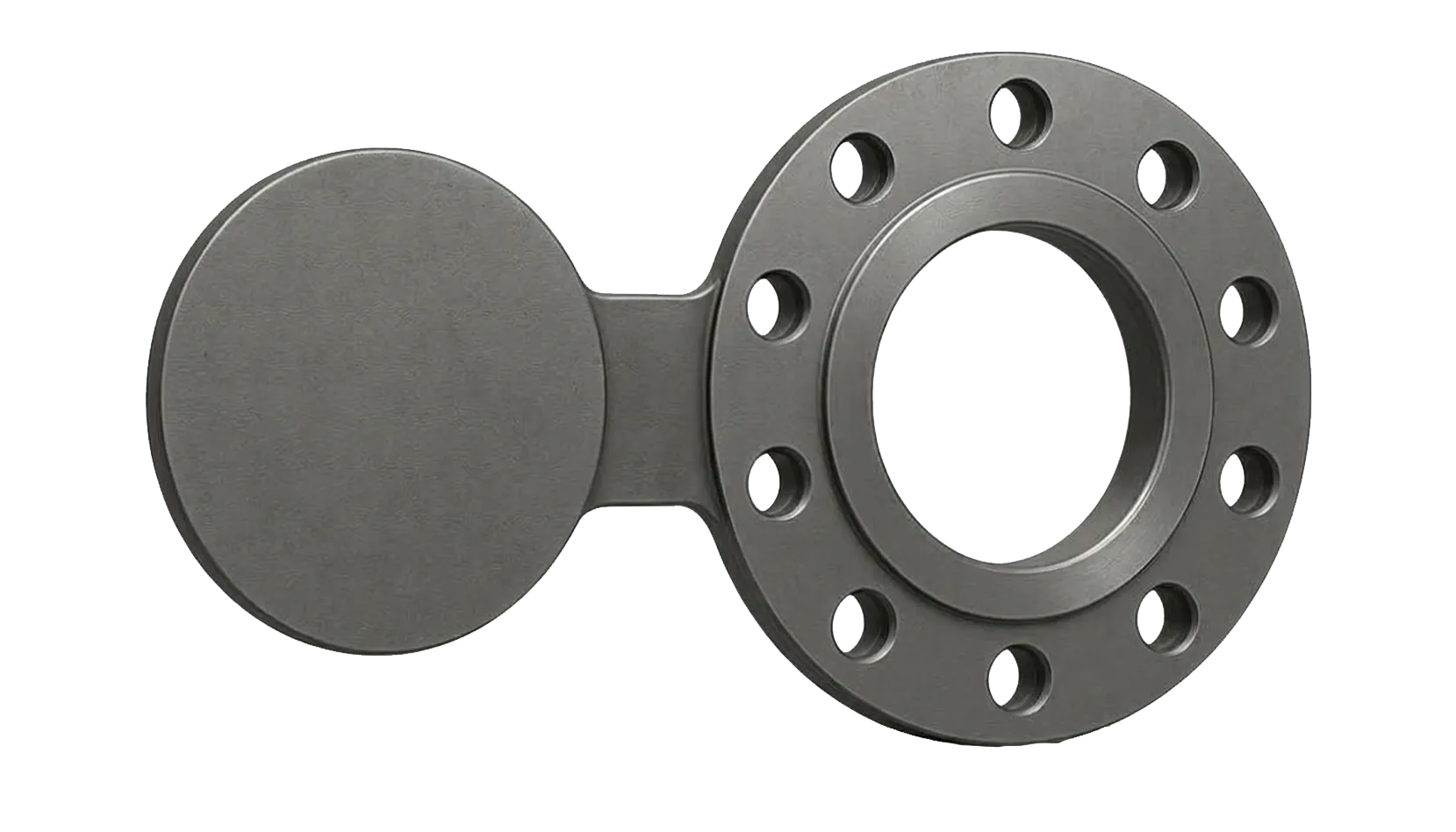

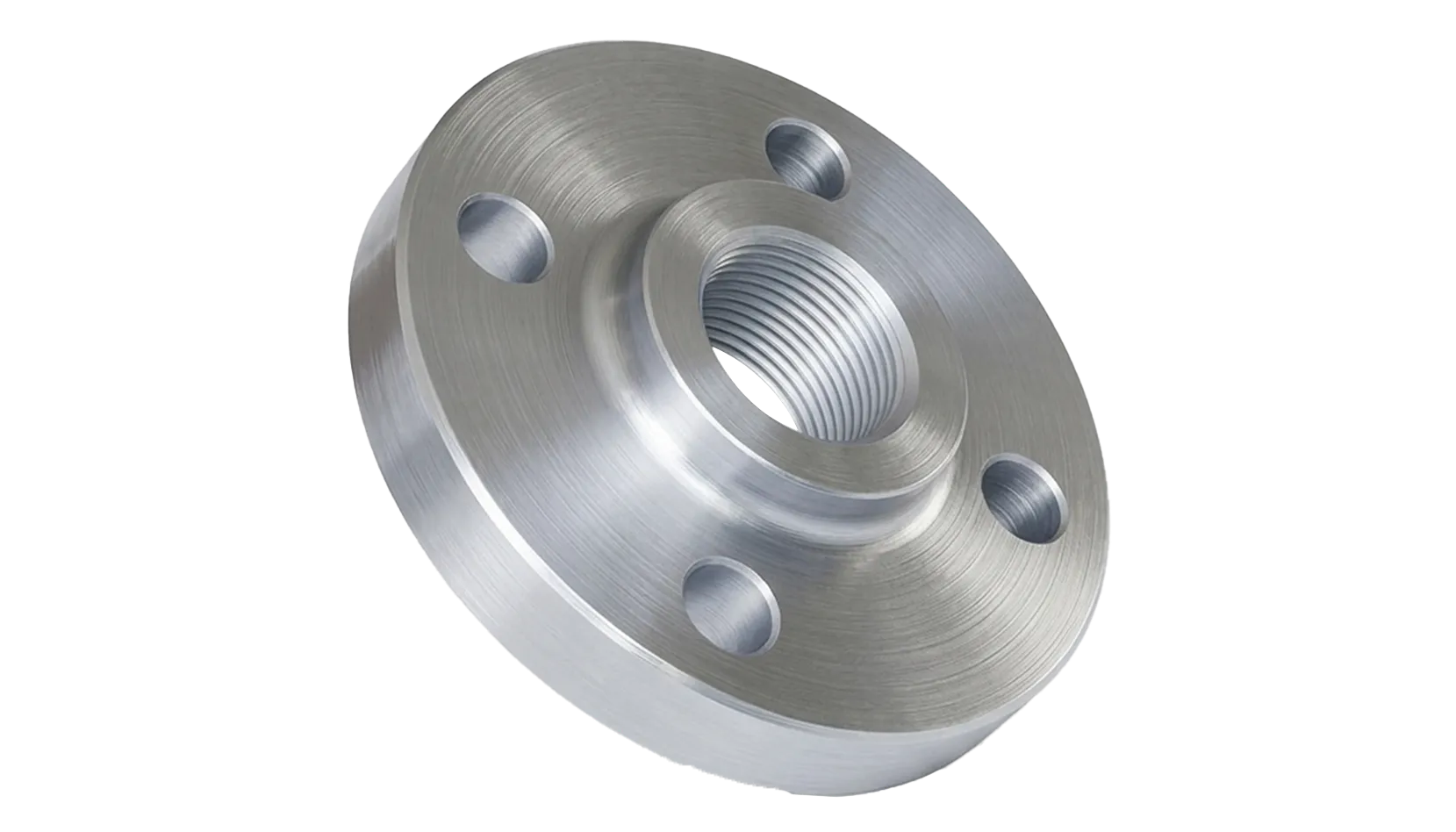

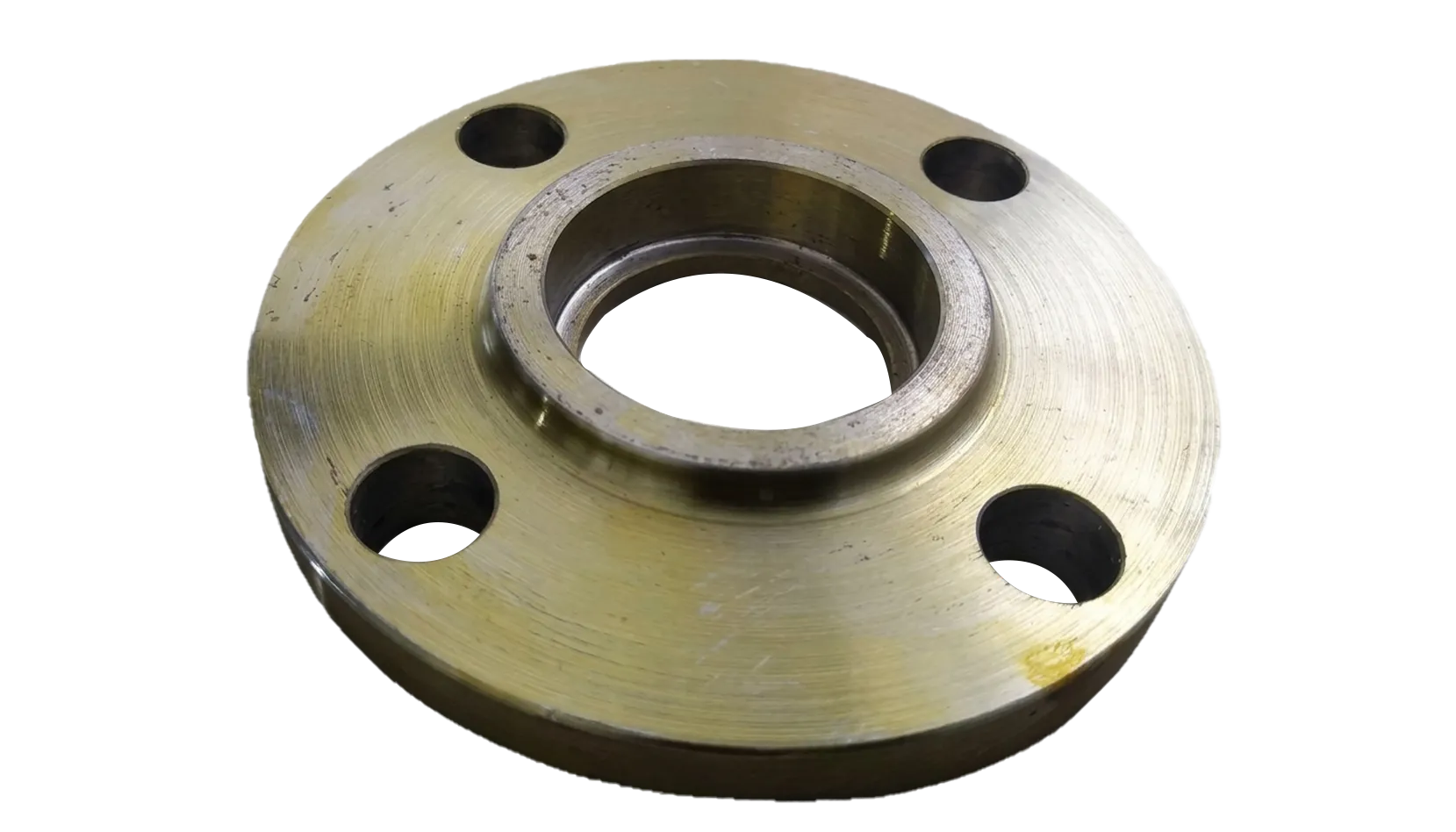

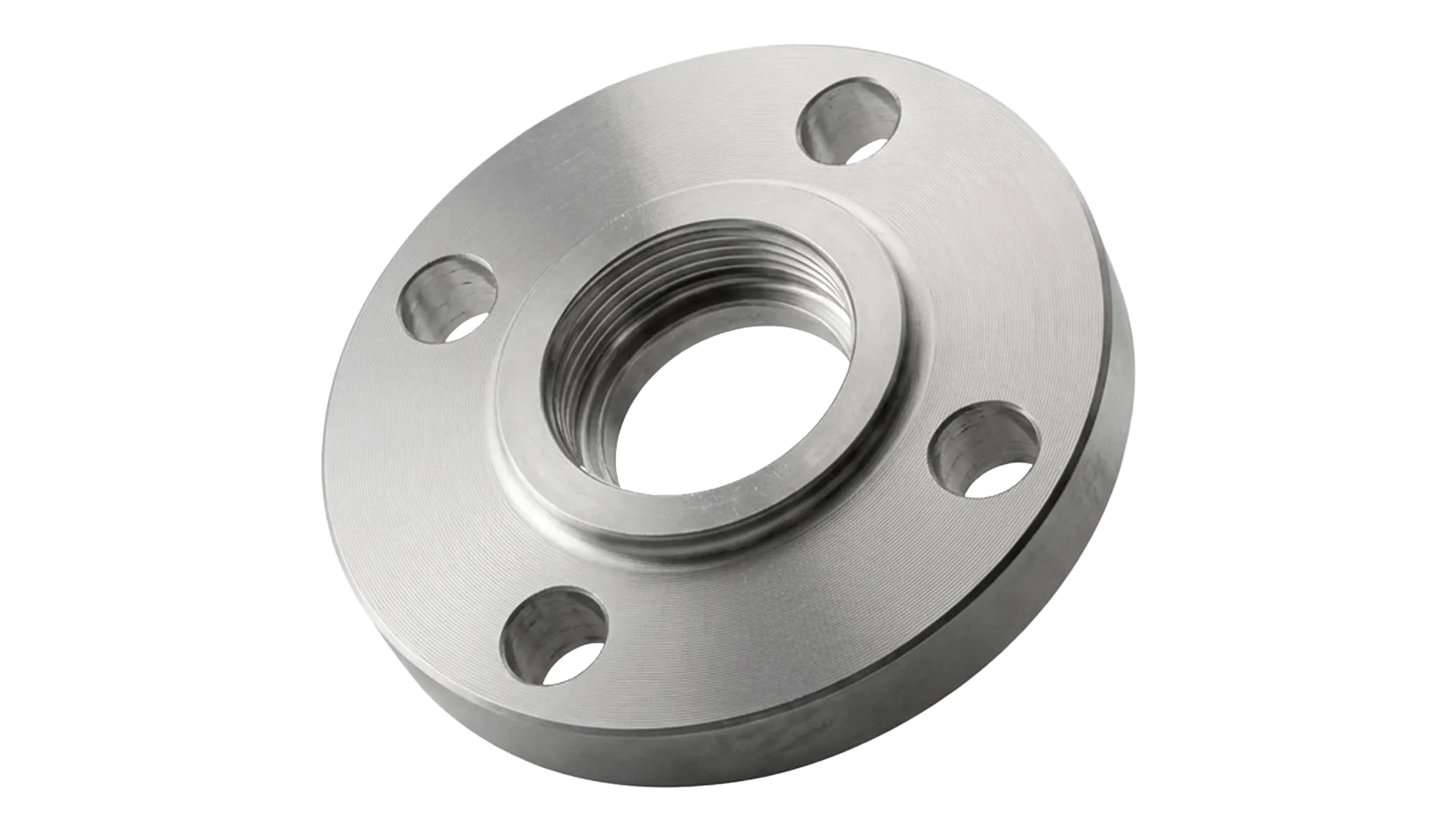

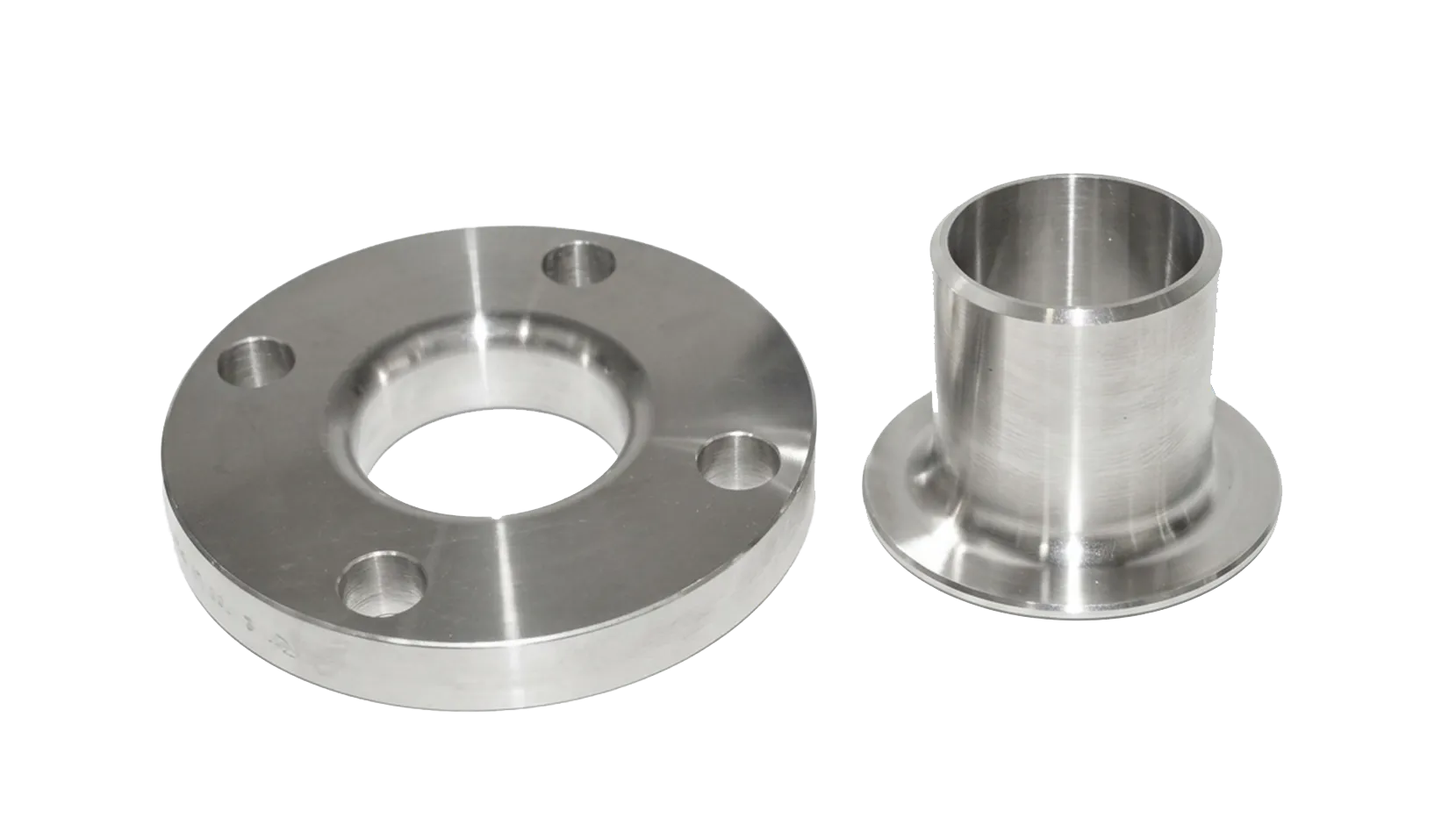

| Common Flange Types | Slip-On, Threaded, Screwed, Forged, Plate, Blind, Lap Joint, Socket Weld, Weld Neck and others |
| Manufacturing | Forged, heat treated and machined |
| Material Equivalent | UNS N10276, Werkstoff 2.4819 |
| Testing | Chemical, mechanical, dimensional and specified NDT/inspection |
| Documentation | EN 10204 3.1B and inspection documentation as specified |
| Standard / Specification | Applicable Requirement |
|---|---|
| ASTM B564 / ASME SB564 | Material specification |
| ANSI/ASME B16.5 | Flanges for specified NPS and pressure classes |
| ASME B16.47 Series A & B | Large diameter flanges |
| ASME B16.48 | Line blanks |
| BS4504 | British Standard flanges |
| BS 10 | British Standard dimensions |
| EN-1092 | EN flanges and PN ratings |
| DIN | DIN dimensional requirements |
| MSS S44 | Large diameter flange requirements where specified |
| ISO 7005 | International flange dimensions |
| JIS B2220 | JIS flange requirements |
| API 7S-15 / API 7S-43 | API requirements where specified |
| API 605 | Large diameter flange requirements where specified |
| Standard | Equivalent |
|---|---|
| Hastelloy Grade | C276 |
| UNS | N10276 |
| Werkstoff No. | 2.4819 |
| EN | NiMo16Cr15W |
| JIS | NW 0276 |
| GOST | ХН65МВУ |
| OR | ЭП760 |
| Element | Composition |
|---|---|
| Nickel (Ni) | Balance |
| Molybdenum (Mo) | 15–17% |
| Chromium (Cr) | 14.5–16.5% |
| Iron (Fe) | 4–7% |
| Tungsten (W) | 3–4.5% |
| Cobalt (Co) | 2.5% max |
| Manganese (Mn) | 1.0% max |
| Carbon (C) | 0.01% max |
| Vanadium (V) | 0.35% max |
| Phosphorus (P) | 0.04% max |
| Sulfur (S) | 0.03% max |
| Silicon (Si) | 0.08% max |
| Property | Value |
|---|---|
| Density | 8.89 g/cm³ |
| Melting Point | 1370°C (2500°F) |
| Tensile Strength | 790 MPa / 115,000 psi |
| Yield Strength, 0.2% Offset | 355 MPa / 52,000 psi |
| Elongation | 40% |
| Face Type | Designation |
|---|---|
| Raised Face | RF |
| Ring Type Joint | RTJ |
| Flat Face | FF |
| Large Male-Female | LMF |
| Lap-Joint Face | LJF |
| Small Male-Female | SMF |
| Small Tongue | Small Tongue |
| Large Tongue & Groove | Large Tongue & Groove |
| Groove | Groove |
Hastelloy C276 has a supplied density of 8.89 g/cm³, which can be used as the material density for estimating flange weight.
Actual flange weight depends on the selected flange type, nominal size, pressure class, bore, hub dimensions, face configuration and applicable dimensional standard.
For a more accurate estimated weight, provide the flange type, size, pressure class and dimensional standard.
Ganpat Metal supplies Hastelloy C276 flanges according to the required connection arrangement, piping standard and project drawing.
Ganpat Metal manufactures Hastelloy C276 flanges through forging, heat treatment and machining according to the required material specification and dimensional configuration.
The manufacturing requirement is established from the purchase specification, applicable flange standard and project drawing where provided.
Key manufacturing requirements can include:
For non-standard configurations, the enquiry should include the required drawing or dimensional schedule along with the material grade and applicable standard.
Testing and inspection are established according to the purchase order, material specification and project requirements.
Inspection and testing can include:
Documentation can include EN 10204 3.1B, raw material certificates, chemical analysis reports, mechanical test results, dimensional inspection records and applicable NDT reports.
The required inspection level should be defined at the enquiry stage so the quotation and documentation package can be aligned with the project requirement.
Hastelloy C276 flanges are supplied for industrial piping and equipment requirements where the specified material grade and flange configuration are required.
Typical applications include:
The final Hastelloy C276 flange configuration should be selected according to the process conditions, piping design, applicable standards and engineering specification.
Ganpat Metal Pvt. Ltd. handles Hastelloy C276 flange requirements based on the complete procurement specification, including material grade, size, pressure rating, flange type, face configuration, dimensional standard and inspection requirements.
Customers can provide purchase schedules, technical datasheets, drawings or complete flange specifications for quotation. This helps establish the correct material and dimensional configuration before order processing.
For projects requiring other grades within the same product family, the broader Hastelloy flanges range includes C276, C22, C4, B2, C2000, B3 and X.
Providing the complete C276 flange specification at enquiry stage also helps define testing, inspection documentation and delivery requirements before pricing.
Ganpat Metal supplies Hastelloy C276 flange requirements for domestic and international projects across:
India
Brazil
New Zealand
Australia
Bangladesh
Malaysia
UAE
Saudi Arabia
Oman
Egypt
Spain
Russia
Kazakhstan
Export enquiries can include the required ASTM B564 / ASME SB564 specification, flange dimensions, pressure class, face configuration, inspection requirements, documentation and delivery destination.
For a quotation, provide the following details:
