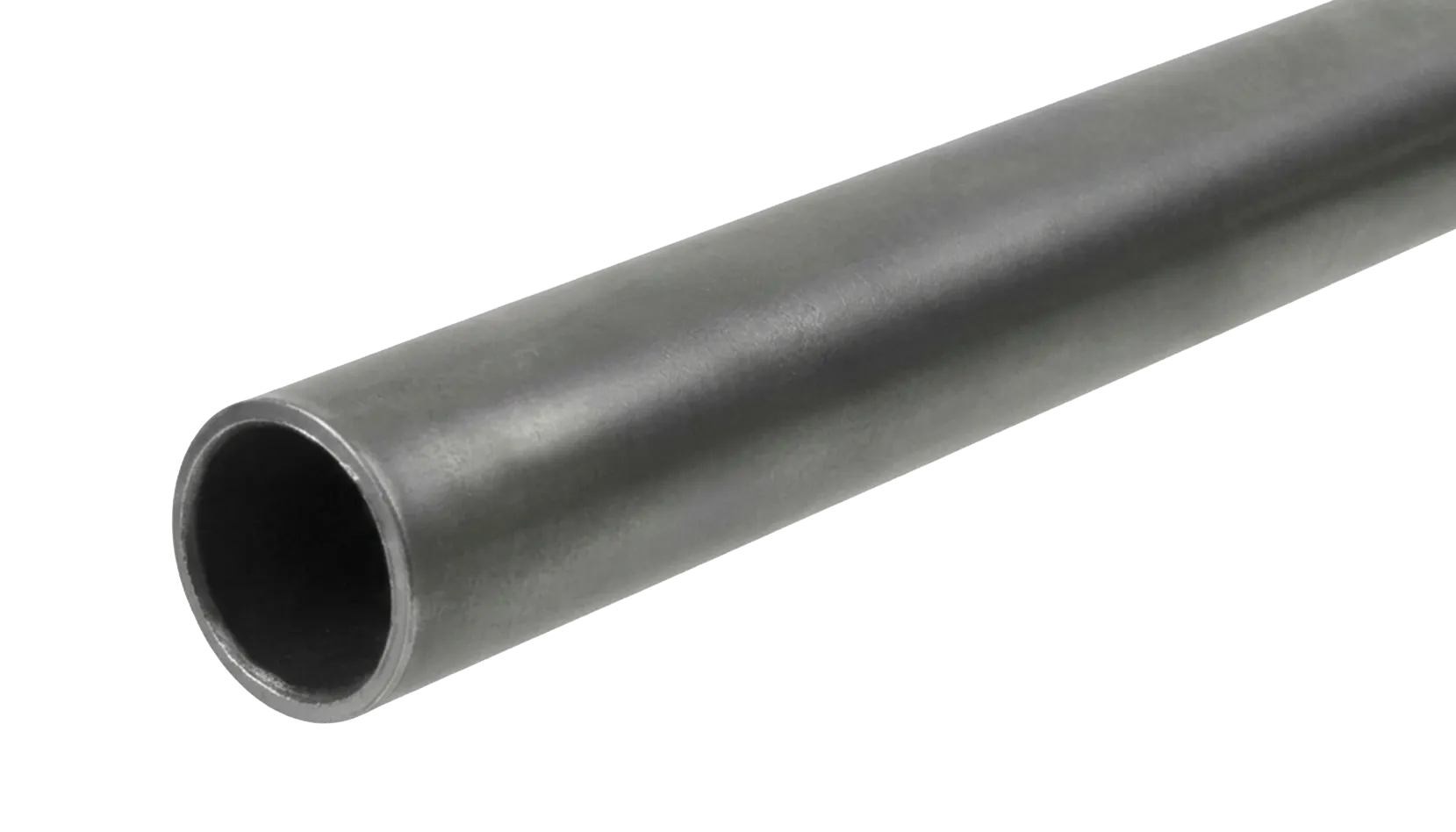

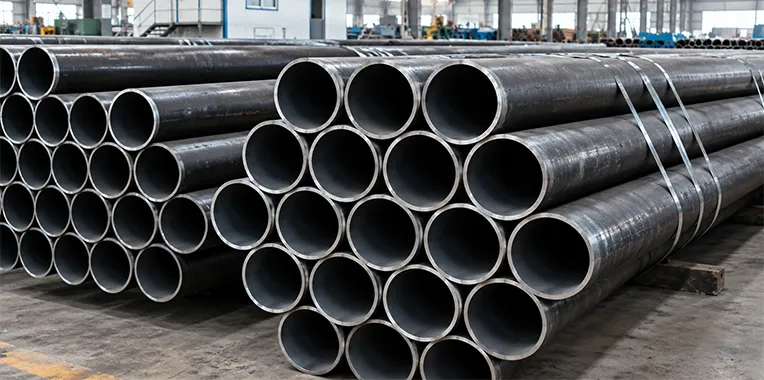

Ganpat Metal manufactures Carbon Steel A53 Grade B Pipes for industrial piping, water transmission, oil and gas, construction and general engineering applications. We supply ASTM A53 Grade B pipes in seamless, welded and ERW configurations with multiple schedules, lengths and end finishes.
Share your required pipe size, schedule, type, length and quantity with us to receive a quotation based on your project requirements.
ASTM A53 Grade B pipes are supplied in different manufacturing types, schedules and lengths to suit project-specific piping requirements.
| Specification | Details |
|---|---|
| Standard | ASTM, ASME and API |
| Thickness | 3–12 mm |
| Type | Seamless, Welded, ERW |
| Schedules | SCH 40, SCH 80, SCH 160, SCH XS, SCH XXS, All Schedules |
| Length | Minimum 3 metres, maximum 18 metres, or as per customer requirement |
| End | Plain End, Beveled End, Threaded End |
The chemical composition of ASTM A53 Grade B carbon steel pipes is controlled to meet the specified material requirements.
| Element | Composition (%) |
|---|---|
| Carbon (C) | 0.30 max. |
| Manganese (Mn) | 1.20 max. |
| Phosphorus (P) | 0.05 max. |
| Sulfur (S) | 0.045 max. |
| Copper (Cu) | 0.40 max. |
| Nickel (Ni) | 0.40 max. |
| Chromium (Cr) | 0.40 max. |
| Molybdenum (Mo) | 0.15 max. |
| Vanadium (V) | 0.08 max. |
| Property | Value |
|---|---|
| Tensile Strength, min. | 415 MPa (60,000 psi) |
| Yield Strength, min. | 240 MPa (35,000 psi) |
| Elongation | Typically 20–30%, depending on pipe dimensions |
| Hardness (Brinell HBW) | Approx. ≤126 HBW |
| Modulus of Elasticity | ~200 GPa (29,000 ksi) |
| Melting Point | ~1515–1540°C |
| Density | 7.85 g/cm³ |
| Impact Strength | Good toughness at room temperature |
We supply ASTM A53 Grade B pipes in multiple schedules and wall thicknesses for different piping requirements.
| Parameter | Options |
|---|---|
| Available Schedules | SCH 40, SCH 80, SCH 160, SCH XS, SCH XXS, All Schedules |
| Thickness | 3 mm to 12 mm |
| Other Requirements | Considered according to specified pipe dimensions and project requirements |
Pipe dimensions and end preparation can be supplied according to the required standard and purchase specification.
| Parameter | Options |
|---|---|
| End Finish | Plain End |
| End Finish | Beveled End |
| End Finish | Threaded End |
| Length | 3 metres to 18 metres, or according to customer requirement |
For quotation accuracy, provide the size, schedule, type, length, end finish, quantity and any inspection / documentation requirements.
Select ASTM A53 Grade B Pipe parameters and click the "Calculate Weight" button to reveal approximate weight.

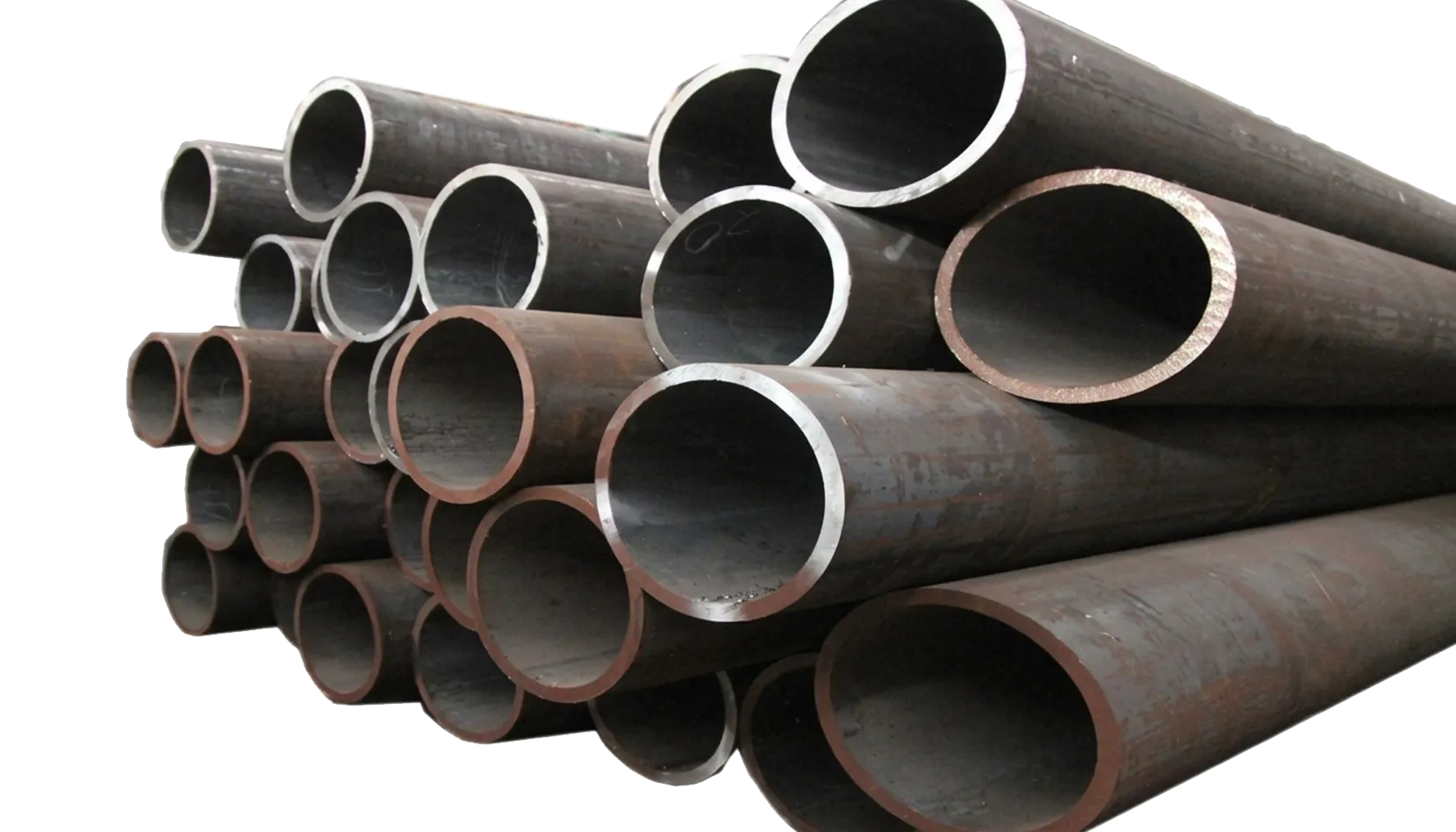

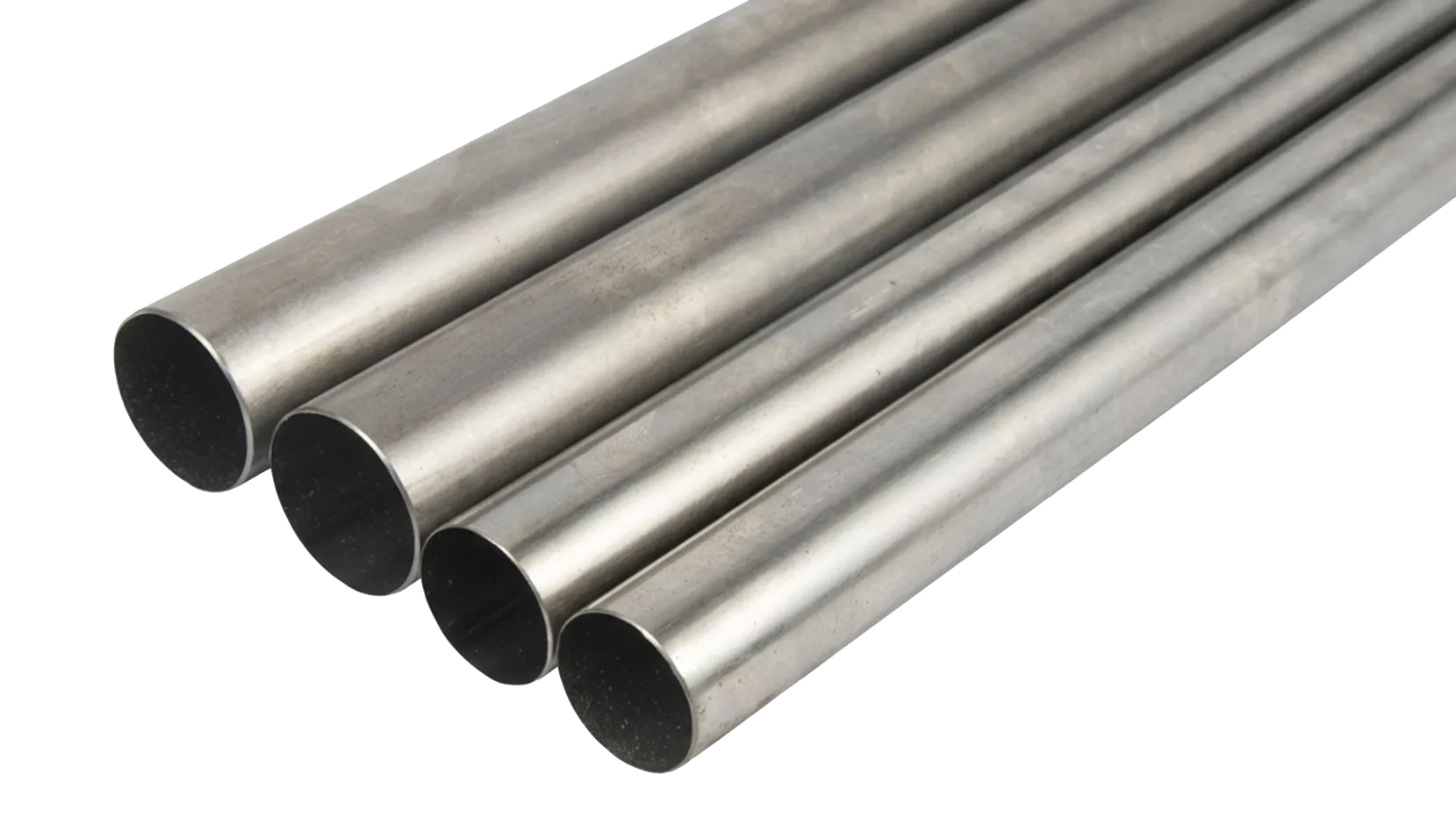

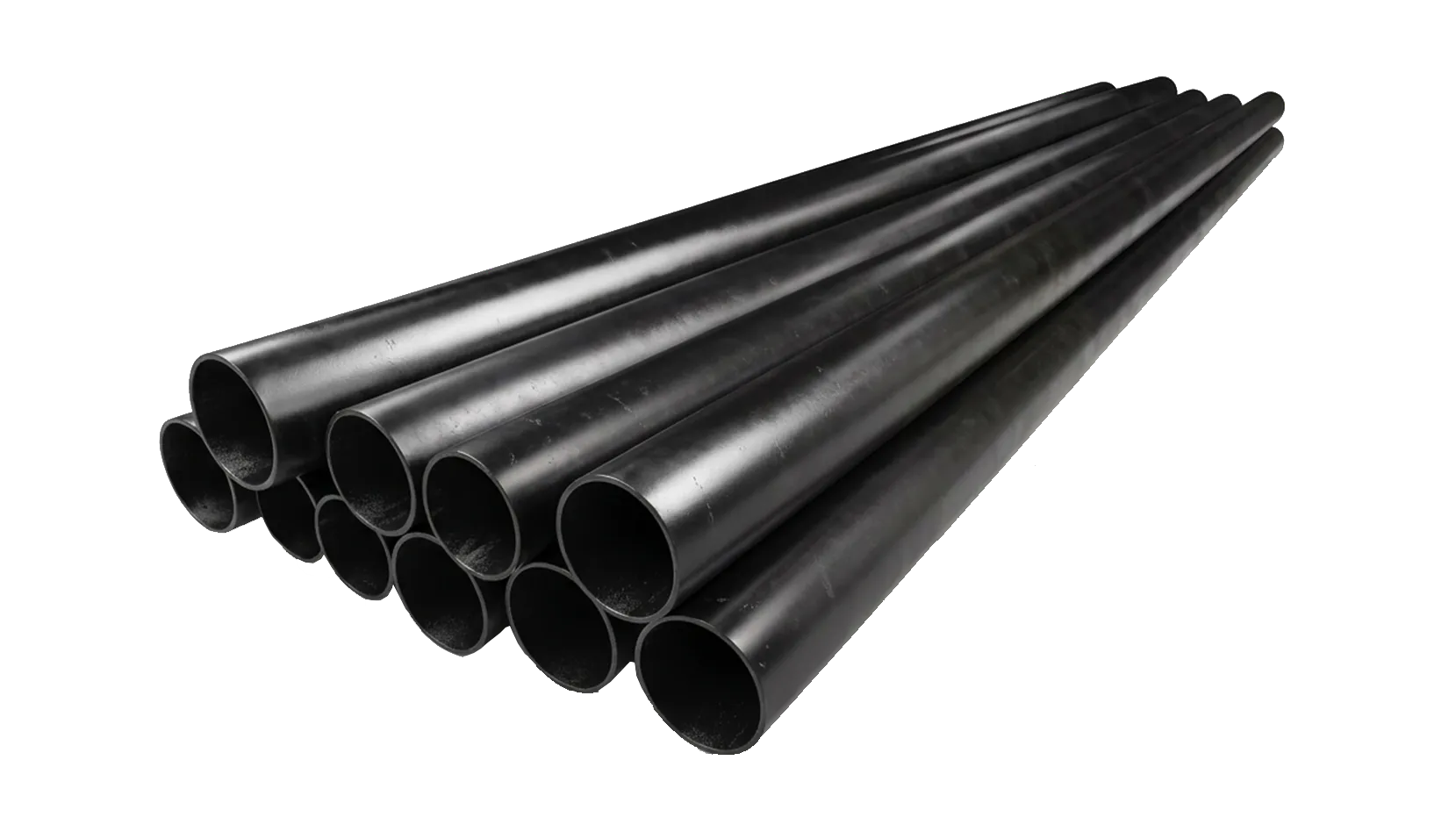

Ganpat Metal supplies ASTM A53 Grade B pipes in the following configurations:
The pipe type can be selected according to the required manufacturing process, dimensions, service conditions and project specifications.
ASTM A53 Grade B pipes are supplied in seamless, welded and ERW configurations. The manufacturing route is selected according to the required pipe type, dimensions and application.
Ganpat Metal can coordinate pipe supply against specified size, schedule, length, end finish and quantity requirements for industrial and project orders.
ASTM A53 Grade B pipes are supplied against the applicable ASTM, ASME and API requirements specified for the order.
The applicable standard, dimensions, schedule and end preparation are confirmed against the customer's purchase specification before supply.
Inspection and testing can be arranged according to the applicable specification and project requirements.
ASTM A53 Grade B pipes are used across industrial and infrastructure projects where carbon steel piping is required.
Ganpat Metal supplies Carbon Steel A53 Grade B Pipes for domestic industrial requirements, project orders and bulk procurement. Pipes can be supplied in the required type, schedule, length and end finish based on the purchase specification.
For quotation, share the pipe size, schedule, type, length, quantity and required documentation with our sales team.
We support export requirements for ASTM A53 Grade B pipes with project-specific specifications, packing and documentation. Orders can be prepared according to the required pipe configuration, quantity and shipping requirements.
For export enquiries, provide the required size, schedule, pipe type, length, quantity and destination to receive a quotation.
India
Brazil
New Zealand
Australia
Bangladesh
Malaysia
UAE
Saudi Arabia
Oman
Egypt
Spain
Russia
Kazakhstan
For other carbon steel pipe grades, sizes and configurations, see our Carbon Steel Pipes range.
Send the following details with your enquiry so we can quote the appropriate pipe configuration:
| Requirement | Details to Provide |
|---|---|
| Grade | ASTM A53 Grade B |
| Size | Required NB/OD |
| Type | Seamless, Welded or ERW |
| Schedule | SCH 40, SCH 80, SCH 160, XS, XXS or required schedule |
| Thickness | Required wall thickness |
| Length | Required length |
| End | Plain, Beveled or Threaded |
| Quantity | Required quantity |
| Inspection | Required inspection/testing |
| Documentation | Required certificates/documents |
