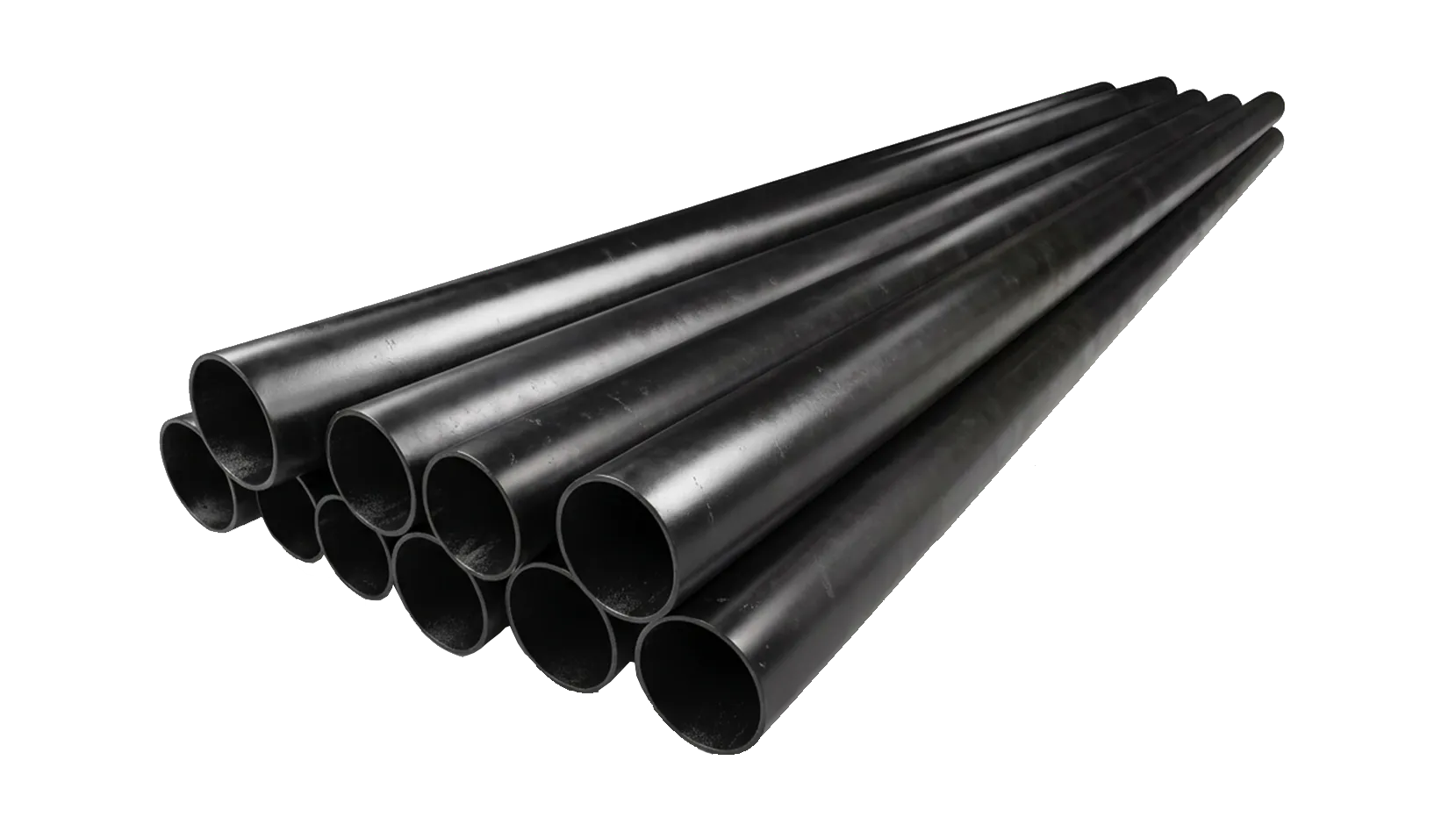

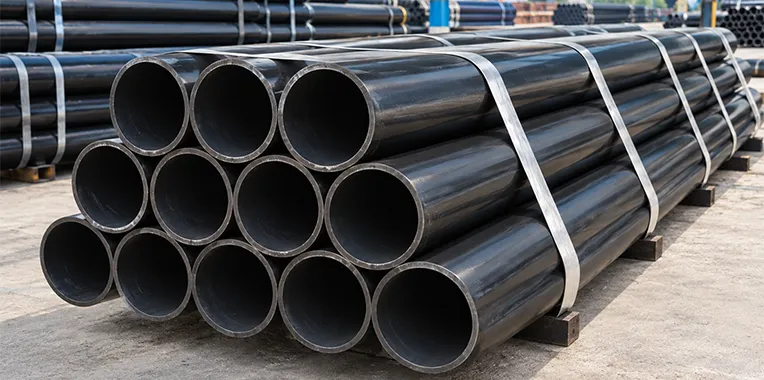

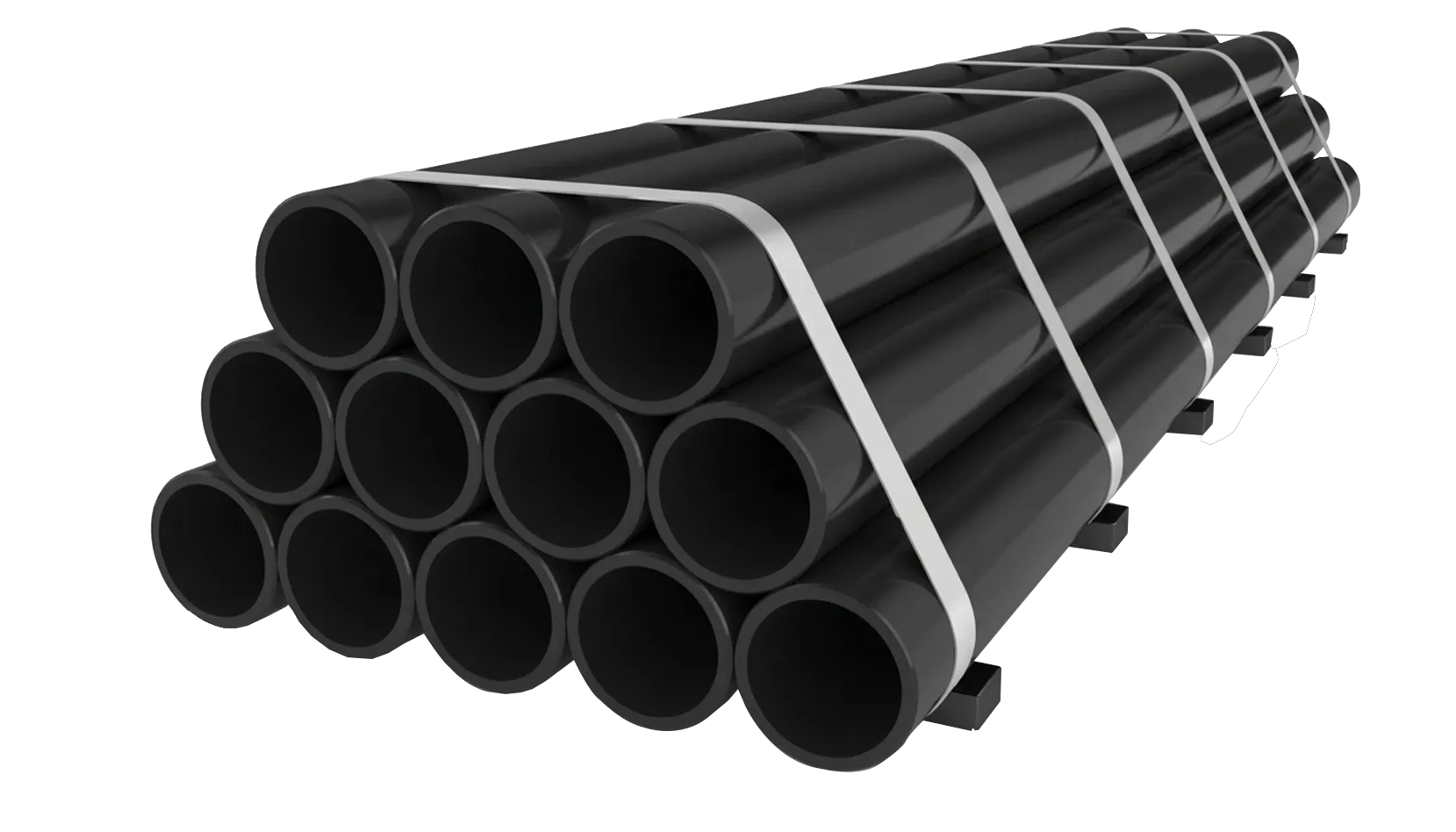

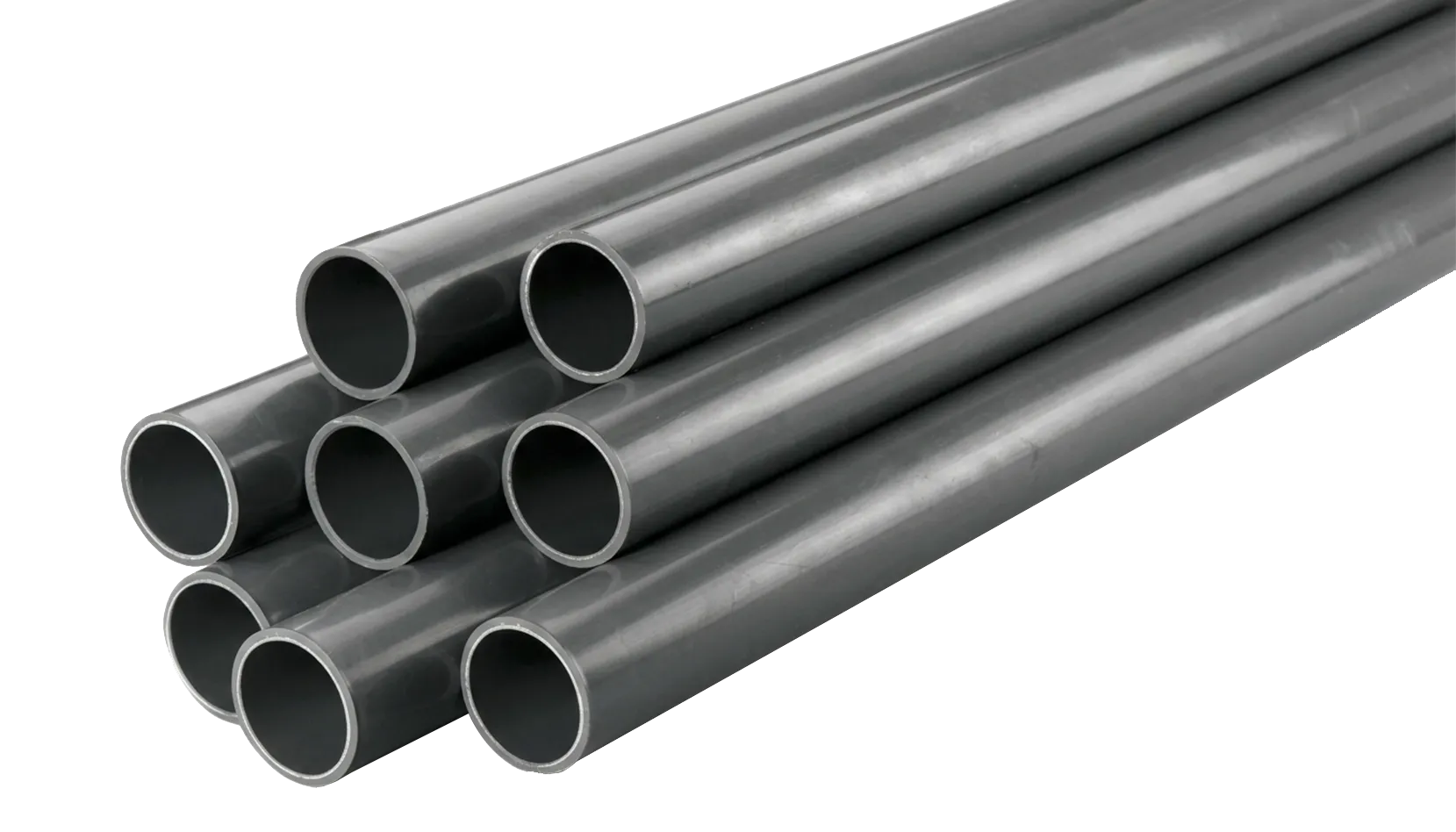

Ganpat Metal manufactures and supplies Carbon Steel ASTM A106 Grade B Pipes for industrial piping, high-temperature service and process applications. These seamless carbon steel pipes are supplied as per ASTM A106 / ASME SA106 requirements in multiple sizes, schedules, lengths and end finishes.
Share your required size, schedule, length, quantity and inspection requirements with Ganpat Metal for a project-specific quotation.
ASTM A106 Grade B pipes are supplied in seamless construction with different schedules, lengths, forms and end preparations to match the required piping specification.
| Specification | Details |
|---|---|
| Standard | ASTM A106 / ASME SA106 |
| Size | 1/2" NB to 36" NB |
| Thickness | 7.00 mm to 50 mm; custom OD and thickness available on request |
| Schedule | SCH 40, SCH 80, SCH 160, SCH XS, SCH XXS, All Schedules |
| Length | Single Random, Double Random & Required Length |
| Custom Length | Up to 12 metre lengths as required |
| Type | Seamless |
| Form | Round, Square, Rectangular, Coiled, U Shape, Pan Cake Coils, Hydraulic |
| End | Plain End, Beveled End, Threaded End |
The chemical composition of Grade B carbon steel pipes is controlled according to the specified ASTM A106 Grade B material requirements.
| Grade | C (%) | Mn (%) | P (%) | S (%) | Cu (%) | Ni (%) | Cr (%) | Mo (%) | V (%) |
|---|---|---|---|---|---|---|---|---|---|
| Grade B | 0.30 max. | 0.29–1.06 | 0.04 max. | 0.04 max. | 0.40 max. | 0.40 max. | 0.40 max. | 0.15 max. | 0.08 max. |
ASTM A106 Grade B pipes are supplied with the specified minimum tensile and yield strength requirements.
| Grade | Tensile Strength, min. | Yield Strength, min. |
|---|---|---|
| Grade B | 60,000 psi (415 MPa) | 35,000 psi (240 MPa) |
We supply ASTM A106 Grade B pipes from 1/2" NB to 36" NB in multiple schedules. Custom outside diameter and wall thickness requirements can also be considered against the project specification.
| Parameter | Options |
|---|---|
| Size Range | 1/2" NB to 36" NB |
| Available Schedules | SCH 40, SCH 80, SCH 160, SCH XS, SCH XXS, All Schedules |
| Thickness | 7.00 mm to 50 mm; custom OD and thickness on request |
Pipes can be supplied in different length and end configurations according to the order requirement.
| Parameter | Options |
|---|---|
| Length | Single Random Length |
| Length | Double Random Length |
| Length | Required Length / Custom up to 12 metres |
| End Finish | Plain End |
| End Finish | Beveled End |
| End Finish | Threaded End |
Need a specific ASTM A106 Grade B size or schedule? Send your requirement to our team for availability and pricing.
Select ASTM A106 Grade B Pipe parameters and click the "Calculate Weight" button to reveal approximate weight.
Ganpat Metal supplies ASTM A106 Grade B seamless pipes in configurations suited to different industrial piping requirements:
The seamless construction is supplied according to the required size, wall thickness, schedule and project specification.
In addition to standard round pipe configurations, the supplied product range includes:
The required form, dimensions and quantity can be specified when requesting a quotation.
Ganpat Metal supplies ASTM A106 Grade B seamless pipes against industrial and project requirements. Pipe selection is based on the required size, schedule, wall thickness, length and end finish.
For bulk procurement, we can process requirements based on the specified grade, dimensions, quantity and applicable inspection or documentation requirements.
The product is specified against:
The applicable specification is confirmed against the purchase order and project requirements before supply.
Inspection and testing requirements can be specified according to the applicable purchase specification.
Project-specific inspection and documentation requirements should be shared at the enquiry stage.
ASTM A106 Grade B seamless carbon steel pipes are selected for industrial piping and applications where the specified material and seamless construction are required.
Ganpat Metal supplies Carbon Steel ASTM A106 Grade B Pipes for industrial buyers, fabricators, contractors and project procurement. Pipes are supplied according to the required size, schedule, length, end finish and quantity.
For faster quotation, provide your complete pipe specification along with the required quantity and delivery requirement.
We support export enquiries for ASTM A106 Grade B seamless pipes based on specified dimensions, schedules, lengths, quantities and documentation requirements.
For an export quotation, share the required pipe size, schedule, length, quantity, end finish and destination with our team.
India
Brazil
New Zealand
Australia
Bangladesh
Malaysia
UAE
Saudi Arabia
Oman
Egypt
Spain
Russia
Kazakhstan
For other carbon steel pipe grades, sizes and configurations, see our Carbon Steel Pipes range.
Provide the following details with your enquiry so we can prepare an accurate quotation:
| Requirement | Details to Provide |
|---|---|
| Grade | ASTM A106 Grade B |
| Standard | ASTM A106 / ASME SA106 |
| Size | Required NB or OD |
| Schedule | SCH 40, SCH 80, SCH 160, XS, XXS or required schedule |
| Thickness | Required wall thickness |
| Type | Seamless |
| Length | SRL, DRL, required length or 12 m |
| Form | Round, Square, Rectangular, Coiled, U Shape, etc. |
| End | Plain, Beveled or Threaded |
| Quantity | Required quantity |
| Inspection | Required inspection/testing |
| Documentation | Required certificates/documents |
Send your ASTM A106 Grade B pipe requirement to Ganpat Metal with the size, schedule, length and quantity for a project-specific quotation.
