Ganpat Metal manufactures and supplies ASTM A335 P11 Pipes for high-temperature and high-pressure piping systems. These alloy steel pipes are manufactured to ASTM A335 / ASME SA335 P11 specifications and are available in seamless, ERW, welded and fabricated configurations.
ASTM A335 P11 Pipes are supplied in 1/2" to 36" NB sizes, multiple schedules and wall thicknesses, with plain, beveled and threaded ends for industrial piping requirements.
ASTM A335 P11 pipes are selected according to the piping standard, size, schedule, wall thickness and material specification required for the project.
| Parameter | Specification |
|---|---|
| Material | ASTM A335 P11 Alloy Steel |
| Standard | ASTM A335 / SA335 P11 |
| Nominal Size | 1/2" to 36" NB |
| Wall Thickness | 3 to 12 mm |
| Schedules | SCH 40, SCH 80, SCH 160, SCH XS, SCH XXS and other schedules |
| Pipe Type | Seamless, ERW, Welded, Fabricated |
| Manufacturing | Cold Rolled, Cold Drawn |
| Length | Standard, Double Random and Cut Length |
| Forms | Round, Square, Rectangular, Hydraulic |
| End Finish | Plain End, Beveled End, Threaded End |
| Cold Drawn Tolerance | ±0.1 mm |
| Cold Rolled Tolerance | ±0.05 mm |
The chemical composition of ASTM A335 P11 alloy steel pipe is controlled according to the ASTM A335 specification.
| Element | ASTM A335 P11 Composition |
|---|---|
| Carbon | 0.05–0.15% |
| Manganese | 0.30–0.60% |
| Chromium | 1.00–1.50% |
| Molybdenum | 0.44–0.65% |
| Silicon | 0.50–1.00% |
| Phosphorus | 0.025% max |
| Sulfur | 0.025% max |
The supplied P11 reference data specifies the following minimum mechanical characteristics:
| Mechanical Property | Minimum Value |
|---|---|
| Yield Strength | 205 MPa |
| Tensile Strength | 415 MPa |
| Elongation | 30% |
Reference outside diameter and wall thickness values for common schedules:
| NPS | Outside Diameter (mm) | SCH 40 Wall Thickness (mm) | SCH 80 Wall Thickness (mm) |
|---|---|---|---|
| 1/2" | 21.3 | 2.77 | 3.73 |
| 3/4" | 26.7 | 2.87 | 3.91 |
| 1" | 33.4 | 3.38 | 4.55 |
| 1¼" | 42.2 | 3.56 | 4.85 |
| 1½" | 48.3 | 3.68 | 5.08 |
| 2" | 60.3 | 3.91 | 5.54 |
| 2½" | 73.0 | 5.16 | 7.01 |
| 3" | 88.9 | 5.49 | 7.62 |
| 4" | 114.3 | 6.02 | 8.56 |
| 5" | 141.3 | 6.55 | 9.53 |
| 6" | 168.3 | 7.11 | 10.97 |
| 8" | 219.1 | 8.18 | 12.70 |
| 10" | 273.1 | 9.27 | 15.09 |
| 12" | 323.9 | 9.53 | 17.4 8 |
Ganpat Metal supplies ASTM A335 P11 Pipes across a broad size and schedule range for industrial piping requirements.
| Parameter | Range |
|---|---|
| Size | 1/2" to 36" NB |
| Wall Thickness | 3 to 12 mm |
| Schedule Options | SCH 40, SCH 80, SCH 160, SCH XS, SCH XXS and other schedules |
| Length | Standard, Double Random and Cut Length |
| Custom Dimensions | Available according to project specification |
For larger sizes, special dimensions or project-specific configurations, the required standard, schedule and dimensional drawing should be confirmed before ordering.
For quotation accuracy, provide the size, schedule or wall thickness, pipe type, length, end finish, quantity and any inspection requirements. These details determine the applicable manufacturing and dimensional requirements.
Select ASTM A335 P11 Pipe parameters and click the "Calculate Weight" button to reveal approximate weight.
ASTM A335 P11 Pipes are supplied in different configurations according to the manufacturing route and project requirement:

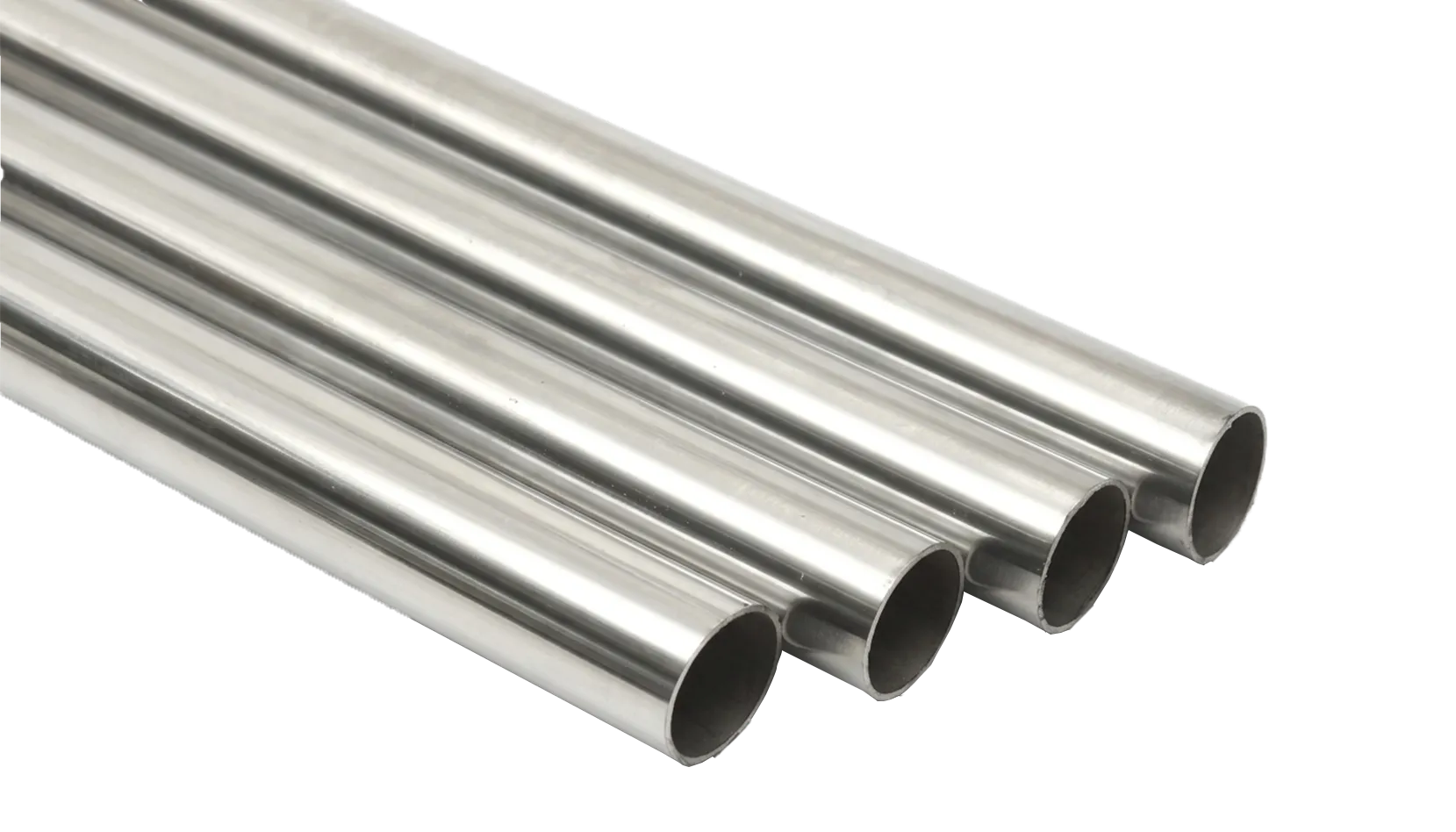

For high-temperature piping projects requiring the seamless configuration, buyers can specify ASTM A335 P11 Seamless Pipes along with the required size, schedule and length.
End preparation and form can be specified according to the piping connection and project requirement.
| Parameter | Available Options |
|---|---|
| Form | Round, Square, Rectangular, Hydraulic |
| End Finish | Plain End, Beveled End, Threaded End |
| Manufacturing | Cold Rolled, Cold Drawn |
| Length | Standard, Double Random, Cut Length |
ASTM A335 P11 Pipes are manufactured and finished according to the specified grade, dimensions and production route.
Inspection and testing are carried out according to the applicable ASTM specification and purchase requirements.
ASTM A335 P11 Pipes are used where alloy steel piping is required for elevated-temperature industrial service.
The pipe type, schedule, size and end finish should be selected according to the operating conditions and applicable piping specification.
Ganpat Metal manufactures and supplies ASTM A335 P11 Pipes for industrial buyers across India. Orders can be prepared according to the required pipe size, schedule, wall thickness, length, end finish, quantity and inspection requirements.
For buyers sourcing other grades within the same alloy steel pipe range, the Alloy Steel Pipes category covers ASTM A335 P1, P2, P5, P9, P11, P12, P22, P91 and P92 grades.
Ganpat Metal supports ASTM A335 P11 pipe requirements for domestic and international industrial projects. Export quotations can be prepared according to the required grade, dimensions, quantity and documentation.
Export markets include:
India
Brazil
New Zealand
Australia
Bangladesh
Malaysia
UAE
Saudi Arabia
Oman
Egypt
Spain
Russia
Kazakhstan
For alloy steel pipe procurement, the correct combination of material grade, dimensions, schedule and end configuration is essential.
Ganpat Metal can assist with enquiries covering:
Contact the sales team with your pipe specification to check availability, pricing and supply options.
Provide the following details to receive a quotation for ASTM A335 P11 Pipes:
