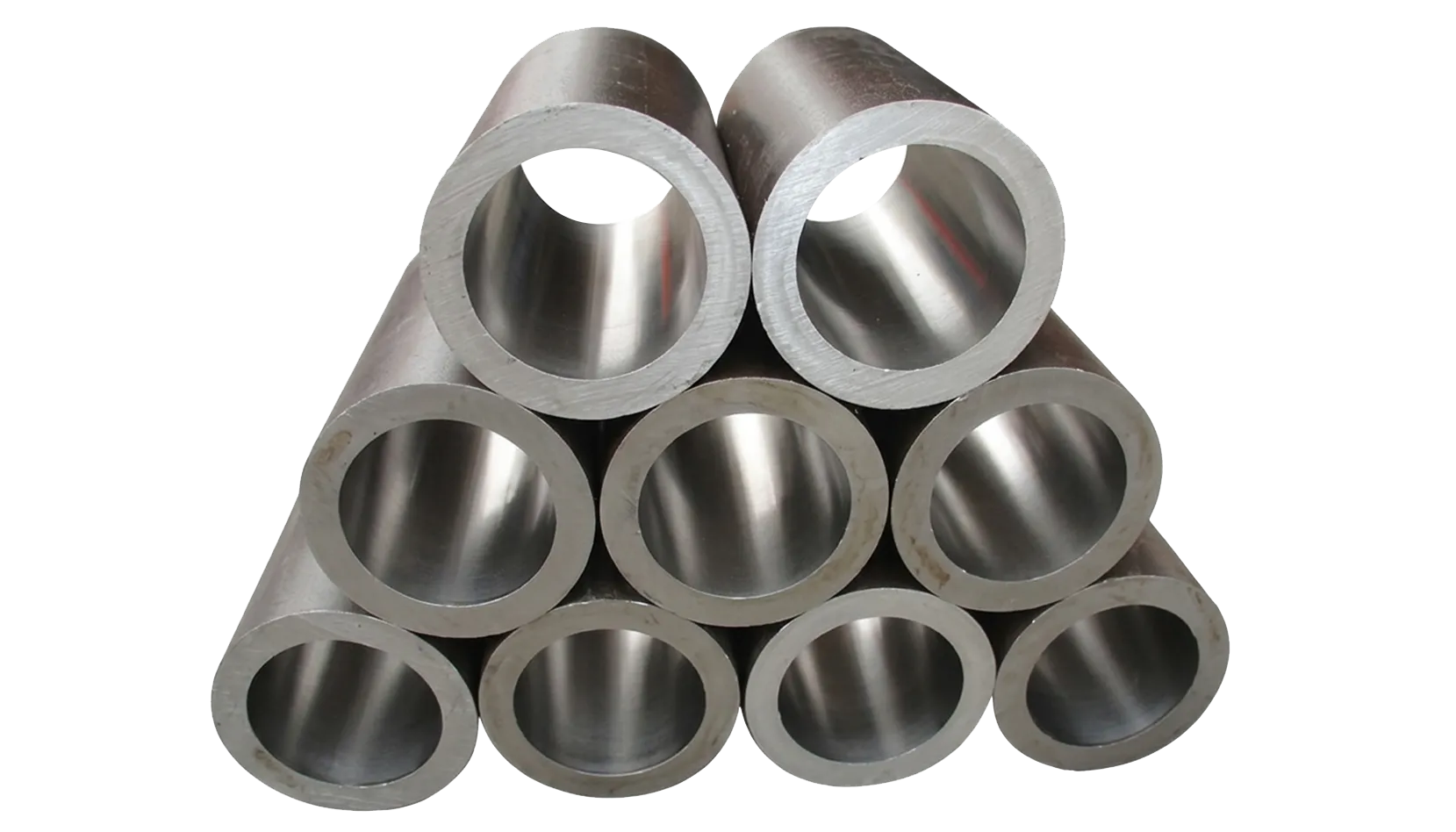

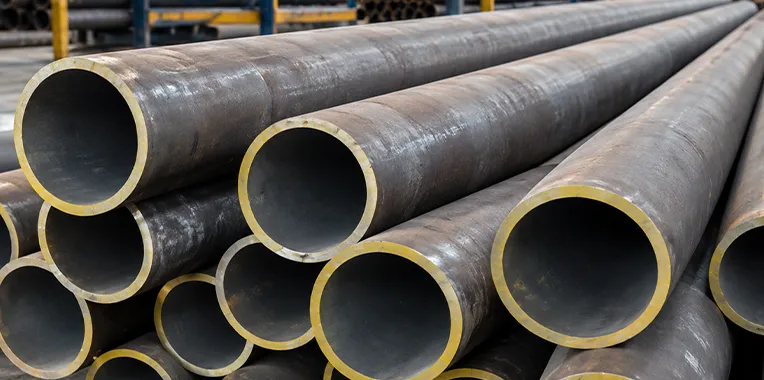

Ganpat Metal manufactures ASTM A335 P22 Pipes in 1/2" NB to 36" NB sizes with wall thicknesses from 3 to 12 mm. The range includes seamless, ERW, welded and fabricated pipe configurations, with cold drawn and cold rolled manufacturing options.
P22 is a 2-1/4% chromium, 1% molybdenum alloy steel grade specified under ASTM A335 for high-temperature service. Supply can be matched to the required schedule, length, end finish, testing and material documentation.
ASTM A335 P22 pipes are selected according to the piping standard, size, schedule, wall thickness and material specification required for the project.
| Parameter | ASTM A335 P22 Specification |
|---|---|
| Material Standard | ASTM A335 P22 / ASME SA335 P22 |
| Size Range | 1/2" NB to 36" NB |
| Wall Thickness | 3–12 mm |

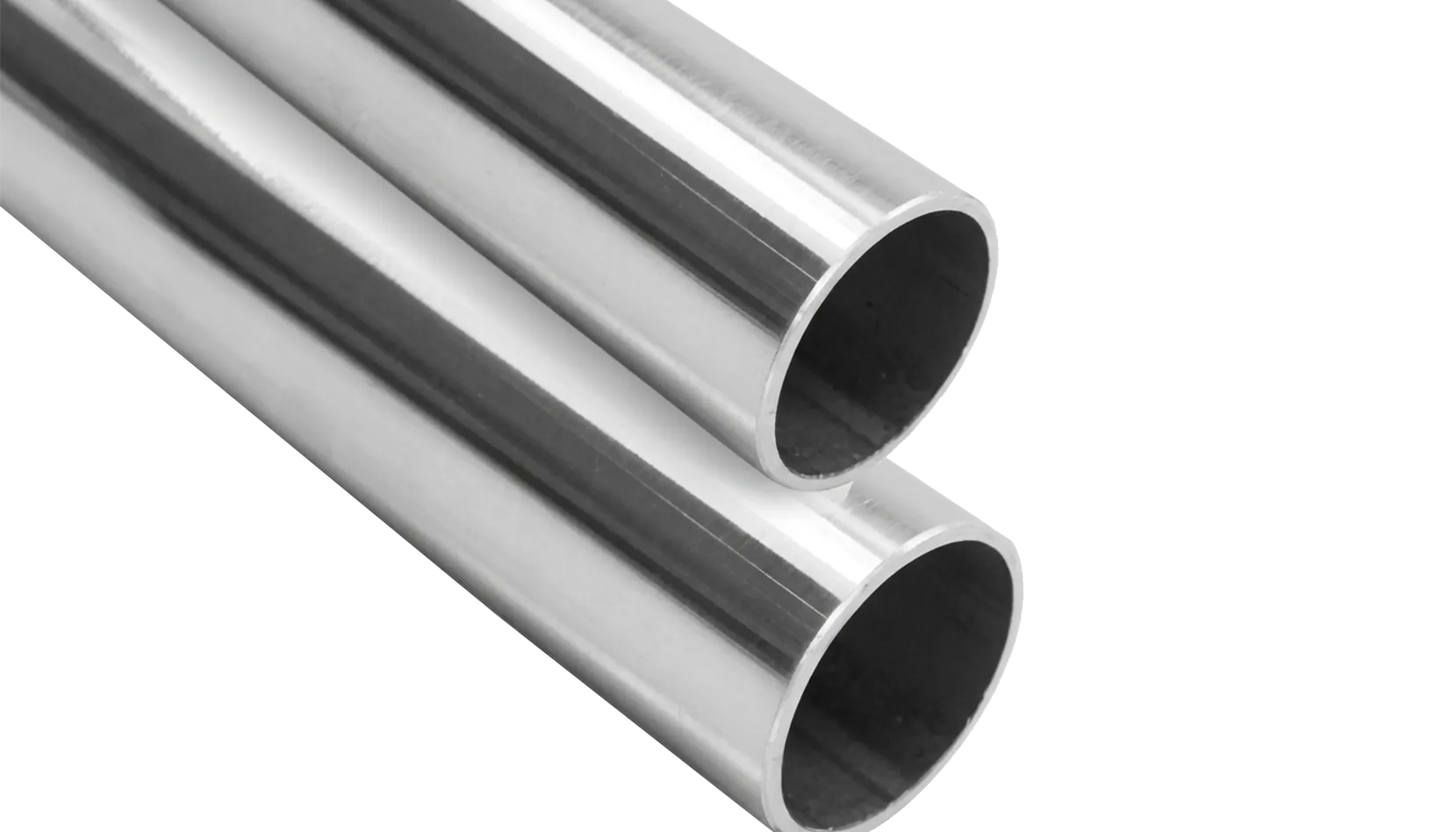

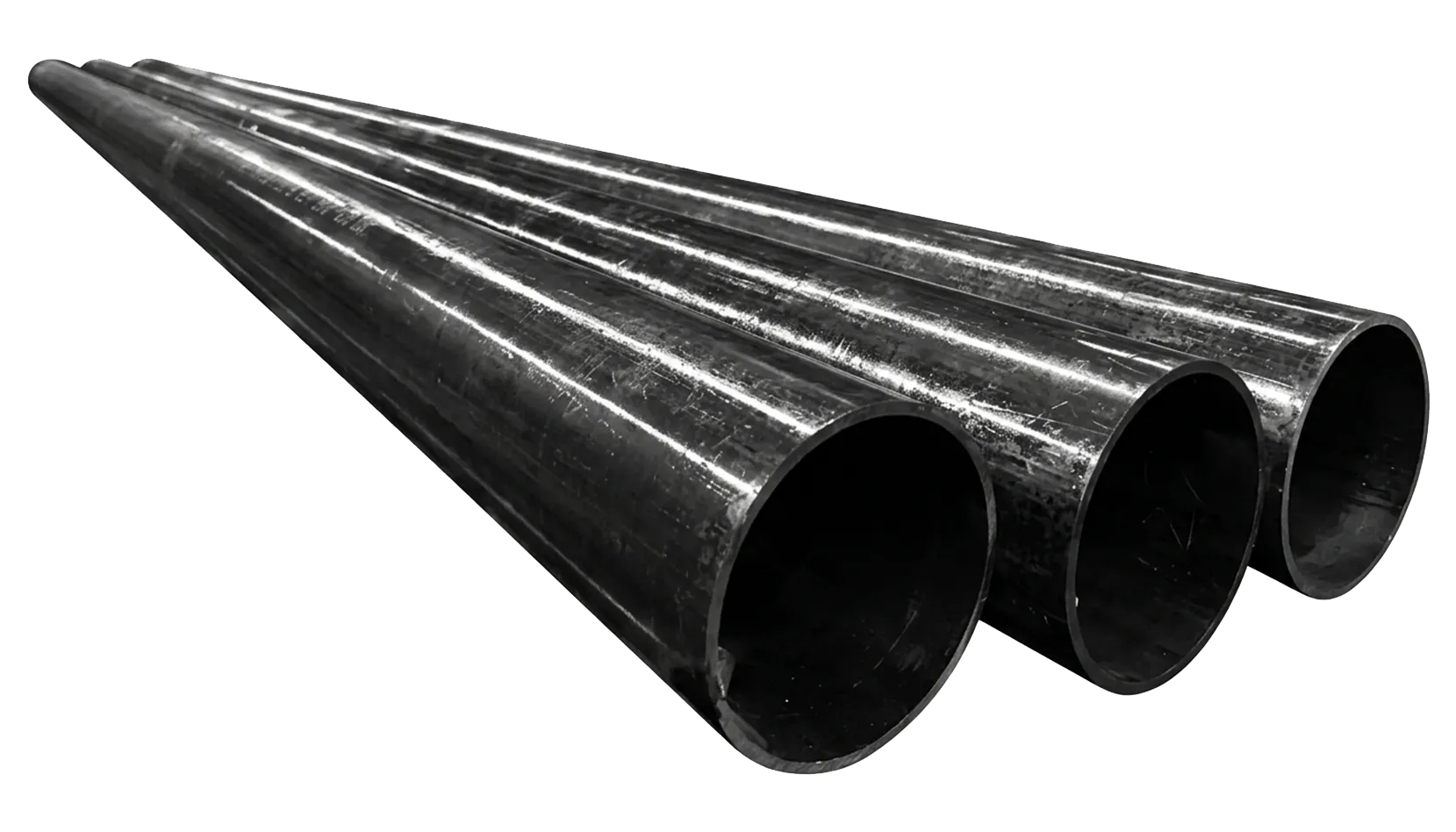

| Pipe Type | Seamless, ERW, Welded, Fabricated |
| Manufacturing Process | Cold Rolled, Cold Drawn |
| Schedules | SCH 5, SCH 10, SCH 40, SCH 80, SCH 80S, SCH XS, SCH 160, SCH XXS, All Schedules |
| Length | Standard, Double Random, Cut Length |
| Forms | Round, Square, Rectangular, Hydraulic |
| Ends | Plain End, Beveled End, Threaded |
| Service Classification | Ferritic alloy steel pipe for high-temperature service |
| Large Diameter Supply | ASTM A335 P22 Large Diameter Pipe |
| Material Origins | European, Japanese, Russian, Korean, US and Indian |
| Additional Testing | IBR, NACE TM0284, NACE MR0175, NACE TM0177, HIC, SSC and H2 Service Testing |
The chemical composition of ASTM A335 P22 alloy steel pipe is controlled according to the ASTM A335 specification.
| Element | ASTM A335 P22 Composition |
|---|---|
| Carbon (C) | 0.05–0.15% |
| Chromium (Cr) | 1.90–2.60% |
| Manganese (Mn) | 0.30–0.60% |
| Molybdenum (Mo) | 0.87–1.13% |
| Phosphorus (P) | 0.025% max |
| Sulfur (S) | 0.025% max |
| Silicon (Si) | 0.50% max |
The specified mechanical requirements for ASTM A335 P22 include a minimum tensile strength of 415 MPa, minimum yield strength of 205 MPa and minimum elongation of 30%.
| Mechanical Property | Minimum Requirement |
|---|---|
| Tensile Strength | 415 MPa / 60 ksi |
| Yield Strength | 205 MPa / 30 ksi |
| Elongation | 30% |
These values form part of the material verification requirements for P22 pipe supplied against the specified grade.
Reference dimensional range for ASTM A335 P22 pipe:
| Dimension | P22 Pipe Range |
|---|---|
| Nominal Bore | 1/2" NB to 36" NB |
| Wall Thickness | 3–12 mm |
| Cold Drawn Tolerance | ±0.1 mm |
| Cold Rolled Tolerance | ±0.05 mm |
| Length | Standard, Double Random, Cut Length |
The P22 range covers the following schedule designations:
| Schedule | Designation |
|---|---|
| SCH 5 | Schedule 5 |
| SCH 10 | Schedule 10 |
| SCH 40 | Schedule 40 |
| SCH 80 | Schedule 80 |
| SCH 80S | Schedule 80S |
| SCH XS | Extra Strong |
| SCH 160 | Schedule 160 |
| SCH XXS | Double Extra Strong |
| Other Schedules | All Schedules |
This includes commonly specified configurations such as ASTM A335 P22 Schedule 40 Pipe, ASTM A335 P22 Schedule 60 Pipe and ASTM A335 P22 Schedule 80 Pipe. Schedule 60 is included within the broader all-schedule supply range even though it is not separately listed in the supplied specification table.
For quotation accuracy, provide the size, schedule or wall thickness, pipe type, length, end finish, quantity and any inspection requirements. These details determine the applicable manufacturing and dimensional requirements.
Select ASTM A335 P22 Pipe parameters and click the "Calculate Weight" button to reveal approximate weight.
For buyers reviewing mill test certificates, the key P22 mechanical values are:
| Test | Minimum Value |
|---|---|
| Tensile Strength | 60 ksi / 415 MPa |
| Yield Strength | 30 ksi / 205 MPa |
| Elongation | 30% |
The 205 MPa minimum yield strength and 415 MPa minimum tensile strength provide measurable acceptance criteria when reviewing the mechanical test results supplied with the pipe.
| Standard / Reference | P22 Equivalent or Related Designation |
|---|---|
| ASTM | A335 P22 |
| ASME | SA335 P22 |
| ASTM Tube Grade | A213 T22 |
| UNS | K21590 |
| EN | 10CrMo9-10 |
| DIN | 10CrMo910 |
| Material Number | 1.7380 |
| JIS | G3458 STPA24 |
| BS | 3604 P1 622 |
| ISO | 2604 II TS34 |
| GOST | 550-75 |
| NBR | 5603 |
Other standards associated with the P22 material family include EN 10216-2, ASTM A213, ASME SA213, GOST 550-75 and NBR 5603. The material is also identified as 2-1/4% Cr 1% Mo, reflecting its principal alloying system.
When a project uses several alloy steel grades, the Alloy Steel Pipes range from Ganpat Metal provides a single category covering ASTM A335 P1, P2, P5, P9, P11, P12, P22, P91 and P92 grades.
| Grade | Heat Treatment |
|---|---|
| ASTM A335 P22 | Full or Isothermal Anneal |
| ASTM A335 P22 | Normalize and Temper |
| Tempering Temperature Reference | 1250°F [675°C] |
Ganpat Metal supplies P22 in configurations used for different fabrication and piping requirements:

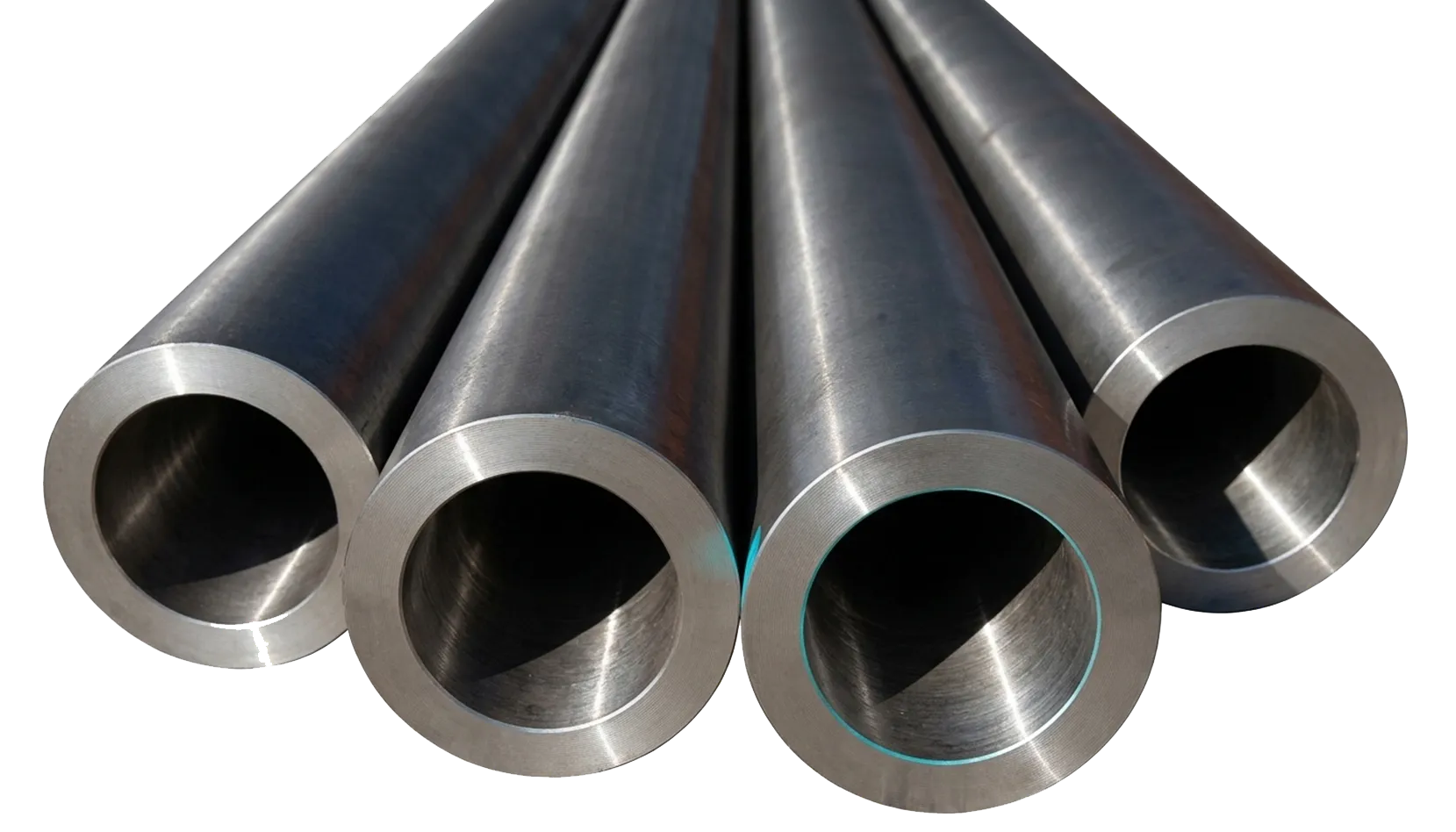

Seamless P22 pipe is specifically covered under the ASTM A335 specification for ferritic alloy steel pipe intended for high-temperature service.
The P22 range can be specified in different forms and end preparations.
Pipe forms:
End finishes:
Square and rectangular configurations can be specified for requirements using P22 square pipe or P22 alloy steel rectangular pipe rather than conventional round piping.
P22 procurement can involve testing beyond the standard mechanical and chemical verification, particularly where the project specification includes IBR, sour-service or hydrogen-service requirements.
The additional testing options supplied for P22 include:
For an enquiry involving these tests, the required testing should be identified together with the grade, size, schedule and quantity so the quotation corresponds to the actual inspection scope.

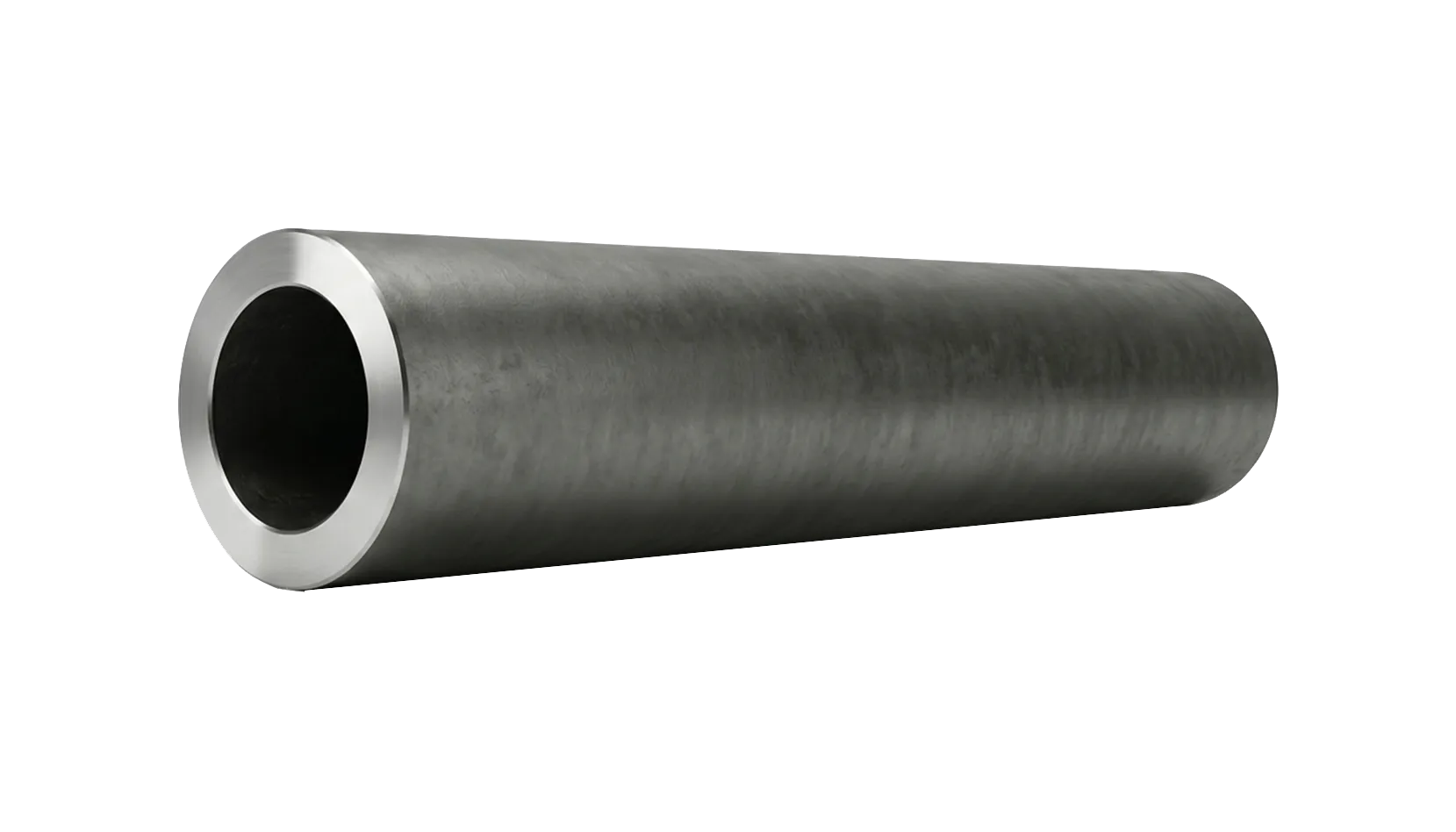

The P22 grade is selected for piping requirements involving elevated temperatures and alloy steel construction.
The combination of chromium and molybdenum makes P22 distinct from lower-alloy carbon steel piping when the project specification calls for a Cr-Mo alloy steel grade.
Ganpat Metal manufactures and supplies ASTM A335 P22 Pipes in India from 1/2" NB to 36" NB, with 3–12 mm wall thickness listed in the supplied product range.
Buyers can specify:
This level of specification helps the quotation reflect the actual P22 pipe configuration instead of treating all P22 pipes as the same product.
Ganpat Metal supports ASTM A335 P22 pipe requirements for domestic and international industrial projects. Export quotations can be prepared according to the required grade, dimensions, quantity and documentation.
India
Brazil
New Zealand
Australia
Bangladesh
Malaysia
UAE
Saudi Arabia
Oman
Egypt
Spain
Russia
Kazakhstan
For alloy steel pipe procurement, the correct combination of material grade, dimensions, schedule and end configuration is essential.
Ganpat Metal can assist with enquiries covering:
Contact the sales team with your pipe specification to check availability, pricing and supply options.
Send the following details with your enquiry:
| Requirement | Details to Provide |
|---|---|
| Grade | ASTM A335 P22 / SA335 P22 |
| Size | NB / NPS |
| Schedule | SCH 5, 10, 40, 80, 80S, XS, 160, XXS or required schedule |
| Wall Thickness | Required thickness in mm |
| Pipe Type | Seamless, ERW, Welded or Fabricated |
| Length | Standard, Double Random or Cut Length |
| End | Plain, Beveled or Threaded |
| Form | Round, Square, Rectangular or Hydraulic |
| Testing | IBR, NACE, HIC, SSC or H2 Service |
| Quantity | Required pipe quantity |
| Material Origin | European, Japanese, Russian, Korean, US or Indian |
